购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

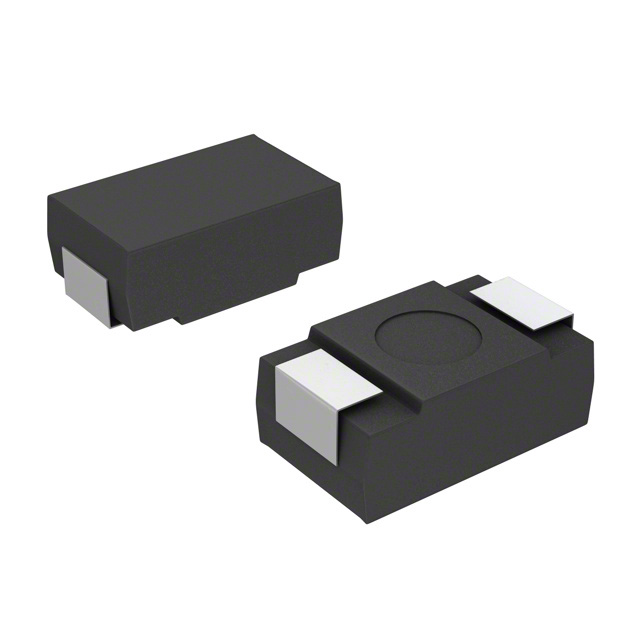

ESRD271M02XRCAP ALUM POLY 270UF 20% 2V SMD |
3,061 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ESRD2R2M16RCAP ALUM POLY 2.2UF 20% 16V SMD |
4,212 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 2.2 µF | ±20% | 16 V | 110mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD330M06RCAP ALUM POLY 33UF 20% 6.3V SMD |
2,876 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 6.3 V | 28mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD330M08R-FCAP ALUM POLY 33UF 20% 8V SMD |
4,747 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 8 V | 18mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD470M06BCAP ALUM POLY 47UF 20% 6.3V SMD |
2,108 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD4R7M16RCAP ALUM POLY 4.7UF 20% 16V SMD |
3,299 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 4.7 µF | ±20% | 16 V | 80mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD680M06XRCAP ALUM POLY 68UF 20% 6.3V SMD |
1,170 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD680M08RCAP ALUM POLY 68UF 20% 8V SMD |
2,955 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 8 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD6R8M16RCAP ALUM POLY 6.8UF 20% 16V SMD |
2,266 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 16 V | 70mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD8R2M08RCAP ALUM POLY 8.2UF 20% 8V SMD |
1,465 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 8.2 µF | ±20% | 8 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

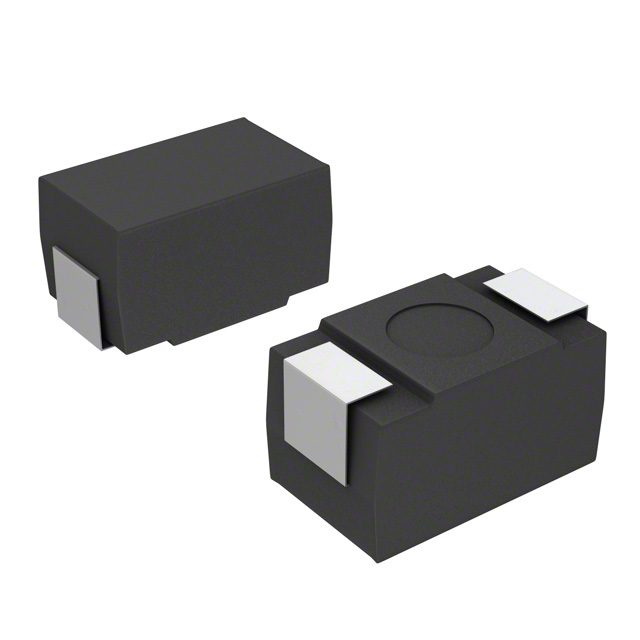

ESRE101M08BCAP ALUM POLY 100UF 20% 8V SMD |
3,529 |
|
规格书 |
ESRE | Bulk | Obsolete | Polymer | 100 µF | ±20% | 8 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE101M08RCAP ALUM POLY 100UF 20% 8V SMD |
4,249 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 8 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE151M06BCAP ALUM POLY 150UF 20% 6.3V SMD |
1,659 |
|
规格书 |
ESRE | Bulk | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE151M06RCAP ALUM POLY 150UF 20% 6.3V SMD |
2,549 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE181M04RCAP ALUM POLY 180UF 20% 4V SMD |
2,769 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE181M06XRCAP ALUM POLY 180UF 20% 6.3V SMD |
1,196 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 10mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE221M04XRCAP ALUM POLY 220UF 20% 4V SMD |
4,675 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 10mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE271M0ERCAP ALUM POLY 270UF 20% 2.5V SMD |
2,786 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE331M02RCAP ALUM POLY 330UF 20% 2V SMD |
2,906 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE331M0EXRCAP ALUM POLY 330UF 20% 2.5V SMD |
1,171 |
|
规格书 |
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 10mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
