购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

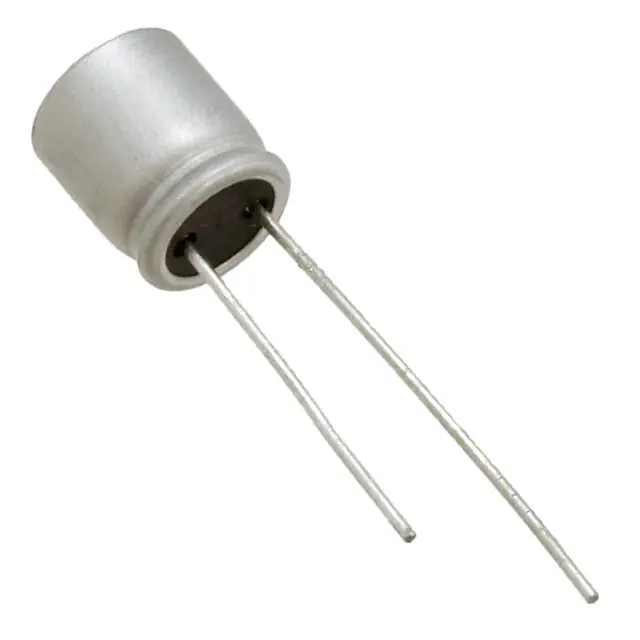

PLX1H220MCL1CAP ALUM POLY 22UF 20% 50V TH |
536 |
|
规格书 |
PLX | Bulk | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

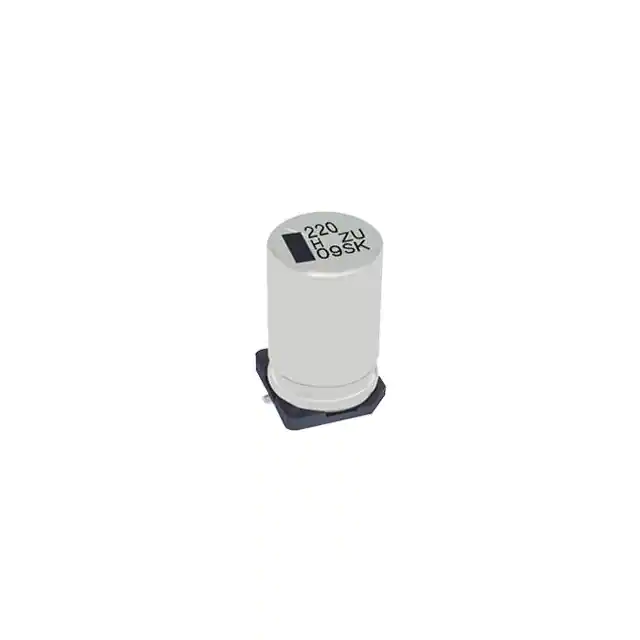

EEH-ZU1J151PCAP ALUMHYB 150UF 20% 63V SMD |
278 |
|
规格书 |
ZU | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 780 mA @ 100 Hz | 5.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

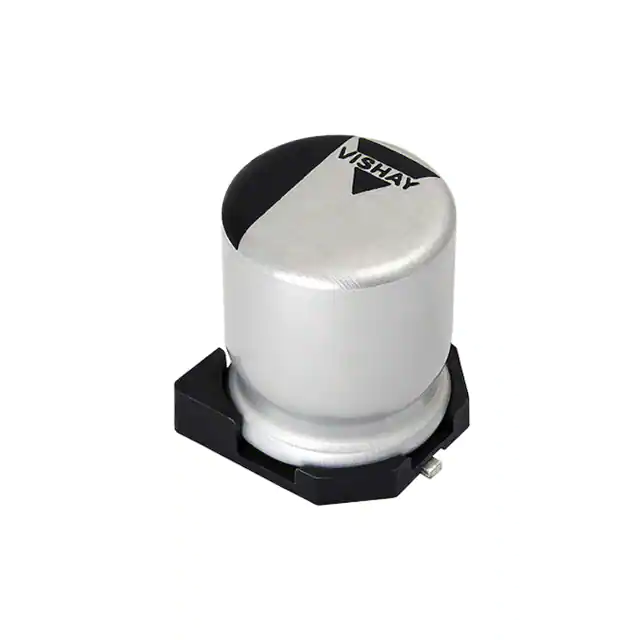

MAL218297802E3CAP ALUM HYBRID 22UF 20% 63V SMD |
17,113 |
|
规格书 |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|
A700D226M016ATE030CAP ALUM POLY 22UF 20% 16V SMD |
251 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

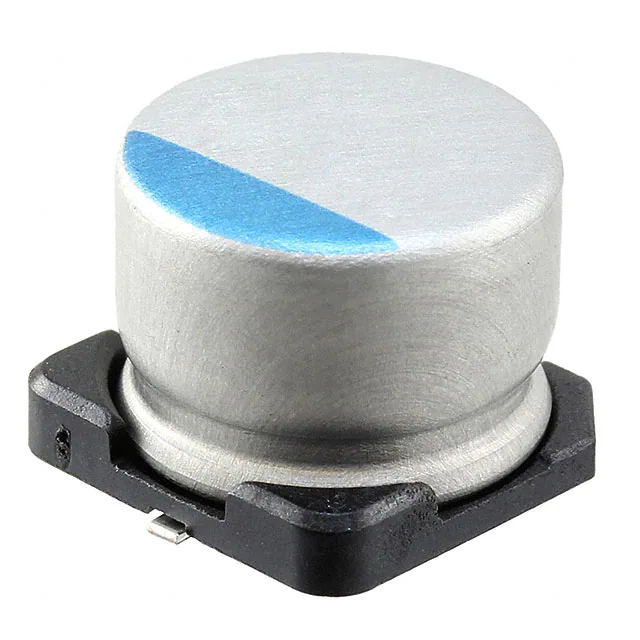

PCR1J560MCL1GSCAP ALUM POLY 56UF 20% 63V SMD |
9,975 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZU1H221PCAP ALUMHYB 220UF 20% 50V SMD |
900 |
|
规格书 |
ZU | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 780 mA @ 100 Hz | 5.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PLX1H220MCL1TDCAP ALUM POLY 22UF 20% 50V TH |
374 |
|
规格书 |
PLX | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEH-ZS1V471VCAP ALUMHYB 470UF 20% 35V SMD |
506 |
|
规格书 |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875075661004CAP ALUM POLY 100UF 20% 35V SMD |
1,364 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZT1E561UVCAP ALUMHYB 560UF 20% 25V SMD |
1,680 |
|
规格书 |
ZTU | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZS1J151VCAP ALUMHYB 150UF 20% 63V SMD |
299 |
|
规格书 |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXH200ARA820MJ80GCAP ALUM POLY 82UF 20% 20V SMD |
618 |
|
规格书 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 20 V | 45mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

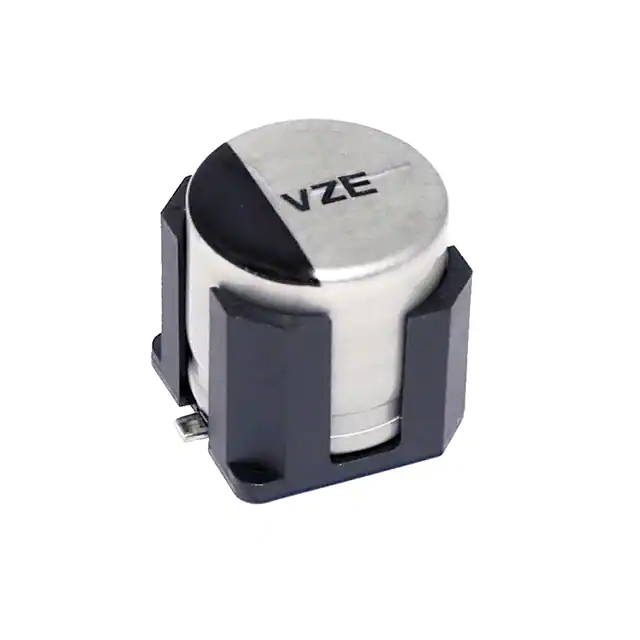

EEH-ZE1V271VCAP ALUMHYB 270UF 20% 35V SMD |
1,480 |
|
规格书 |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HZA686M035X16T-FCAP ALUM HYBRID 68UF 20% 35V SMD |
9,558 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCV1H470MCL1GSCAP ALUM POLY 47UF 20% 50V SMD |
3,465 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXA630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD |
262 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCH1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD |
1,500 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 35mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.319" (8.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
63SXV39MCAP ALUM POLY 39UF 20% 63V SMD |
185 |
|
规格书 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 46.5 mA @ 120 Hz | 930 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1V151MCL1GSCAP ALUM POLY 150UF 20% 35V SMD |
1,665 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 35 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

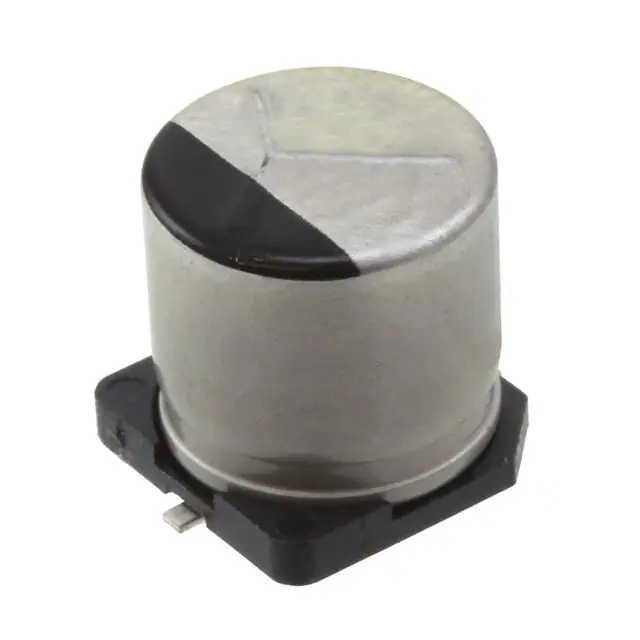

HZA107M050G24T-FCAP ALUMHYB 100UF 20% 50V SMD |
23,855 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
