购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZK1V221UVCAP ALUMHYB 220UF 20% 35V SMD |
916 |
|
规格书 |
ZKU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

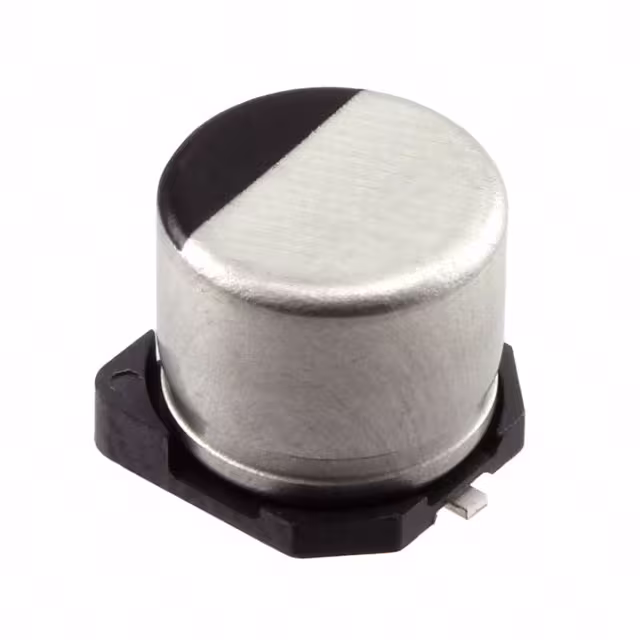

HZA476M035D16T-FCAP ALUM HYBRID 47UF 20% 35V SMD |
3,968 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 130 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A767KS336M1KLAE045CAP ALUM POLY 33UF 20% 80V SMD |
1,712 |
|
规格书 |
A767 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 80 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A768MS107M1HLAV024CAP ALUM POLY 100UF 20% 50V SMD |
7,012 |
|
规格书 |
A768, Anti-Vibration | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 107.5 mA @ 120 Hz | 2.15 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
HHXA500ARA680MHA0GCAP ALUM HYBRID 68UF 20% 50V SMD |
1,530 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
35PHV68M6.3X8CAP ALUM HYBRID 68UF 20% 35V SMD |
3,539 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A768MS107M1JLAV027CAP ALUM POLY 100UF 20% 63V SMD |
3,338 |
|
规格书 |
A768, Anti-Vibration | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 27mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
RNU1H680MDN1PHCAP ALUM POLY 68UF 20% 50V TH |
2,060 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
B40900B7337M000CAP ALUMHYB 300UF 20% 35V SMD |
12,650 |
|
规格书 |
B40900 | Tape & Reel (TR) | Active | Hybrid | 300 µF | ±20% | 35 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
35PHV330M10X12.5CAP ALUMHYB 330UF 20% 35V SMD |
2,670 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 205 mA @ 100 Hz | 4.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A780MS337M1VLAV020CAP ALUMHYB 330UF 20% 35V SMD |
2,367 |
|
规格书 |
A780, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 880 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |

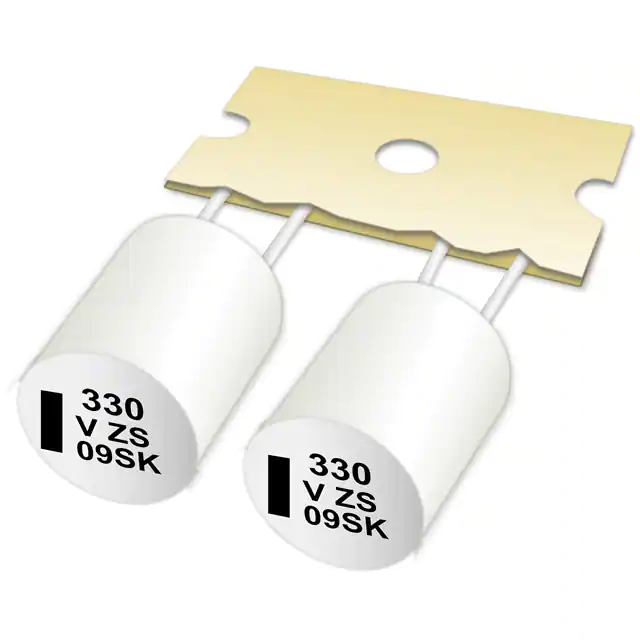

-Photo-Taped-Size-G16.jpg)
|
EEH-AZS1V471BCAP ALUM HYBRID 470UF 20% 35V TH |
1,043 |
|
规格书 |
ZS | Cut Tape (CT) | Active | Hybrid | 470 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 100 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
EEH-ZE1V271PCAP ALUMHYB 270UF 20% 35V SMD |
8,840 |
|
规格书 |
ZE | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875115652007CAP ALUM POLY 100UF 20% 35V SMD |
627 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-AZS1H221BCAP ALUM HYBRID 220UF 20% 50V TH |
134 |
|
规格书 |
ZS | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 50 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 555 mA @ 100 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
80SXV27MXCAP ALUM POLY 27UF 20% 80V SMD |
977 |
|
规格书 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 80 V | 55mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 33 mA @ 120 Hz | 660 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
50SVPK120MCAP ALUM POLY 120UF 20% 50V SMD |
616 |
|
规格书 |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

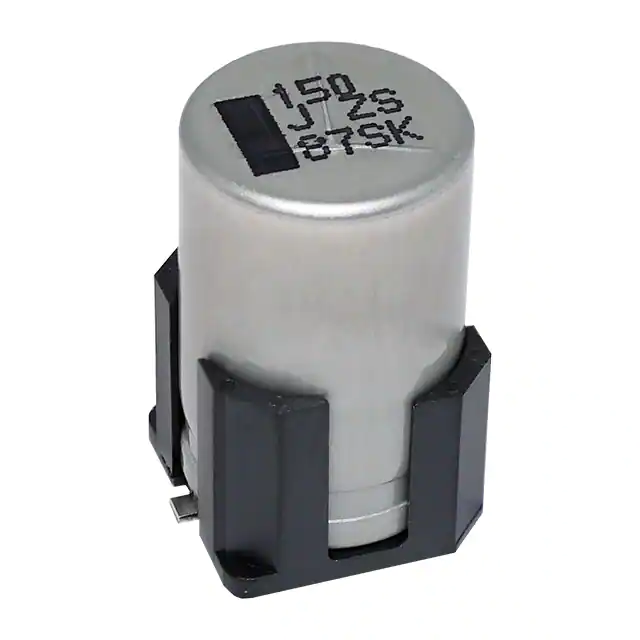

EEH-ZS1H151VCAP ALUMHYB 150UF 20% 50V SMD |
976 |
|
规格书 |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 50 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 480 mA @ 100 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZS1E471VCAP ALUMHYB 470UF 20% 25V SMD |
843 |
|
规格书 |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
107AVG063MFBJCAP ALUM POLY 100UF 20% 63V TH |
22,780 |
|
规格书 |
AVG | Bulk | Active | Polymer | 100 µF | ±20% | 63 V | 32mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
