购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLV1J220MCL1CAP ALUM POLY 22UF 20% 63V TH |
1,032 |
|
规格书 |
PLV | Bulk | Discontinued at Digi-Key | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

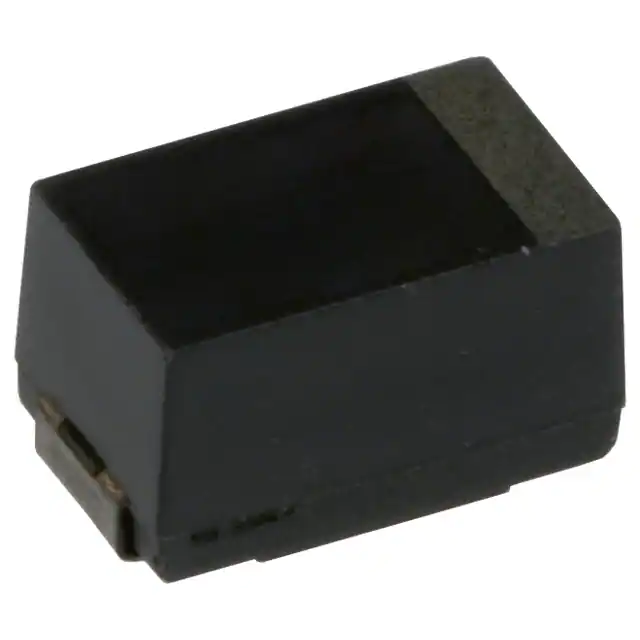

EEF-SE0D471ERCAP ALUM POLY 470UF 20% 2V SMD |
4,408 |
|
- |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-UD0D331LECAP ALUM POLY 330UF 20% 2V SMD |
1,943 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UD0D471LECAP ALUM POLY 470UF 20% 2V SMD |
3,490 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UD0E221LECAP ALUM POLY 220UF 20% 2.5V SMD |
2,625 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SWZ330MR09CAP ALUM POLY 330UF 20% 2.5V SMD |
1,653 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SWZ330MR05CAP ALUM POLY 330UF 20% 2V SMD |
3,391 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
4SW270MCAP ALUM POLY 270UF 20% 4V SMD |
2,995 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
4SWZ220MR09CAP ALUM POLY 220UF 20% 4V SMD |
3,805 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870135774002CAP ALUM POLY 27UF 20% 50V TH |
1,039 |
|
规格书 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 27 µF | ±20% | 50 V | 32mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEF-HE0E271RCAP ALUM POLY 270UF 20% 2.5V SMD |
4,779 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875075755002CAP ALUM POLY 22UF 20% 50V SMD |
3,781 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
476XMPL025MG19CAP ALUM POLY 47UF 20% 25V SMD |
3,567 |
|
规格书 |
XMPL | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 2.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
EEF-UE0E331RCAP ALUM POLY 330UF 20% 2.5V SMD |
1,493 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UE0G221RCAP ALUM POLY 220UF 20% 4V SMD |
3,766 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UE0J181RCAP ALUM POLY 180UF 20% 6.3V SMD |
1,349 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HE0J151RCAP ALUM POLY 150UF 20% 6.3V SMD |
2,447 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HE0K101RCAP ALUM POLY 100UF 20% 8V SMD |
3,188 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 8 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HE0D331RCAP ALUM POLY 330UF 20% 2V SMD |
3,601 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UE0D471RCAP ALUM POLY 470UF 20% 2V SMD |
3,442 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
