购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APSG250ELL181MH08SCAP ALUM POLY 180UF 20% 25V TH |
404 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 180 µF | ±20% | 25 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
A768MS477M1ELAE017CAP ALUM POLY 470UF 20% 25V SMD |
331 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 25 V | 17mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A768MS227M1GLAE022CAP ALUM POLY 220UF 20% 40V SMD |
291 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 40 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-CX0J151XRCAP ALUM POLY 150UF 20% 6.3V SMD |
8,519 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

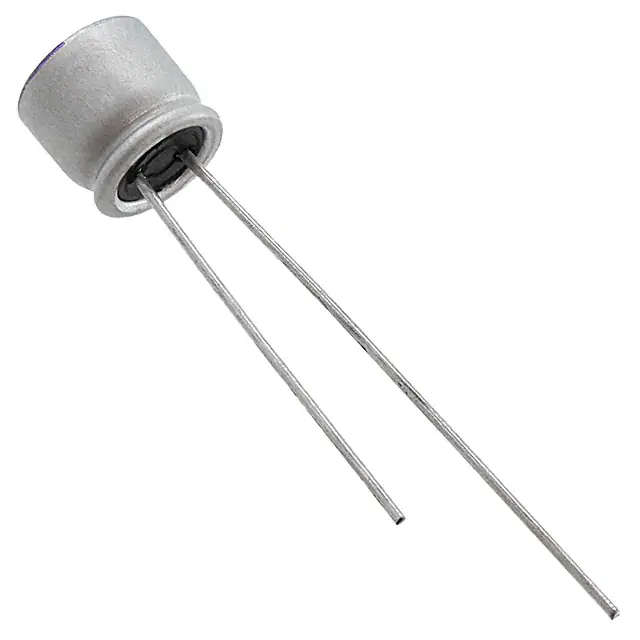

35SEPF22M+TSSCAP ALUM POLY 22UF 20% 35V TH |
4,574 |
|
规格书 |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
A765KN277M1CLAE016CAP ALUM POLY 270UF 20% 16V SMD |
4,160 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 194.5 mA @ 120 Hz | 3.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A768KS476M1JLAE031CAP ALUM POLY 47UF 20% 63V SMD |
3,220 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 31mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

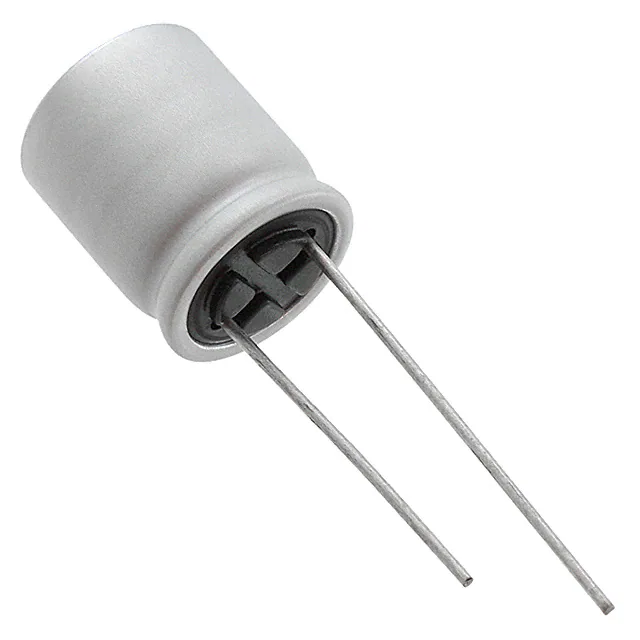

16SEP330M+TCAP ALUM POLY 330UF 20% 16V TH |
2,396 |
|
规格书 |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 236 mA @ 120 Hz | 4.72 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

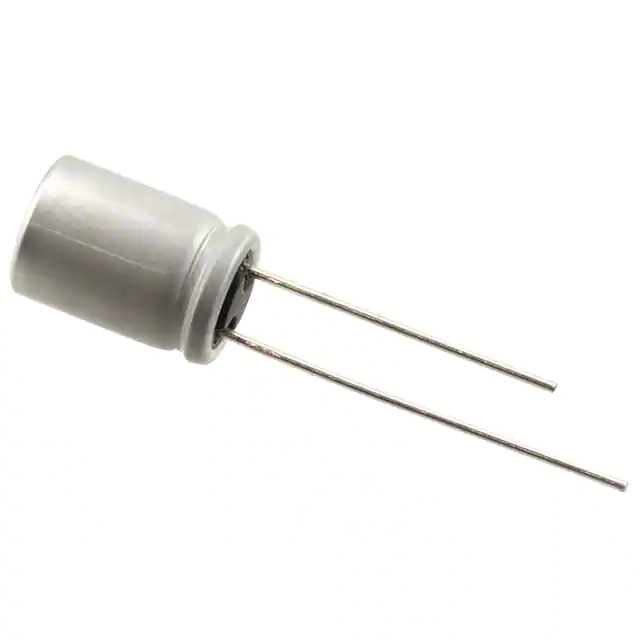

PLF1C271MDO1CAP ALUM POLY 270UF 20% 16V TH |
2,304 |
|
规格书 |
PLF | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
6SEPC470MW+TSSCAP ALUM POLY 470UF 20% 6.3V TH |
2,152 |
|
规格书 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXJ160ARA221MF61GCAP ALUM POLY 220UF 20% 16V SMD |
379 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RL80J102MDN1KXCAP ALUM POLY 1000UF 20% 6.3V TH |
3,808 |
|
规格书 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
RNS1E100MDS1JTCAP ALUM POLY 10UF 20% 25V TH |
1,963 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 25 V | 63mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
RNS1E100MDS1CAP ALUM POLY 10UF 20% 25V TH |
854 |
|
规格书 |
FPCAP, RNS | Bulk | Active | Polymer | 10 µF | ±20% | 25 V | 63mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
875075355004CAP ALUM POLY 330UF 20% 16V SMD |
529 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEF-CX0G151RCAP ALUM POLY 150UF 20% 4V SMD |
11,799 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A768MS477M1ELAS017CAP ALUM POLY 470UF 20% 25V SMD |
6,405 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 25 V | 17mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A750MS108M1CAAE013CAP ALUM POLY 1000UF 20% 16V TH |
3,180 |
|
规格书 |
A750 | Bulk | Active | Polymer | 1000 µF | ±20% | 16 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A750KW687M1EAAE016CAP ALUM POLY 680UF 20% 25V TH |
2,580 |
|
规格书 |
A750 | Bulk | Active | Polymer | 680 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 232.5 mA @ 120 Hz | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole |
|

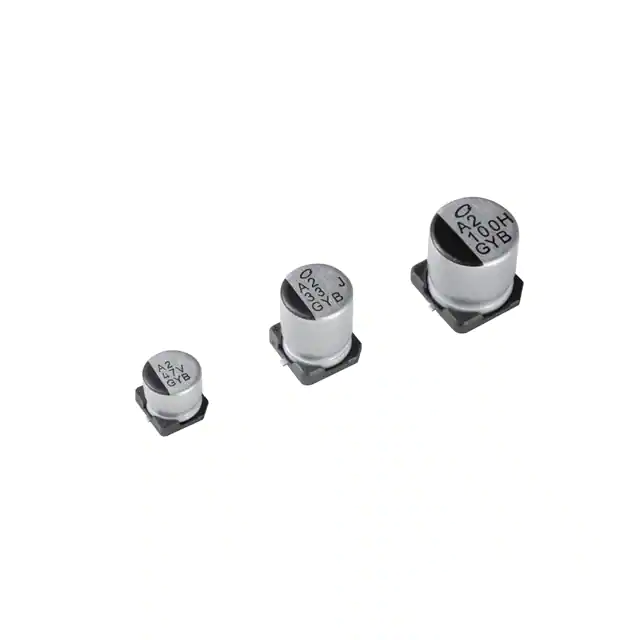

GYB1E101MCQ1GSCAP ALUMHYB 100UF 20% 25V SMD |
1,554 |
|
规格书 |
GYB | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
