购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXC250ARA101MF80GCAP ALUMHYB 100UF 20% 25V SMD |
1,886 |
|
规格书 |
HXC | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEH-ZC1J100PCAP ALUM HYBRID 10UF 20% 63V SMD |
18,924 |
|
规格书 |
ZC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 70 mA @ 100 Hz | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCK0J221MCO1GSCAP ALUM POLY 220UF 20% 6.3V SMD |
18,674 |
|
规格书 |
PCK | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A759BQ106M1HAAE105CAP ALUM POLY 10UF 20% 50V TH |
7,856 |
|
规格书 |
A759 | Bulk | Active | Polymer | 10 µF | ±20% | 50 V | 105mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 19 mA @ 120 Hz | 380 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
A750MS108M1AAAE013CAP ALUM POLY 1000UF 20% 10V TH |
2,698 |
|
规格书 |
A750 | Bulk | Active | Polymer | 1000 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXJ160ARA271MF80GCAP ALUM POLY 270UF 20% 16V SMD |
1,197 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 13mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 223 mA @ 120 Hz | 4.46 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RPA0609101M025BCAP ALUM POLY 100UF 20% 25V TH |
20,213 |
|
规格书 |
RPA | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
10SVP120MCAP ALUM POLY 120UF 20% 10V SMD |
11,130 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128 mA @ 120 Hz | 2.56 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
20SVPA10MCAP ALUM POLY 10UF 20% 20V SMD |
2,952 |
|
规格书 |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A765MN687M1ALAE013CAP ALUM POLY 680UF 20% 10V SMD |
1,920 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 241 mA @ 120 Hz | 4.82 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXJ350ARA221MHA0GCAP ALUMHYB 220UF 20% 35V SMD |
1,694 |
|
规格书 |
HXJ | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A759BQ336M1VAAE075CAP ALUM POLY 33UF 20% 35V TH |
7,875 |
|
规格书 |
A759 | Bulk | Active | Polymer | 33 µF | ±20% | 35 V | 75mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 34.5 mA @ 120 Hz | 690 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole |
|

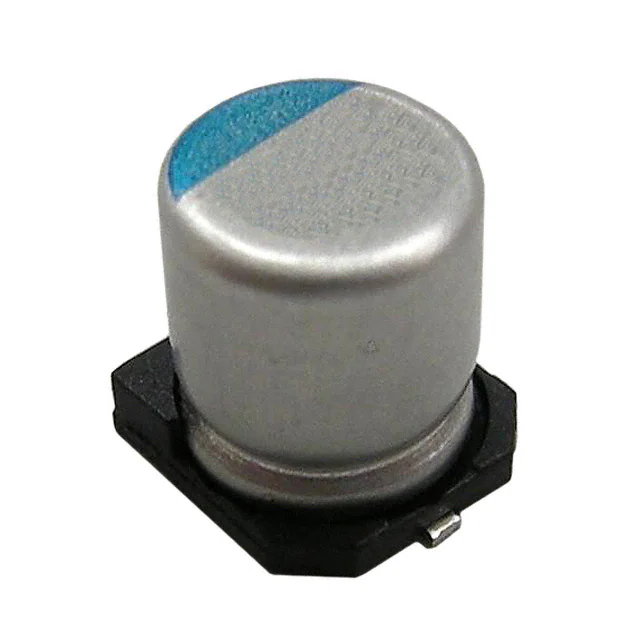

APXK160ARA101MF61GCAP ALUM POLY 100UF 20% 16V SMD |
2,939 |
|
规格书 |
NPCAP™-PXK | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.49 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A768MS277M1GLAE022CAP ALUM POLY 270UF 20% 40V SMD |
6,212 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 40 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXD350ARA470MF61GCAP ALUM HYBRID 47UF 20% 35V SMD |
3,799 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

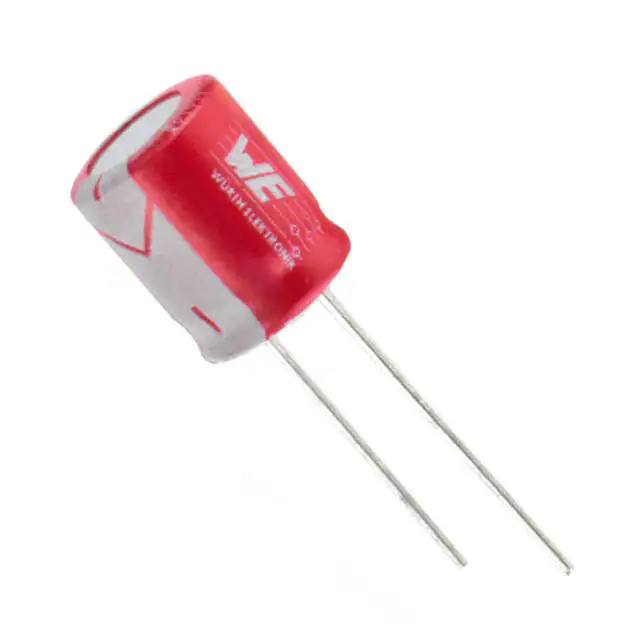

870025574005CAP ALUM POLY 100UF 20% 25V TH |
3,305 |
|
规格书 |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
A768KS337M1ELAS019CAP ALUM POLY 330UF 20% 25V SMD |
1,921 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 19mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 116.25 mA @ 120 Hz | 2.325 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNE1C101MDS1CAP ALUM POLY 100UF 20% 16V TH |
2,925 |
|
规格书 |
FPCAP, RNE | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole |
|

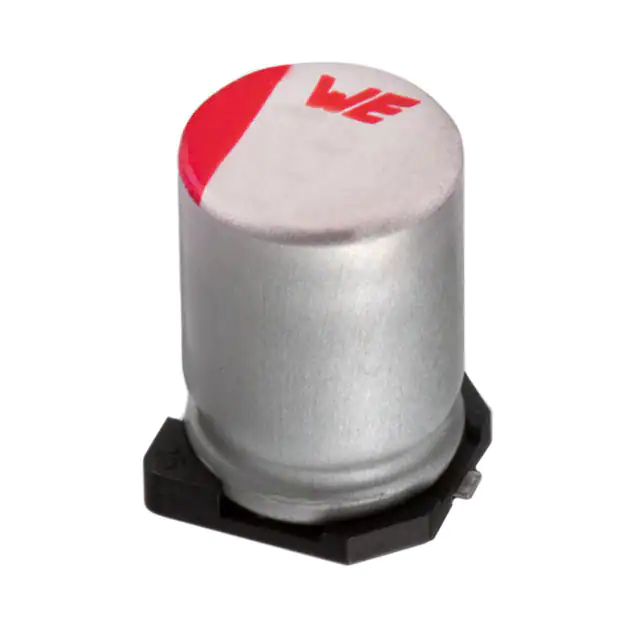

875075355002CAP ALUM POLY 220UF 20% 16V SMD |
2,297 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

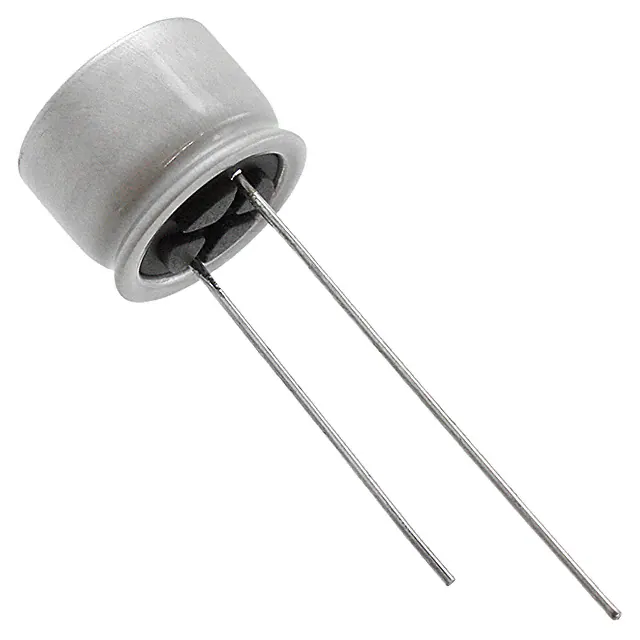

20SEP100MXCAP ALUM POLY 100UF 20% 20V TH |
1,529 |
|
规格书 |
OS-CON™, SEP | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
