购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6A-121WP05-002AC/DC WALL MOUNT ADAPTER 5V 10W ENG ELECTRIC CO., LTD |
3,805 |
|
规格书 |
* | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | ITE (Commercial), A/V | Level VI, ErP | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 60.2" (1.53m) | Multi-Blade | - | 2.44" L x 1.59" W x 1.22" H (62.0mm x 40.5mm x 31.0mm) | AS/NZS, BSMI, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
|
6A-161WP05-116AC/DC WALL MOUNT ADAPTER 5V ENG ELECTRIC CO., LTD |
1,241 |
|
规格书 |
6A-161WP05 (15W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.6A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|
6A-242WP24-030AC/DC WALL MOUNT ADAPTER 24V 24W ENG ELECTRIC CO., LTD |
2,793 |
|
规格书 |
6A-242WP24 (24W) | Book | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BSMI, CB, CCC, CSA, FCC, IEC, RCM, UKCA, UL |
|

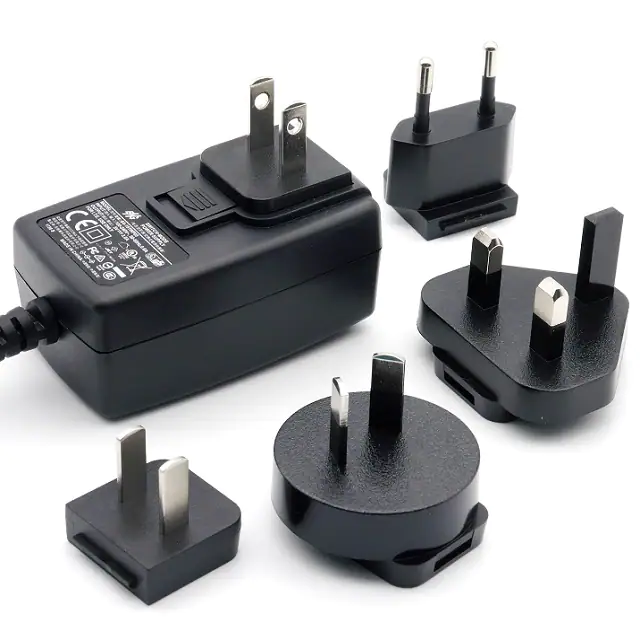

6A-181WP05-127AC/DC WALL MOUNT ADAPTER 5V ENG ELECTRIC CO., LTD |
2,994 |
|
规格书 |
6A-181WP05 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 3A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|
6A-181WP12-187AC/DC WALL MOUNT ADAPTER 12V ENG ELECTRIC CO., LTD |
1,865 |
|
规格书 |
6A-181WP12 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.5A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|
6A-242WP12-067AC/DC WALL MOUNT ADAPTER 12V ENG ELECTRIC CO., LTD |
4,392 |
|
规格书 |
6A-242WP12 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 2A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|

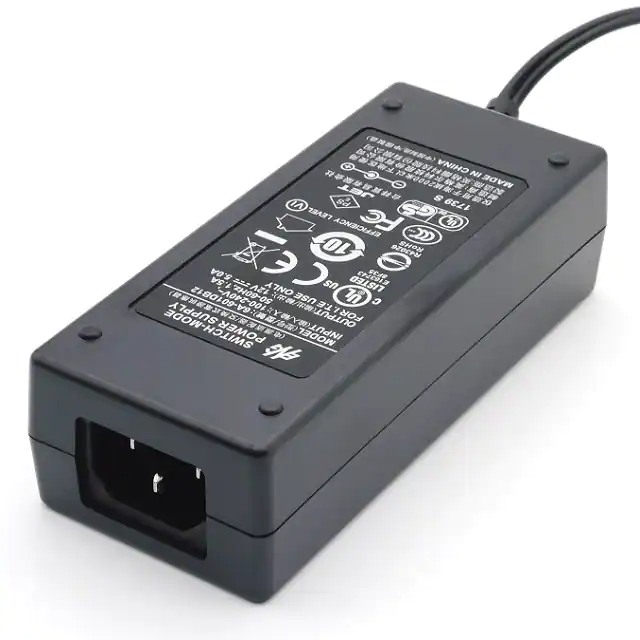

6A-401DB12-063AC/DC DESKTOP ADAPTER 12V ENG ELECTRIC CO., LTD |
1,028 |
|
规格书 |
6A-401DB12 (40W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|

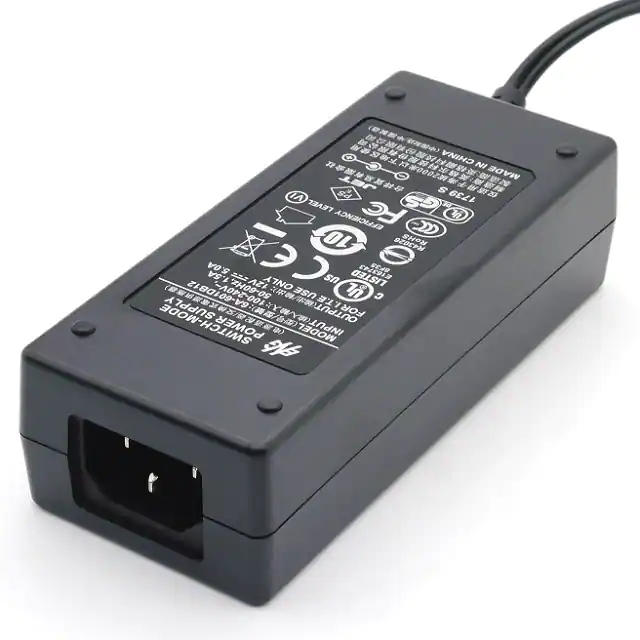

6A-601DB12-087AC/DC DESKTOP ADAPTER 12V ENG ELECTRIC CO., LTD |
100 |
|
规格书 |
6A-601DB12 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | - | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.76" L x 2.05" W x 1.30" H (121.0mm x 52.0mm x 33.0mm) | AS/NZS,BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|

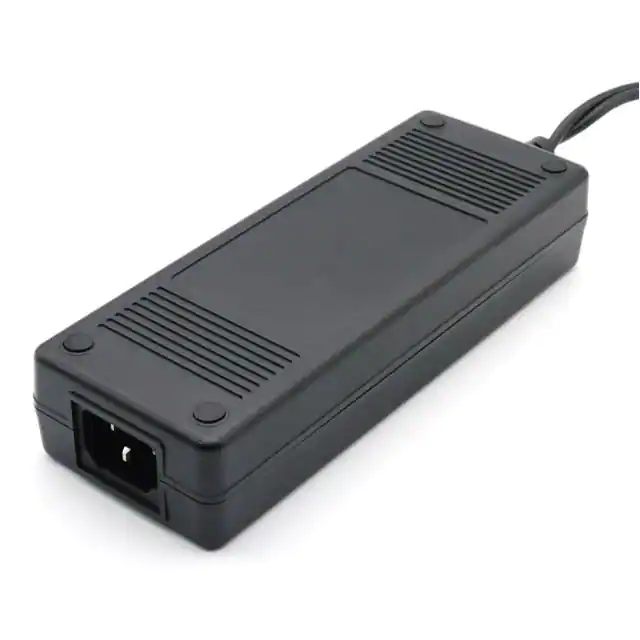

6A-901DB24-028AC/DC DESKTOP ADAPTER 24V 90W ENG ELECTRIC CO., LTD |
1,096 |
|
规格书 |
6A-901DB24 (90W) | Book | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 6.57" L x 2.44" W x 1.34" H (167.0mm x 62.0mm x 34.0mm) | AS/NZS, CB, CSA, FCC, IEC, PSE, UKCA, UL |
|

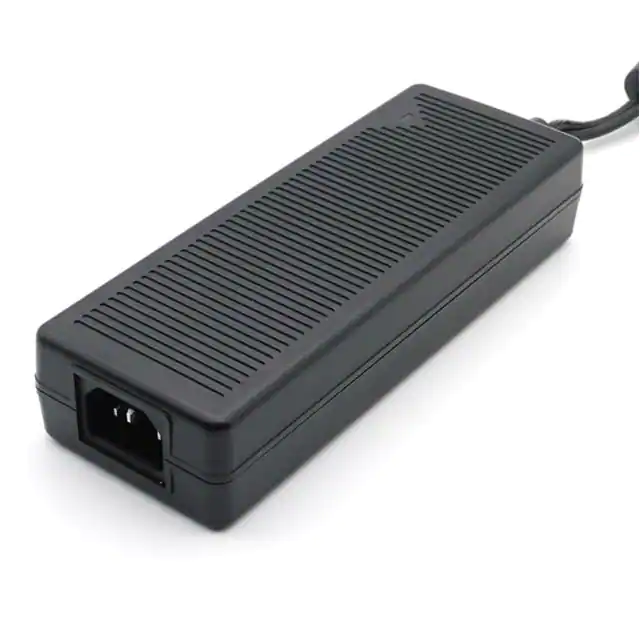

6A-901DB12-028AC/DC DESKTOP ADAPTER 12V 90W ENG ELECTRIC CO., LTD |
3,596 |
|
规格书 |
6A-901DB12 (90W) | Book | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 6.57" L x 2.44" W x 1.34" H (167.0mm x 62.0mm x 34.0mm) | AS/NZS, CB, CSA, FCC, IEC, PSE, UKCA, UL |
