购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6A-104WP5B-052AC/DC WALL MOUNT ADAPTER 5V 10W ENG ELECTRIC CO., LTD |
187 |
|
规格书 |
6A-104WP5B (10W) | Book | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade | - | 2.80" L x 1.61" W x 1.24" H (71.0mm x 41.0mm x 31.5mm) | AS/NZS, BSMI, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
|
6A-061WP12-002AC/DC DSKTP/WALL MT ADAPT 12V 6W ENG ELECTRIC CO., LTD |
217 |
|
规格书 |
6A-061WP12 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL |
|
6A-061WP05-167AC/DC WALL MOUNT ADAPTER 5V ENG ELECTRIC CO., LTD |
101 |
|
规格书 |
6A-061WP05 (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.44" L x 1.59" W x 1.22" H (62.0mm x 40.5mm x 31.0mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
|
6A-2I1DB24-000AC/DC DESKTOP ADAPTER 24V 288W ENG ELECTRIC CO., LTD |
4,875 |
|
规格书 |
- | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 12A | 288 W | 210mW (Max) | - | Household Appliances, ITE (Commercial) | Level VI, ErP | 0°C ~ 40°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 8.98" L x 3.86" W x 2.13" H (228.0mm x 98.0mm x 54.0mm) | CB, CE, FCC, UKCA, UL |
|
6A-151DA05-026AC/DC DESKTOP ADAPTER 5V 13W ENG ELECTRIC CO., LTD |
160 |
|
规格书 |
6A-151DA05 (15W) | Book | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 2.5A | 13 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 2.95" L x 1.87" W x 1.08" H (75.0mm x 47.5mm x 27.3mm) | AS/NZS, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
|
|
6A-061WP24-002AC/DC DSKTP/WALL MT ADAPT 24V 6W ENG ELECTRIC CO., LTD |
1,034 |
|
规格书 |
6A-061WP24 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 250mA | 6 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL |
|
|
6A-061WP18-002ACDC DSKTP/WALL MT ADP 18V 5.94W ENG ELECTRIC CO., LTD |
4,241 |
|
规格书 |
6A-061WP18 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 330mA | 5.94 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL |
|
|
6A-061WP06-002ACDC DSKTP/WALL ADPT 5.59V 5.59W ENG ELECTRIC CO., LTD |
4,782 |
|
规格书 |
6A-061WP06 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5.59V | 1A | 5.59 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL |
|

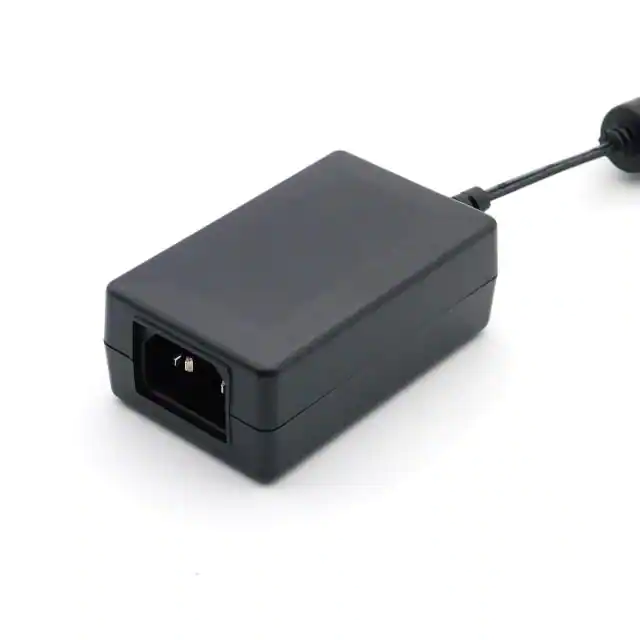

6A-201DB05-066AC/DC DESKTOP ADAPTER 5V 20W ENG ELECTRIC CO., LTD |
4,088 |
|
规格书 |
6A-201DB05 (20W) | Book | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.15" L x 1.97" W x 1.22" H (80.0mm x 50.0mm x 31.0mm) | AS/NZS, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
|

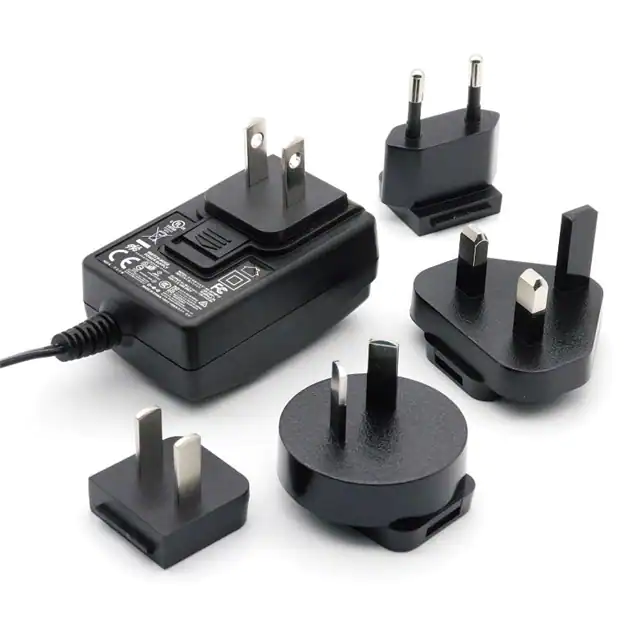

6A-121WP12-060AC/DC WALL MOUNT ADAPTER 12V 12W ENG ELECTRIC CO., LTD |
2,956 |
|
规格书 |
6A-121WP12 (12W) | Book | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 60.2" (1.53m) | Multi-Blade | - | 2.44" L x 1.59" W x 1.22" H (62.0mm x 40.5mm x 31.0mm) | AS/NZS, BSMI, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
