购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DT150Z-14AC/DC DESKTOP ADAPTER 48V 144W |
2,739 |
|
规格书 |
DT150Z (150W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 3A | 144 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 3.90" W x 2.05" H (180.0mm x 99.0mm x 52.0mm) | - |
|
L6R250D-120-C6AC/DC DESKTOP ADAPTER 12V 240W |
4,240 |
|
规格书 |
Tri-Mag®, L6R250D (250W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 20A | 240 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Rectangular, 6 Position | 47.2" (1.20m) | IEC 320-C6 | - | 8.03" L x 3.70" W x 1.71" H (204.0mm x 94.0mm x 43.6mm) | CE, cULus, EN, FCC, TUV |
|
AHE220PS12AC/DC DESKTOP ADAPTER 12V 180W |
3,985 |
|
规格书 |
AHE220 (220W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 15A | 180 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Power DIN, 4 Pin | 37.4" (0.95m) | IEC 320-C14 | - | 7.76" L x 3.46" W x 1.73" H (197.0mm x 88.0mm x 44.0mm) | CB |
|
|
AHE220PS24AC/DC DESKTOP ADAPTER 24V 220W |
2,203 |
|
规格书 |
AHE220 (220W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 9.16A | 220 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Rectangular, 6 Position | 59" (1.50m) | IEC 320-C14 | - | 7.76" L x 3.46" W x 1.73" H (197.0mm x 88.0mm x 44.0mm) | CB |
|
|
DT150Z-6AC/DC DESKTOP ADAPTER 24V 144W |
2,063 |
|
规格书 |
DT150Z (150W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 6A | 144 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 3.90" W x 2.05" H (180.0mm x 99.0mm x 52.0mm) | - |
|
|
DT099Z-8AC/DC DESKTOP ADAPTER 15V 90W |
2,707 |
|
规格书 |
Tri-Mag®, DT-Z (100W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | - | - | ITE (Commercial) | - | -20°C ~ 60°C | Power DIN, 4 Pin | 72" (1.83m) | IEC 320-C14 | - | 6.57" L x 3.03" W x 1.85" H (167.0mm x 77.0mm x 47.0mm) | - |
|
|
AEH130PS05AC/DC DESKTOP ADAPTER 5V 115W |
2,346 |
|
规格书 |
AEH130 (130W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 23A | 115 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.71" L x 3.46" W x 1.99" H (196.0mm x 88.0mm x 50.5mm) | CE, cUL |
|
|
AEH130PS12AC/DC DESKTOP ADAPTER 12V 130W |
2,607 |
|
规格书 |
AEH130 (130W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 10.8A | 130 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.71" L x 3.46" W x 1.99" H (196.0mm x 88.0mm x 50.5mm) | CE, cUL |
|
|
AEH130PS24AC/DC DESKTOP ADAPTER 24V 130W |
4,998 |
|
规格书 |
AEH130 (130W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5.4A | 130 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.71" L x 3.46" W x 1.99" H (196.0mm x 88.0mm x 50.5mm) | CE, cUL |
|
|
AEH130PS28AC/DC DESKTOP ADAPTER 28V 129W |
4,172 |
|
规格书 |
AEH130 (130W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 4.6A | 129 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.71" L x 3.46" W x 1.99" H (196.0mm x 88.0mm x 50.5mm) | CE, cUL |
|
|
AEH130PS48AC/DC DESKTOP ADAPTER 48V 130W |
4,866 |
|
规格书 |
AEH130 (130W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.7A | 130 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.71" L x 3.46" W x 1.99" H (196.0mm x 88.0mm x 50.5mm) | CE, cUL |
|
|
PSV-FMAD-U-65USB1C-1.0SFM65W STANDARD USB-C "PLUG & PLAY" |
2,813 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PSV-FMAD-U-70USB1C1A-1.0SFM70W MACBOOK COMPATIBLE STANDARD |
2,467 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
AQM200PS24C2SINGLE O/P AC-DC PSU MEDICAL 200 |
2,899 |
|
规格书 |
AQM200 (200W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 8.3A | 200 W | 150mW | - | Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C18 | - | 6.56" L x 2.13" W x 1.30" H (166.6mm x 54.1mm x 33.0mm) | CB, CE, CSA, TUV, UKCA, UL |
|
|
AQM200PS48C2SINGLE O/P AC-DC PSU MEDICAL 200 |
2,093 |
|
规格书 |
AQM200 (200W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 4.2A | 202 W | 150mW | - | Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C18 | - | 6.56" L x 2.13" W x 1.30" H (166.6mm x 54.1mm x 33.0mm) | CB, CE, CSA, TUV, UKCA, UL |
|
|
AQM200PS19C2SINGLE O/P AC-DC PSU MEDICAL 200 |
4,769 |
|
规格书 |
AQM200 (200W) | Tube | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 19V | 10.6A | 201 W | 150mW | - | Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C18 | - | 6.56" L x 2.13" W x 1.30" H (166.6mm x 54.1mm x 33.0mm) | CB, CE, CSA, TUV, UKCA, UL |
|
|
DT099Z-6AC/DC DESKTOP ADAPTER 24V 101W |
4,567 |
|
规格书 |
Tri-Mag®, DT-Z (100W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 4.2A | 101 W | - | - | ITE (Commercial) | - | -20°C ~ 60°C | Power DIN, 4 Pin | 72" (1.83m) | IEC 320-C14 | - | 6.57" L x 3.03" W x 1.85" H (167.0mm x 77.0mm x 47.0mm) | - |
|

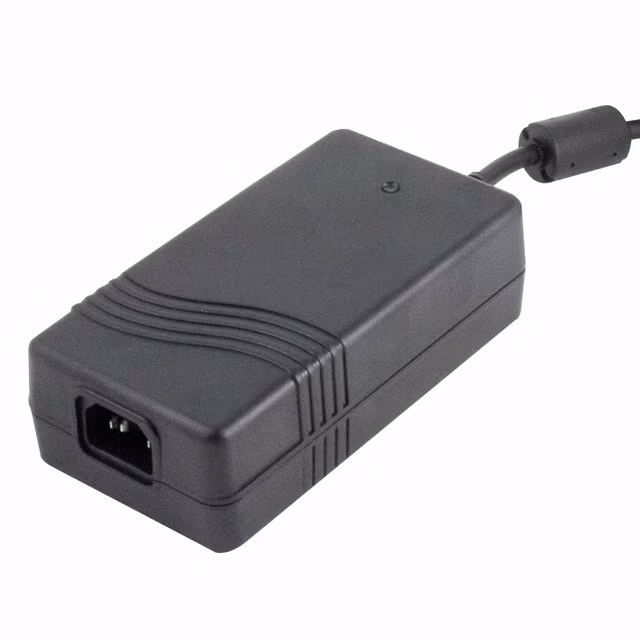

AEL80US12AC/DC DESKTOP ADAPTER 12V 80W |
3,529 |
|
规格书 |
AEL80 (80W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 6.66A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level IV | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
AEL80US24AC/DC DESKTOP ADAPTER 24V 80W |
2,944 |
|
规格书 |
AEL80 (80W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.33A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
DT150Z-5AC/DC DESKTOP ADAPTER 12V 135W |
3,134 |
|
规格书 |
DT150Z (150W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 11.25A | 135 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 3.90" W x 2.05" H (180.0mm x 99.0mm x 52.0mm) | - |
