购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

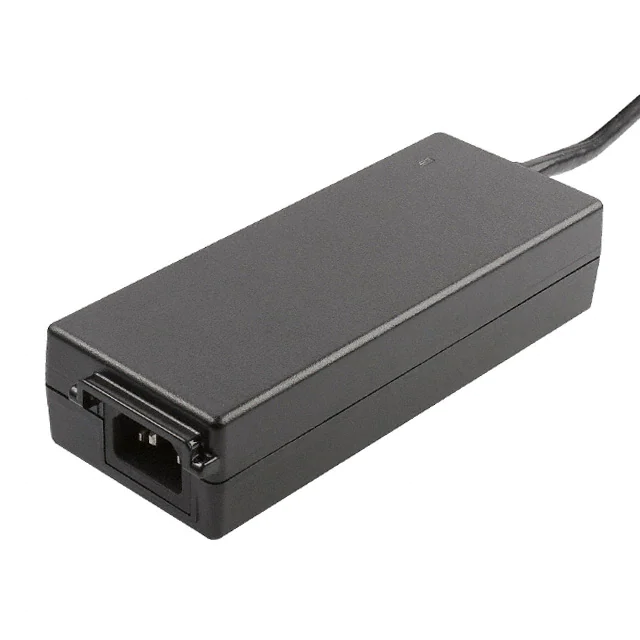

AHM180PS12AC/DC DESKTOP ADAPTER 12V 165W |
3,421 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 13.5A | 165 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|

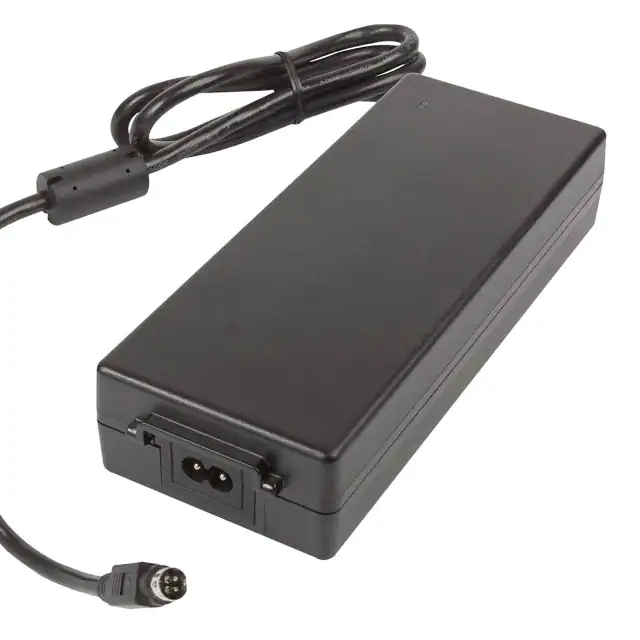

AHM180PS12C2-8AC/DC DESKTOP ADAPTER 12V 165W |
1,097 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 13.5A | 165 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS15AC/DC DESKTOP ADAPTER 15V 180W |
2,225 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 12A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS15C2-8AC/DC DESKTOP ADAPTER 15V 180W |
2,833 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 12A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS19AC/DC DESKTOP ADAPTER 19V 180W |
2,491 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 19V | 9.47A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS19C2-8AC/DC DESKTOP ADAPTER 19V 180W |
2,955 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 19V | 9.47A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS24AC/DC DESKTOP ADAPTER 24V 180W |
2,305 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 7.5A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS24C2-8AC/DC DESKTOP ADAPTER 24V 180W |
1,661 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 7.5A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS48AC/DC DESKTOP ADAPTER 48V 180W |
4,391 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 3.75A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM180PS48C2-8AC/DC DESKTOP ADAPTER 48V 180W |
3,971 |
|
规格书 |
AHM180 (180W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 3.75A | 180 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) | CB, TUV, UL |
|
301-9007-01AC/DC DESKTOP ADAPTER 24V 72W |
1,684 |
|
规格书 |
- | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3A | 72 W | - | - | - | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. | 72" (1.83m) | IEC 320-C14 | - | 5.57" L x 2.99" W x 1.69" H (141.5mm x 76.0mm x 43.0mm) | CE, cUL, TUV, UL |
|
|
TE150A4803N01AC/DC DESKTOP ADAPTER 48V 154W |
3,506 |
|
规格书 |
TE150 (150W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 3.2A | 154 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C8 | - | 6.85" L x 2.83" W x 1.50" H (174.0mm x 71.9mm x 38.1mm) | CE, cULus, D-Mark |
|
PCM50US12AC/DC DESKTOP ADAPTER 12V 45W |
3,480 |
|
规格书 |
PCM50 (50W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.75A | 45 W | - | - | Medical | 80% | 0°C ~ 70°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CCC |
|
PMP250-13AC/DC DESKTOP ADAPTER 15V 220W |
1,883 |
|
规格书 |
PMP250 (250W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 14.67A | 220 W | 150mW | - | Medical | Level VI | -20°C ~ 60°C | Rectangular, 8 Position | 36" (0.91m) | IEC 320-C14 | - | 8.03" L x 3.45" W x 1.63" H (204.0mm x 87.6mm x 41.5mm) | - |
|
AEL80US15AC/DC DESKTOP ADAPTER 15V 81W |
1,974 |
|
规格书 |
AEL80 (80W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 5.38A | 81 W | 500mW (Max) | - | ITE (Commercial) | Level IV | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
AEL80US18AC/DC DESKTOP ADAPTER 18V 80W |
3,224 |
|
规格书 |
AEL80 (80W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 4.44A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
AEL80US30AC/DC DESKTOP ADAPTER 30V 80W |
1,196 |
|
规格书 |
AEL80 (80W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 2.66A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
AEL80US36AC/DC DESKTOP ADAPTER 36V 80W |
3,310 |
|
规格书 |
AEL80 (80W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 2.22A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
AEL80US48AC/DC DESKTOP ADAPTER 48V 80W |
3,963 |
|
规格书 |
AEL80 (80W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.66A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | -20°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) | CB, TUV, UL |
|
|
PMP250-18AC/DC DESKTOP ADAPTER 48V 250W |
4,885 |
|
规格书 |
PMP250 (250W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 5.21A | 250 W | 150mW | - | Medical | Level VI | -20°C ~ 60°C | Rectangular, 6 Position | 36" (0.91m) | IEC 320-C14 | - | 8.03" L x 3.45" W x 1.63" H (204.0mm x 87.6mm x 41.5mm) | - |
