购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSA15A-480P6AC/DC WALL MOUNT ADAPTER 48V 15W Phihong USA |
189 |
|
规格书 |
PSA15A (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 310mA | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.97" W x 1.23" H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSC15A-075AC/DC WALL MNT ADAPTER 7.5V 15W Phihong USA |
101 |
|
规格书 |
PSC15A (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.97" W x 1.23" H (71.5mm x 50.0mm x 31.2mm) | cULus |
|

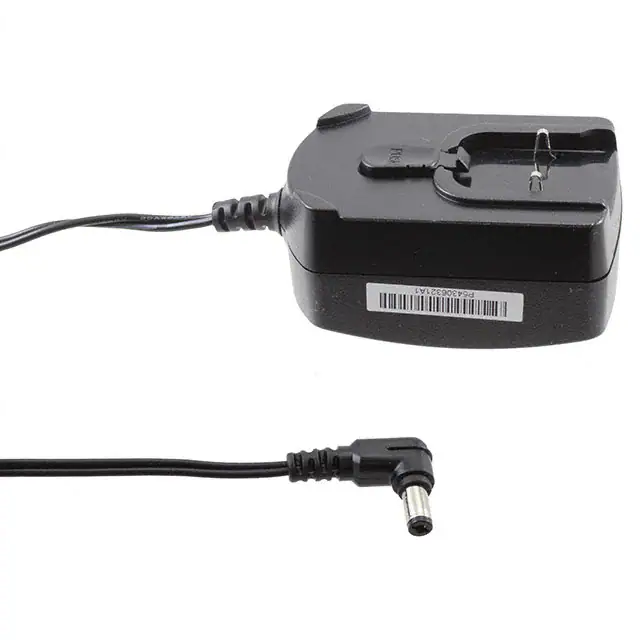

PSAC12R-120-R-CR1AC/DC WALL MOUNT ADAPTER 12V 12W Phihong USA |
328 |
|
规格书 |
PSAC12R (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 1 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.3mm) | AS/NZS, cULus, IEC, PSE |
|

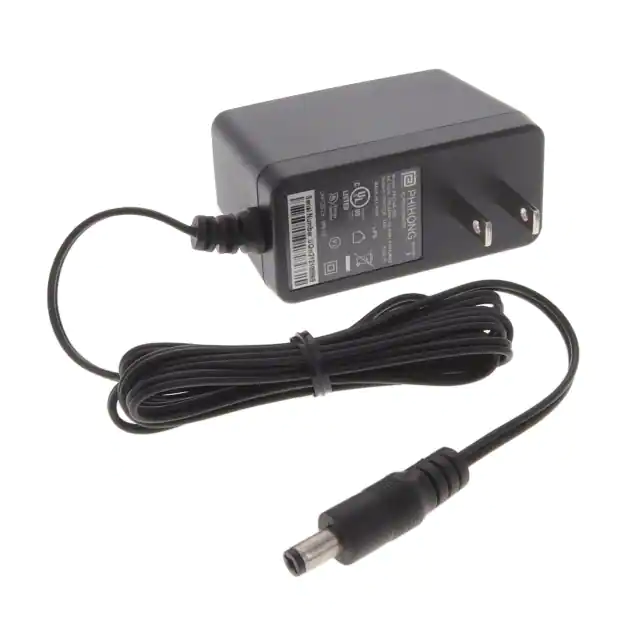

PPL24A-120AC/DC WALL MOUNT ADAPTER 12V 24W Phihong USA |
386 |
|
规格书 |
PPL24A (24W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.72" H (72.0mm x 34.0mm x 69.0mm) | CE, cULus |
|

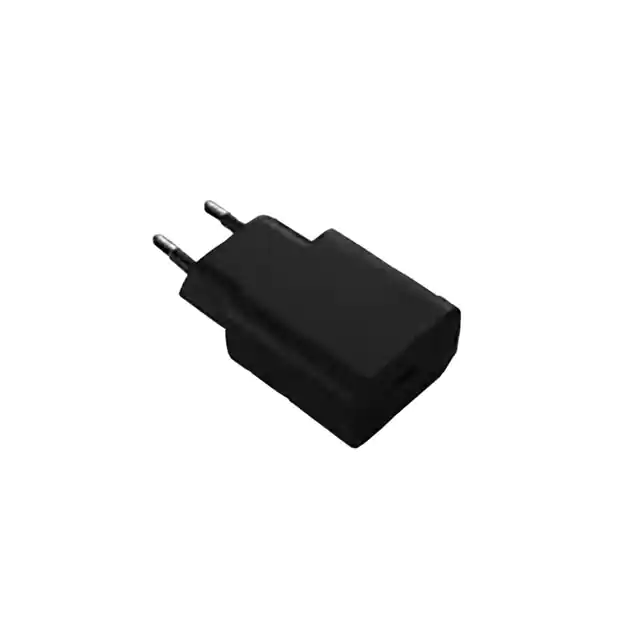

AQ15E-050AAC/DC WALL MOUNT ADAPTER 5V 15W Phihong USA |
210 |
|
规格书 |
AQ15 (15W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB C Receptacle | - | CEE 7/16 | - | 2.28" L x 1.57" W x 0.92" H (58.0mm x 40.0mm x 23.3mm) | CB, CE, cULus |
|
PSC15R-090AC/DC WALL MOUNT ADAPTER 9V 15W Phihong USA |
1,505 |
|
规格书 |
PSC15R (15W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.67A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CB, CE, cULus |
|
AQ15E-050A-HAC/DC WALL MOUNT ADAPTER 5V 15W Phihong USA |
179 |
|
规格书 |
AQ15 (15W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Receptacle | - | CEE 7/16 | - | 2.28" L x 1.57" W x 0.92" H (58.0mm x 40.0mm x 23.3mm) | CE, cULus, FCC |
|

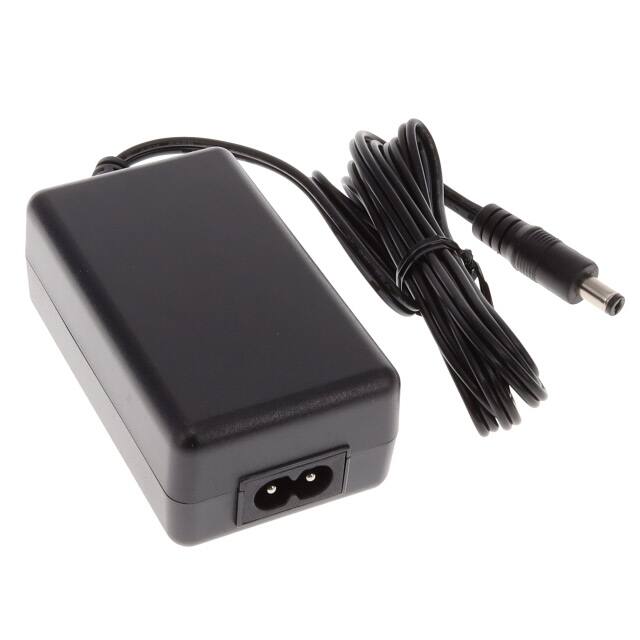

PPL18W-050L6AC/DC DESKTOP ADAPTER 5V 15W Phihong USA |
170 |
|
规格书 |
PPL18W-L6 (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | cULus, IEC |
|
PSAA30R-120-R-CR1AC/DC WALL MOUNT ADAPTER 12V 30W Phihong USA |
946 |
|
规格书 |
PSAA30R (30W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 3.26" L x 2.17" W x 1.54" H (82.7mm x 55.0mm x 39.1mm) | AS/NZS, cULus, IEC |
|

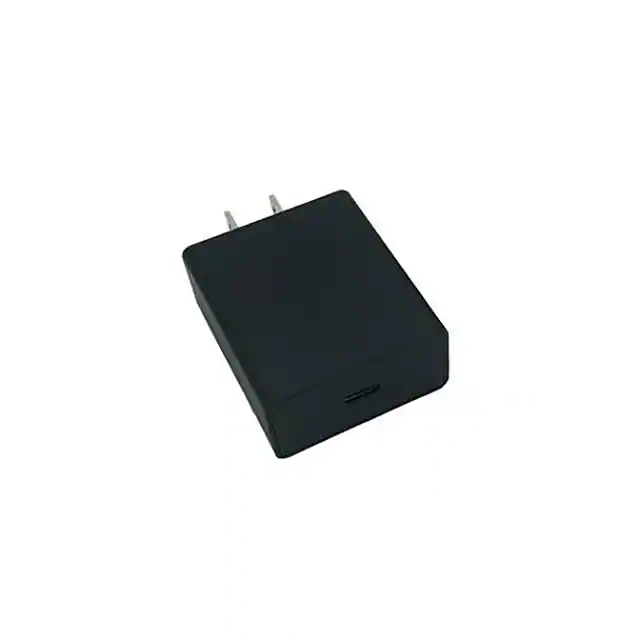

AQ27A-59CFA-HAC/DC WALL ADP 5V/9V/12V/15V 27W Phihong USA |
2,524 |
|
规格书 |
AQ27 (27W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V, 12V, 15V | 3A, 3A, 2.25A, 1.8A | 27 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 1.81" L x 0.91" W x 2.13" H (46.0mm x 23.0mm x 54.0mm) | cULus |
