购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSC15R-075AC/DC WALL MNT ADAPTER 7.5V 15W Phihong USA |
312 |
|
规格书 |
PSC15R (15W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CB, CE, cULus |
|

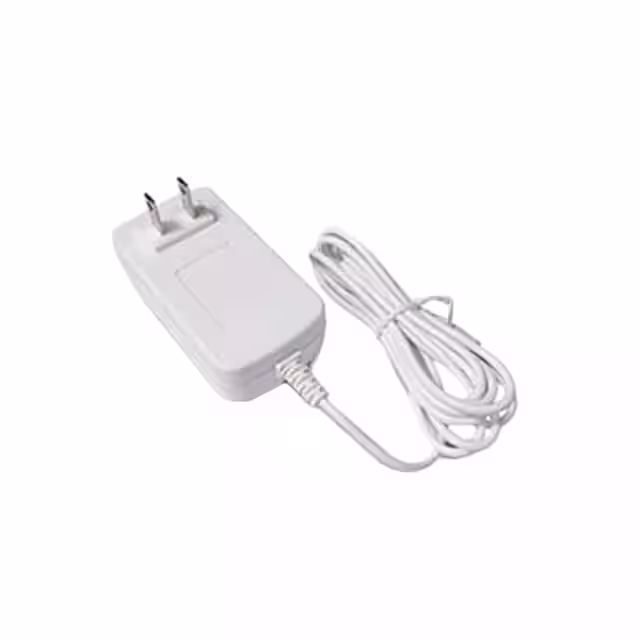

PMA18A-120PHWAC/DC WALL MOUNT ADAPTER 12V 18W Phihong USA |
311 |
|
规格书 |
- | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.5A | 18 W | - | Positive Center | Medical | Level VI | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.23" L x 1.70" W x 1.18" H (82.0mm x 43.2mm x 30.0mm) | cULus |
|
AQ27A-59A-HAC/DC WALL MNT ADAPTER 5V/9V 27W Phihong USA |
900 |
|
规格书 |
AQ27 (27W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V | 3A, 3A | 27 W | 75mW | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Receptacle | - | NEMA 1-15P | - | 2.13" L x 1.81" W x 0.91" H (54.0mm x 46.0mm x 23.0mm) | CE, cULus |
|
PPL36W-240AC/DC DESKTOP ADAPTER 24V 36W Phihong USA |
490 |
|
规格书 |
PPL36W (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | cULus, IEC |
|
PPL36W-050AC/DC DESKTOP ADAPTER 5V 25W Phihong USA |
127 |
|
规格书 |
PPL36W (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | cULus, IEC |
|

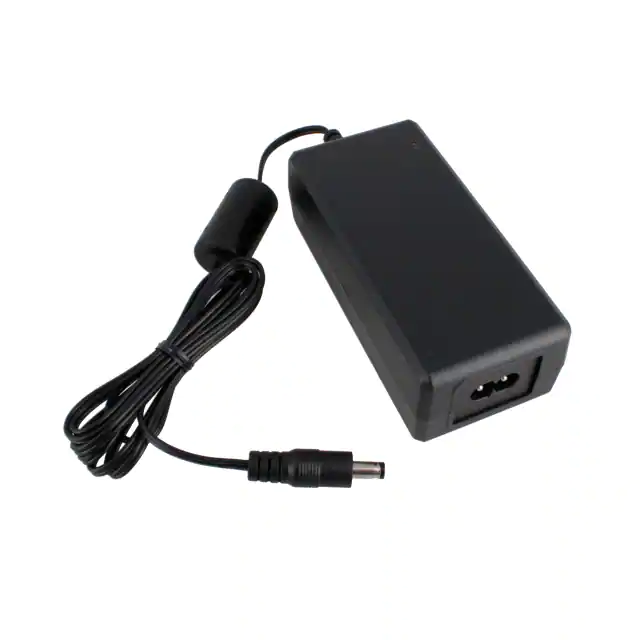

PPL65W-480AC/DC DESKTOP ADAPTER 48V 65W Phihong USA |
425 |
|
规格书 |
PPL65W (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.36A | 65 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | cULus, IEC |
|
PPL65U-480AC/DC DESKTOP ADAPTER 48V 65W Phihong USA |
123 |
|
规格书 |
PPL65U (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.36A | 65 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | cULus, IEC |
|
PPL65W-180AC/DC DESKTOP ADAPTER 18V 65W Phihong USA |
105 |
|
规格书 |
PPL65W (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | cULus, IEC |
|
PPL90U-480AC/DC DESKTOP ADAPTER 48V 90W Phihong USA |
143 |
|
规格书 |
PPL90U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | cULus, IEC |
-R.jpg)
|
AA10S-050A(M)-RAC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
129 |
|
规格书 |
AA10S (10W) | Box | Active | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | AS 3112 | - | 2.80" L x 1.34" W x 2.17" H (71.2mm x 34.0mm x 55.0mm) | AS/NZS |
