购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

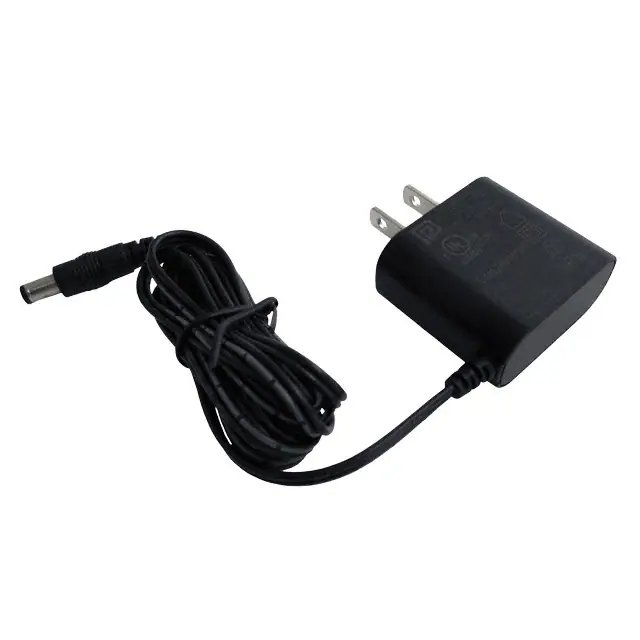

PSM03A-100-RAC/DC WALL MNT ADAPTER 10V 2.8W Phihong USA |
2,046 |
|
规格书 |
PSM03 (2.75W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 10V | 275mA | 2.8 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 0.83" L x 1.69" W x 1.65" H (21.0mm x 43.0mm x 42.0mm) | cULus |
|
|
PSM03A-050-RAC/DC WALL MOUNT ADAPTER 5V 3W Phihong USA |
3,140 |
|
规格书 |
PSM03 (2.75W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 550mA | 3 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 0.83" L x 1.69" W x 1.65" H (21.0mm x 43.0mm x 42.0mm) | cULus |
|
PSA15R-075PV-RPAAC/DC WALL MNT ADAPTER 7.5V 15W Phihong USA |
4,563 |
|
规格书 |
PSA15R (15W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, C-Tick, cULus, GS |
|

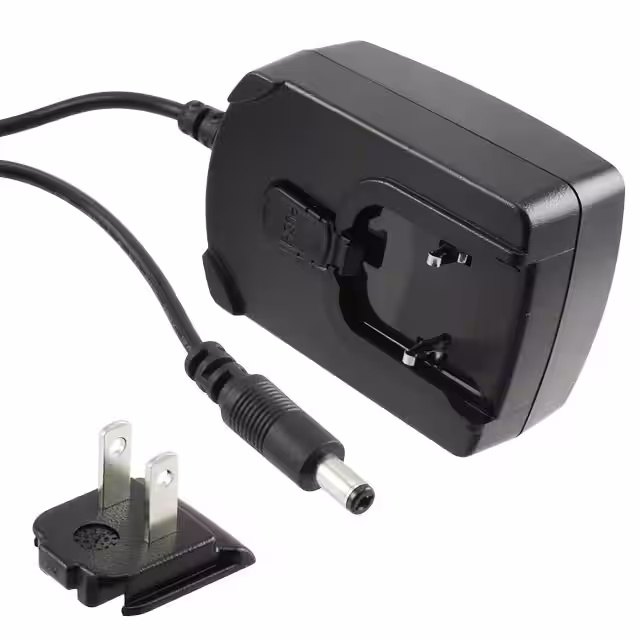

PSC12R-050-RPAAC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
4,397 |
|
规格书 |
PSC12R (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|

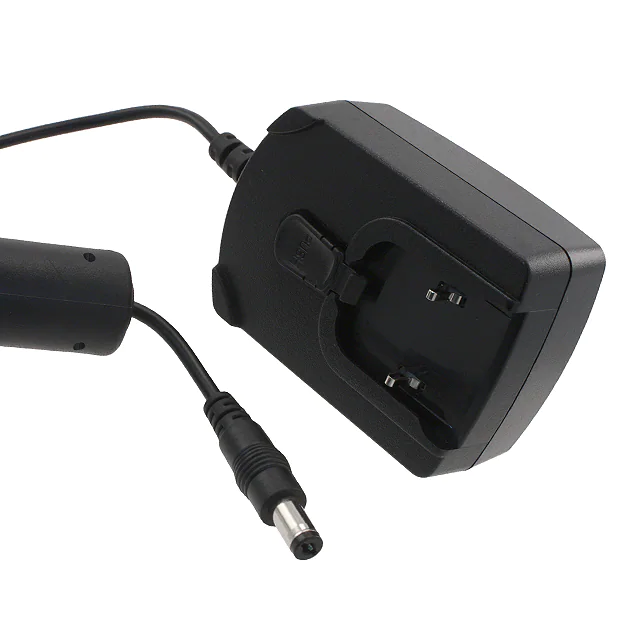

PSAA20R-120-RPAAC/DC WALL MOUNT ADAPTER 12V 20W Phihong USA |
3,296 |
|
规格书 |
PSAA20R (20W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.67A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
PSB05R-050Q(A)-RPAAC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
2,291 |
|
- |
PSB05R (5W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 45°C | USB A Receptacle | - | Multi-Blade | - | 2.96" L x 1.81" W x 1.25" H (75.3mm x 46.0mm x 31.7mm) | CE, C-Tick, cULus, GS |
|

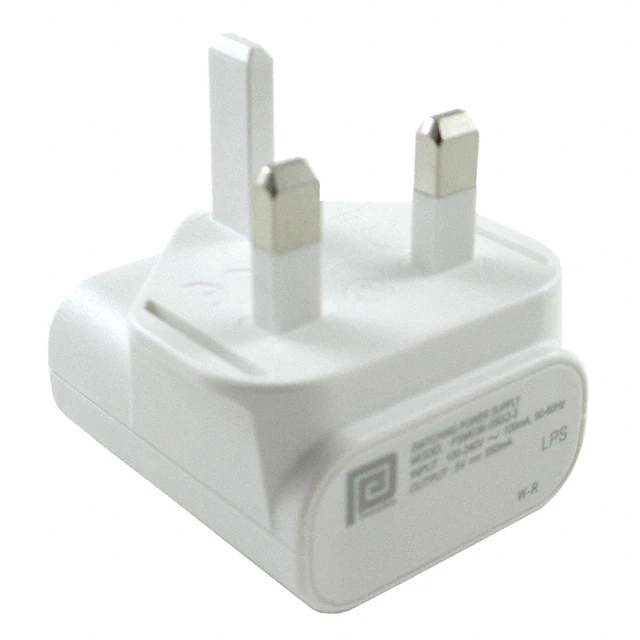

PSM03K-050Q-3W-RAC/DC WALL MOUNT ADAPTER 5V 2.8W Phihong USA |
1,172 |
|
规格书 |
PSM03 (2.75W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 550mA | 2.8 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -10°C ~ 40°C | USB A Receptacle | - | BS 1363 | - | 1.93" L x 1.92" W x 0.87" H (49.0mm x 48.8mm x 21.0mm) | IEC |
|
PSA05A-050QA-HAC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,771 |
|
规格书 |
PSA05A (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 0.83" L x 1.69" W x 1.65" H (21.0mm x 43.0mm x 42.0mm) | cULus |
|
PSA05E-050QA-HAC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
2,328 |
|
规格书 |
PSA05E (5W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 30mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | CEE 7/16 | - | 0.87" L x 1.65" W x 2.37" H (21.0mm x 43.0mm x 60.2mm) | IEC |
|

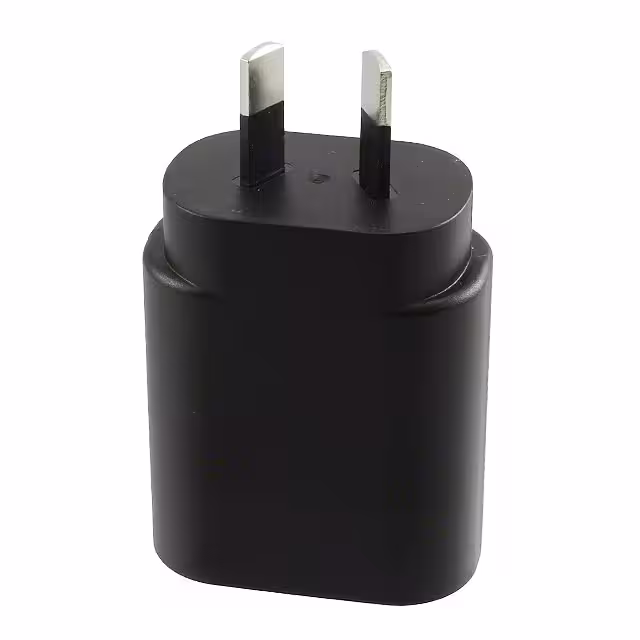

PSA05S-050QA-HAC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,326 |
|
规格书 |
PSA05S (5W) | Box | Obsolete | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | AS 3112 | - | 0.98" L x 1.69" W x 2.09" H (25.0mm x 43.0mm x 53.0mm) | - |
