购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAC60M-560-R-CR5AC/DC DESKTOP ADAPTER 56V 60W Phihong USA |
4,266 |
|
规格书 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.08A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | cULus, IEC |
|

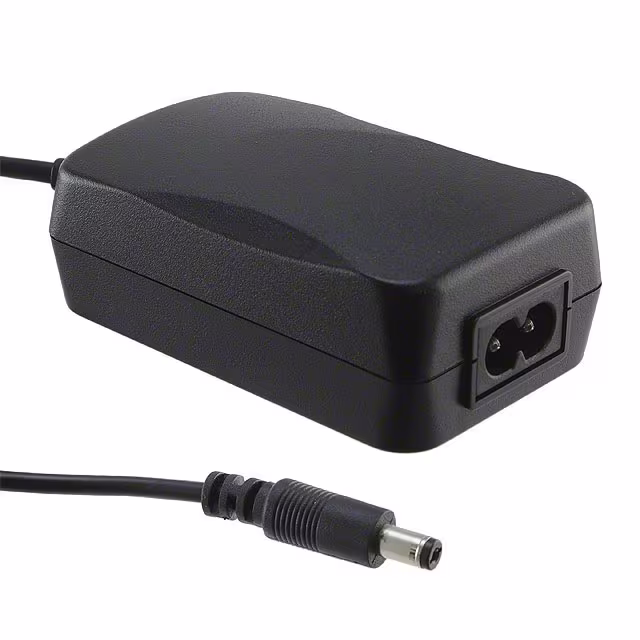

PSAA15W-050VAC/DC DESKTOP ADAPTER 5V 15W Phihong USA |
1,207 |
|
规格书 |
PSAA15W-V (15W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.20" L x 1.97" W x 1.17" H (81.2mm x 50.0mm x 29.8mm) | CE, cULus |
|
|
PSAA15W-120VAC/DC DESKTOP ADAPTER 12V 15W Phihong USA |
4,863 |
|
规格书 |
PSAA15W-V (15W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.20" L x 1.97" W x 1.17" H (81.2mm x 50.0mm x 29.8mm) | CE, cULus |
|
PSA40W-190AC/DC DESKTOP ADAPTER 19V 40W Phihong USA |
3,694 |
|
规格书 |
PSA40W (40W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 2.1A | 40 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.54" L x 1.38" W x 1.06" H (90.0mm x 35.0mm x 27.0mm) | CE, cULus, TUVgs |
|
|
PSAA15W-240VAC/DC DESKTOP ADAPTER 24V 15W Phihong USA |
2,884 |
|
规格书 |
PSAA15W-V (15W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 630mA | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.20" L x 1.97" W x 1.17" H (81.2mm x 50.0mm x 29.8mm) | CE, cULus |
|
PSA30W-190AAC/DC DESKTOP ADAPTER 19V 34W Phihong USA |
2,336 |
|
规格书 |
PSA30W (30W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 1.8A | 34 W | 200mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.14" L x 1.38" W x 0.94" H (80.0mm x 35.0mm x 24.0mm) | CE, cULus, TUVgs |
|
PSA05F-050Q(AG)AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
2,030 |
|
规格书 |
PSA05F (5W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 30mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.36" L x 1.85" W x 0.59" H (60.0mm x 47.0mm x 15.0mm) | CE, C-tick, cULus |
|

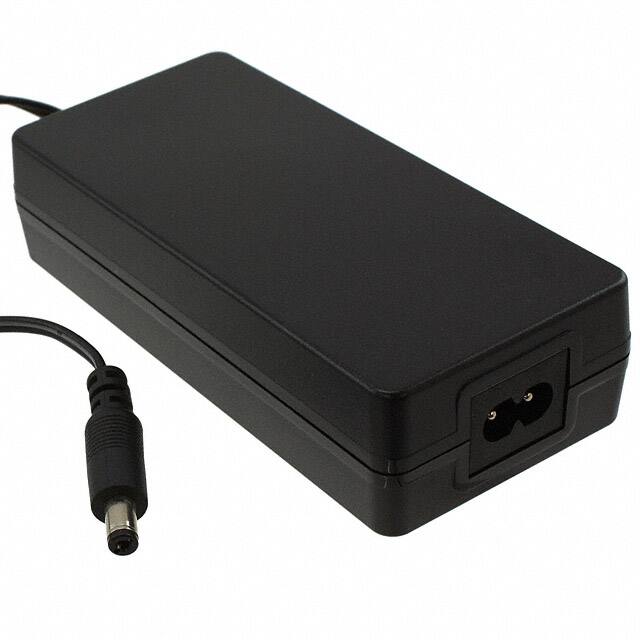

PSAC60W-180AC/DC DESKTOP ADAPTER 18V 60W Phihong USA |
2,659 |
|
规格书 |
PSAC60W (60W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus |
|
PSAC60M-180AC/DC DESKTOP ADAPTER 18V 60W Phihong USA |
1,448 |
|
规格书 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus |
|
PSAC05R-050(P)-R-C2AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,270 |
|
规格书 |
PSAC05R (5W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | CE, cULus, TUVgs |
