| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGA40U48-P1JAC/DC WALL MOUNT ADAPTER 48V 40W MEAN WELL USA Inc. |
4,801 |
|
规格书 |
SGA40U (40W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 840mA | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, cULus |
|
SGA40E48-P1JAC/DC WALL MOUNT ADAPTER 48V 40W MEAN WELL USA Inc. |
3,029 |
|
规格书 |
SGA40E (40W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 840mA | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS |
|
|
SGA40E05-P1JAC/DC WALL MOUNT ADAPTER 5V 25W MEAN WELL USA Inc. |
2,336 |
|
规格书 |
SGA40E (40W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 5A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS |
|

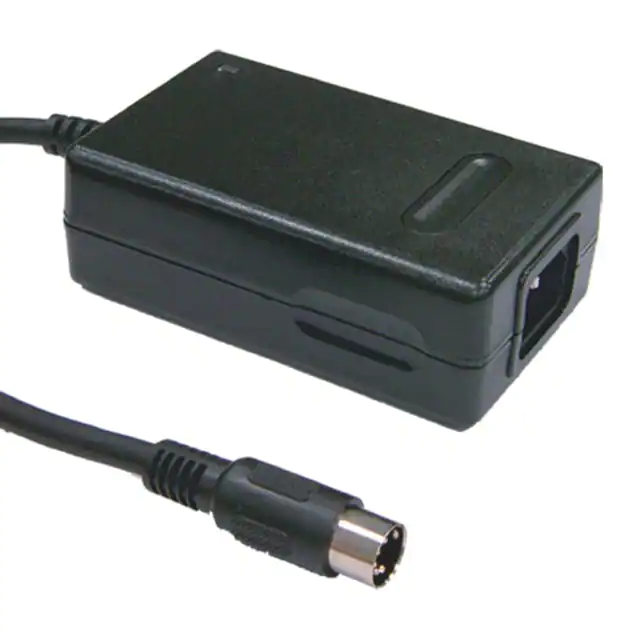

P25A13A-R1BAC/DC DSKTP ADPT 5V/12V/-5V 25W MEAN WELL USA Inc. |
3,772 |
|
- |
P25A-T (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -5V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25A13D-R1BAC/DC DSKTP ADAPTER 5V +/-12 25W MEAN WELL USA Inc. |
4,234 |
|
- |
P25A-T (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -12V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 72% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25A14E-R1BAC/DC DESKTOP ADPT 5V +/-15V 25W MEAN WELL USA Inc. |
4,855 |
|
- |
P25A-T (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 15V, -15V | 2.5A, 500mA, 300mA | 25 W | - | - | ITE (Commercial) | 74% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
P25B13A-R1BAC/DC DSKTP ADPT 5V/12V/-5V 25W MEAN WELL USA Inc. |
2,572 |
|
- |
P25B-T (25W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -5V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25B13D-R1BAC/DC DSKTP ADAPTER 5V +/-12 25W MEAN WELL USA Inc. |
1,296 |
|
- |
P25B-T (25W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -12V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 72% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25B14E-R1BAC/DC DESKTOP ADPT 5V +/-15V 25W MEAN WELL USA Inc. |
1,765 |
|
- |
P25B-T (25W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 15V, -15V | 2.5A, 500mA, 300mA | 25 W | - | - | ITE (Commercial) | 74% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
SGA60E48-P1JAC/DC WALL MOUNT ADAPTER 48V 60W MEAN WELL USA Inc. |
3,070 |
|
规格书 |
SGA60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.25A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | CEE 7/16 | - | 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm) | CB, CE, GS |
