购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGA60U09-P1JAC/DC WALL MOUNT ADAPTER 9V 50W MEAN WELL USA Inc. |
2,439 |
|
规格书 |
SGA60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 5.5A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm) | CB, cULus |
|
GEM40I05-P1JAC/DC WALL MOUNT ADAPTER 5V 25W MEAN WELL USA Inc. |
3,219 |
|
规格书 |
GEM40I (40W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV |
|
|

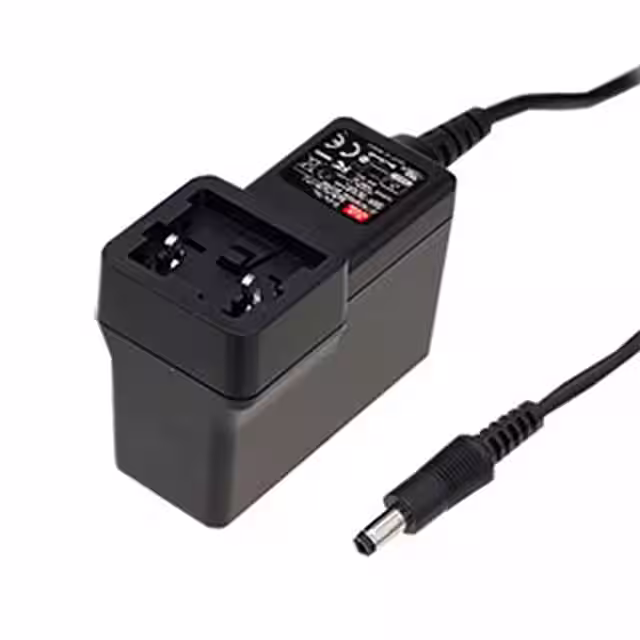

GEM40I18-P1JAC/DC WALL MOUNT ADAPTER 18V 40W MEAN WELL USA Inc. |
3,753 |
|
规格书 |
GEM40I (40W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV |
|
|
GEM40I15-P1JAC/DC WALL MOUNT ADAPTER 15V 40W MEAN WELL USA Inc. |
2,170 |
|
规格书 |
GEM40I (40W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 15V | 2.66A | 40 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV |
|
OWA-60E-30AC/DC DESKTOP ADAPTER 30V 60W MEAN WELL USA Inc. |
1,775 |
|
规格书 |
OWA-60E (60W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 30V | 2A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | CEE 7/7 | - | 5.12" L x 2.09" W x 1.38" H (130.0mm x 53.0mm x 35.0mm) | CB, CE, GS |
|
|
OWA-60E-42AC/DC DESKTOP ADAPTER 42V 63W MEAN WELL USA Inc. |
1,364 |
|
规格书 |
OWA-60E (60W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 42V | 1.5A | 63 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | CEE 7/7 | - | 5.12" L x 2.09" W x 1.38" H (130.0mm x 53.0mm x 35.0mm) | CB, CE, GS |
|
|
OWA-60E-54AC/DC DESKTOP ADAPTER 54V 60W MEAN WELL USA Inc. |
4,498 |
|
规格书 |
OWA-60E (60W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 54V | 1.12A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | CEE 7/7 | - | 5.12" L x 2.09" W x 1.38" H (130.0mm x 53.0mm x 35.0mm) | CB, CE, GS |
|
GSM60U07-P1JAC/DC WALL MNT ADAPTER 7.5V 45W MEAN WELL USA Inc. |
1,809 |
|
规格书 |
GSM60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 7.5V | 6A | 45 W | - | Positive Center | Medical | 85% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, FCC, UR |
|
|
GSM60U12-P1JAC/DC WALL MOUNT ADAPTER 12V 54W MEAN WELL USA Inc. |
2,910 |
|
规格书 |
GSM60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 12V | 4.5A | 54 W | - | Positive Center | Medical | 88% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, FCC, UR |
|
GSM60E09-P1JAC/DC WALL MOUNT ADAPTER 9V 50W MEAN WELL USA Inc. |
4,123 |
|
规格书 |
GSM60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 9V | 5.5A | 50 W | - | Positive Center | Medical | 87% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | KSC 8305 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV |
