购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GST36B05-P1JAC/DC DESKTOP ADAPTER 5V 22W MEAN WELL USA Inc. |
2,827 |
|
规格书 |
GST36B (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 5V | 4.3A | 22 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
NGE18E15-P1J+15V1.2A;20AWG/150CM MEAN WELL USA Inc. |
2,625 |
|
规格书 |
NGE18 (18W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | 1.2A | 18 W | 75mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | KSC 8305 | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, CE, EAC |
|
|
NGE18U18-P1J+18V1A;20AWG/150CM MEAN WELL USA Inc. |
2,071 |
|
规格书 |
NGE18 (18W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 18V | 1A | 18 W | 75mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, cULus, cURus, FCC, PSE, TUV |
|
|
NGE18E05-P1J+5V3A;18AWG/150CM MEAN WELL USA Inc. |
4,279 |
|
规格书 |
NGE18 (18W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 3A | 15 W | 75mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | KSC 8305 | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, CE, EAC |
|

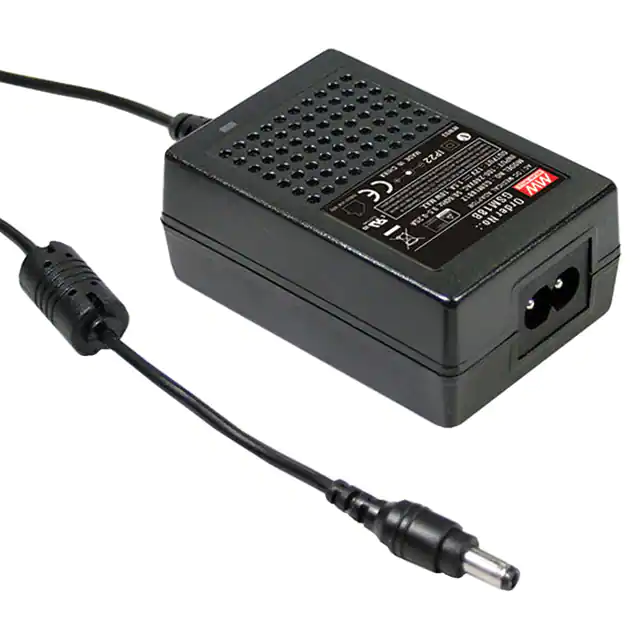

GSM18B05-P1JAC/DC DESKTOP ADAPTER 5V 15W MEAN WELL USA Inc. |
1,231 |
|
规格书 |
GSM18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV |
|
|
GSM18B48-P1JAC/DC DESKTOP ADAPTER 48V 18W MEAN WELL USA Inc. |
3,376 |
|
规格书 |
GSM18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 375mA | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV |
|
GSM18U48-P1JAC/DC WALL MOUNT ADAPTER 48V 18W MEAN WELL USA Inc. |
4,179 |
|
规格书 |
GSM18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 48V | 375mA | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV |
|
GSM18E09-P1JAC/DC WALL MOUNT ADAPTER 9V 18W MEAN WELL USA Inc. |
1,769 |
|
规格书 |
GSM18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV |
|
|
GSM18E12-P1JAC/DC WALL MOUNT ADAPTER 12V 18W MEAN WELL USA Inc. |
4,345 |
|
规格书 |
GSM18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV |
|
|
GSM18E07-P1JAC/DC WALL MNT ADAPTER 7.5V 15W MEAN WELL USA Inc. |
3,270 |
|
规格书 |
GSM18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV |
