购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

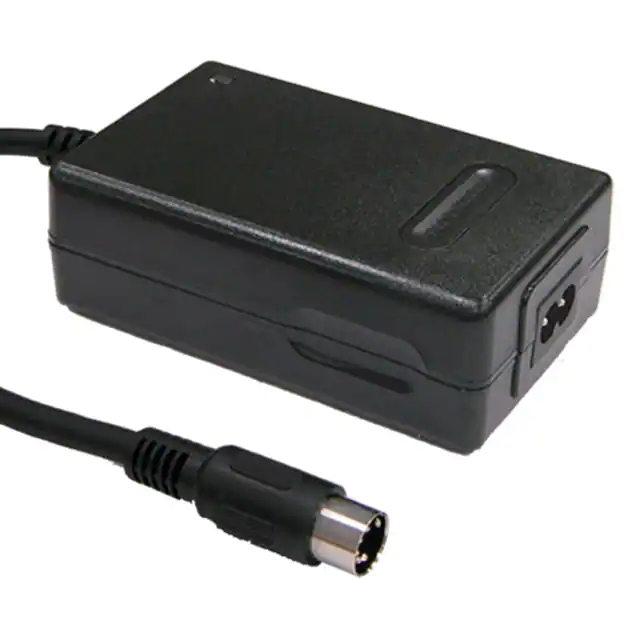

GP25B13D-R1BAC/DC DSKTP ADAPTER 5V +/-12 28W MEAN WELL USA Inc. |
2,768 |
|
规格书 |
GP25B (25W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -12V | 2.5A, 1A, 300mA | 28 W | 300mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 70°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C8 | - | 4.23" L x 2.64" W x 1.42" H (107.5mm x 67.0mm x 36.0mm) | CBE, CE, cULus, GS |
|
OWA-120E-36AC/DC DESKTOP ADAPTER 36V 122W MEAN WELL USA Inc. |
3,307 |
|
规格书 |
OWA-120E (120W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 36V | 3.4A | 122 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Power DIN, 4 Pin | 11.8" (300.00mm) | CEE 7/7 | - | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CE, GS |
|

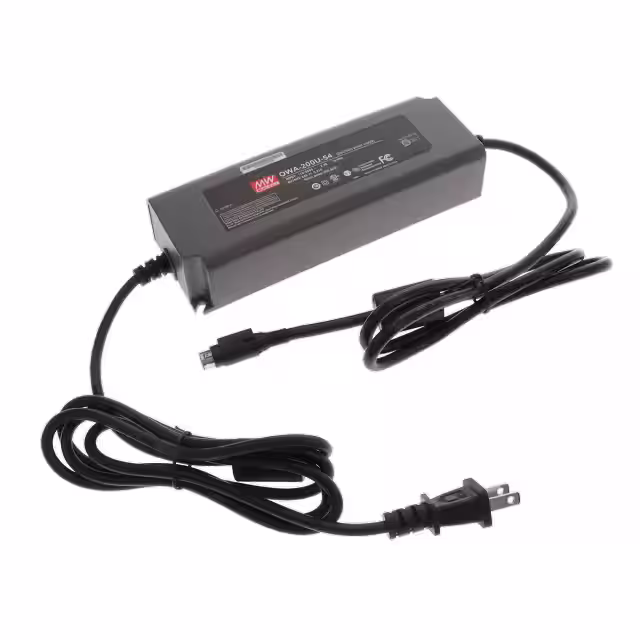

OWA-200U-54AC/DC DESKTOP ADAPTER 54V 200W MEAN WELL USA Inc. |
3,004 |
|
规格书 |
OWA-200U (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 100 ~ 264 VAC | 54V | 3.71A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | cULus, FCC |
|
OWA-200E-12AC/DC DESKTOP ADAPTER 12V 180W MEAN WELL USA Inc. |
4,371 |
|
规格书 |
OWA-200E (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 12V | 15A | 180 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | DIN, 4 Pin | 39.4" (1.00m) | CEE 7/7 | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CE, EAC, GS |
|
OWA-200U-20AC/DC DESKTOP ADAPTER 20V 200W MEAN WELL USA Inc. |
3,357 |
|
规格书 |
OWA-200U (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 100 ~ 264 VAC | 20V | 10A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | cULus, FCC |
|
|
OWA-200E-42AC/DC DESKTOP ADAPTER 42V 200W MEAN WELL USA Inc. |
3,358 |
|
规格书 |
OWA-200E (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 42V | 4.75A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/7 | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CE, EAC, GS |
|
GSM60B07-P1JAC/DC DESKTOP ADAPTER 7.5V 45W MEAN WELL USA Inc. |
2,323 |
|
规格书 |
GSM60B (60W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 7.5V | 6A | 45 W | 100mW (Max) | Positive Center | Medical | Level V | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | CB, CE, cRUus, TUV |
|
|
OWA-200E-54AC/DC DESKTOP ADAPTER 54V 200W MEAN WELL USA Inc. |
2,917 |
|
规格书 |
OWA-200E (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 54V | 3.71A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/7 | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CE, EAC, GS |
|
|
OWA-200E-20AC/DC DESKTOP ADAPTER 20V 200W MEAN WELL USA Inc. |
4,104 |
|
规格书 |
OWA-200E (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 20V | 10A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | XLR Plug, 4 Pin | 39.4" (1.00m) | CEE 7/7 | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CE, EAC, GS |
|
|
OWA-200E-36AC/DC DESKTOP ADAPTER 36V 200W MEAN WELL USA Inc. |
3,301 |
|
规格书 |
OWA-200E (200W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 36V | 5.55A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/7 | - | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CE, EAC, GS |
