购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OWA-90U-36-P1MAC/DC DESKTOP ADAPTER 36V 90W MEAN WELL USA Inc. |
1,951 |
|
规格书 |
OWA-90U (90W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 36V | 2.5A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (0.30m) | NEMA 1-15P | - | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | cULus, FCC, UL |
|
|
OWA-90U-48-P1MAC/DC DESKTOP ADAPTER 48V 90W MEAN WELL USA Inc. |
2,800 |
|
规格书 |
OWA-90U (90W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (0.30m) | NEMA 1-15P | - | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | cULus, FCC, UL |
|
|
OWA-90U-54-P1MAC/DC DESKTOP ADAPTER 54V 90W MEAN WELL USA Inc. |
3,149 |
|
规格书 |
OWA-90U (90W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 54V | 1.67A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (0.30m) | NEMA 1-15P | - | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | cULus, FCC, UL |
|
GST160A12NCAC/DC DESKTOP ADAPTER 12V 138W MEAN WELL USA Inc. |
1,274 |
|
规格书 |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 11.5A | 138 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | - | 39.4" (1.00m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST160A24-NCAC/DC DESKTOP ADAPTER 24V 160W MEAN WELL USA Inc. |
1,149 |
|
规格书 |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 6.67A | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | - | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GSM120A20-R7BAC/DC DESKTOP ADAPTER 20V 120W MEAN WELL USA Inc. |
4,167 |
|
规格书 |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV |
|

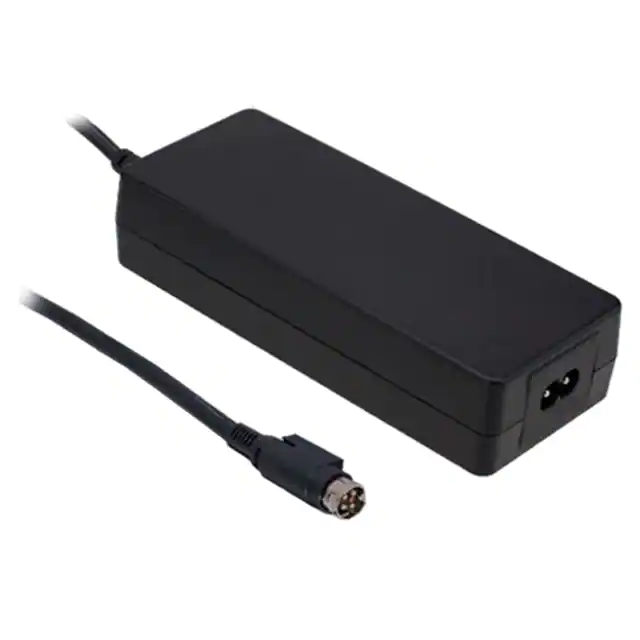

GSM120B20-R7BAC/DC DESKTOP ADAPTER 20V 120W MEAN WELL USA Inc. |
3,538 |
|
规格书 |
GSM120B (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C8 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV |
|
OWA-90E-12AC/DC DESKTOP ADAPTER 12V 90W MEAN WELL USA Inc. |
3,429 |
|
规格书 |
OWA-90E (90W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 7.5A | 90 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Power DIN, 4 Pin | 11.8" (300.00mm) | CEE 7/7 | - | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | CE, GS |
|

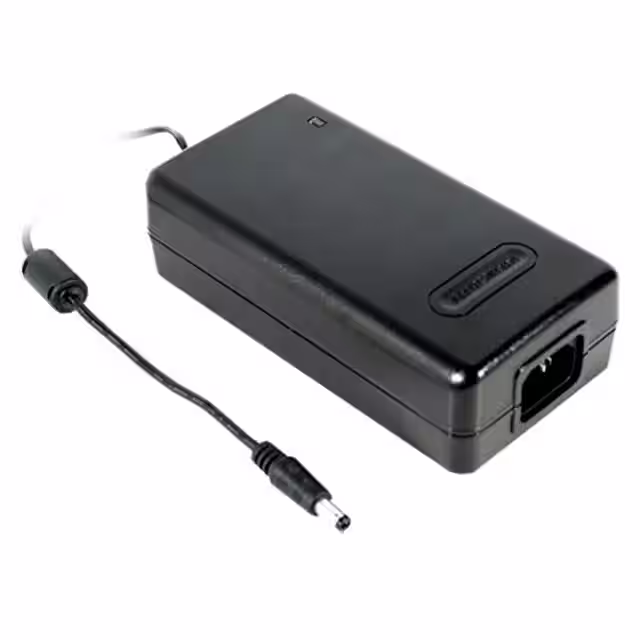

MES50A-2P1JAC/DC DESKTOP ADAPTER 9V 45W MEAN WELL USA Inc. |
3,953 |
|
规格书 |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 5A | 45 W | - | Positive Center | Medical | 72% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV |
|
|
MES50A-3P1JAC/DC DESKTOP ADAPTER 12V 50W MEAN WELL USA Inc. |
2,282 |
|
规格书 |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.16A | 50 W | - | Positive Center | Medical | 74% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV |
