购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
00xxA-10B.jpg)
|

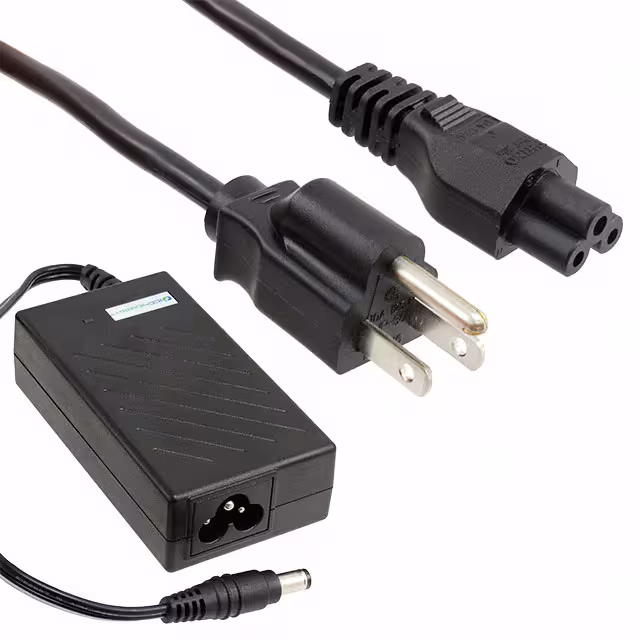

FWE050015A-10BAC/DC DESKTOP ADAPTER 15V 50W Inventus Power |
3,056 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 15V | 3.3A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
FWE050015B-10BAC/DC DESKTOP ADAPTER 15V 50W Inventus Power |
1,626 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 15V | 3.3A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
|
FWE050018A-10BAC/DC DESKTOP ADAPTER 18V 49W Inventus Power |
1,961 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 18V | 2.7A | 49 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
|
FWE050024A-10BAC/DC DESKTOP ADAPTER 24V 50W Inventus Power |
3,929 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 2.1A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
00xxB-10B.jpg)
|

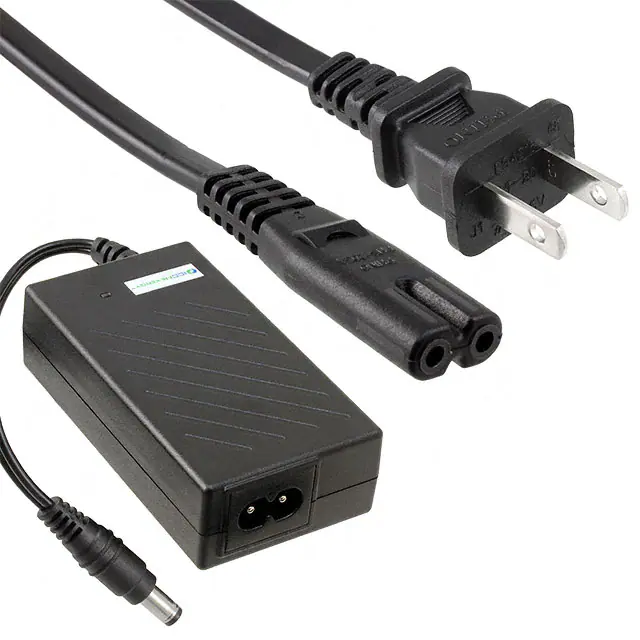

FWE050024B-10BAC/DC DESKTOP ADAPTER 24V 50W Inventus Power |
4,763 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 24V | 2.1A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
|
FWE050048A-10BAC/DC DESKTOP ADAPTER 48V 50W Inventus Power |
3,026 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 48V | 1.05A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
|
FWE050048B-10BAC/DC DESKTOP ADAPTER 48V 50W Inventus Power |
3,843 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 48V | 1.05A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
FWA220048A-11AAC/DC DESKTOP ADAPTER 48V 221W Inventus Power |
4,856 |
|
规格书 |
FWA220 (220W) | Bulk | Obsolete | International | Desktop (Class I) | Cord | 85 ~ 264 VAC | 48V | 4.6A | 221 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
FWA065012A-11AAC/DC DESKTOP ADAPTER 12V 72W Inventus Power |
2,371 |
|
规格书 |
FWA065 (65W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 6A | 72 W | 500mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm) | CB, CE, cTUVus |
|

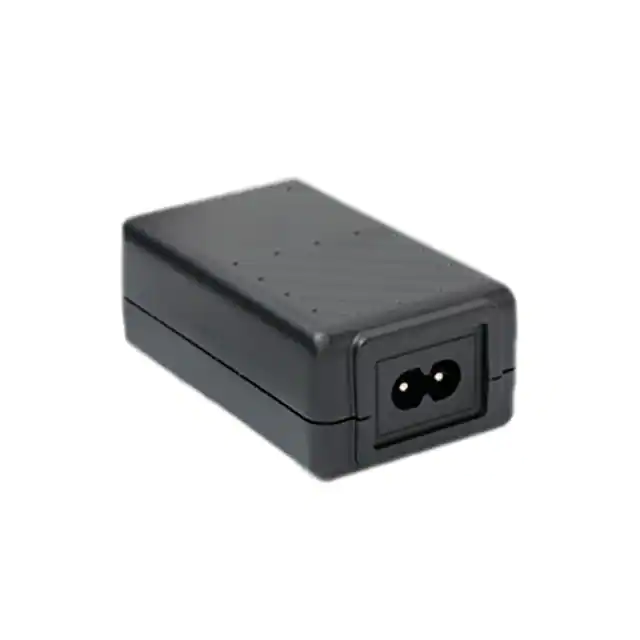

FWA020005B-10AAC/DC DESKTOP ADAPTER 5V 20W Inventus Power |
4,249 |
|
规格书 |
FWA020 (20W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 5V | 4A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | CB, CE, cTUVus |
