购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
00xxB-10B.jpg)
|
FWE030009B-10BAC/DC DESKTOP ADAPTER 9V 30W Inventus Power |
4,878 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 9V | 3.3A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cURus, GS, TUV |
00xxA-10B.jpg)
|
FWE030012A-10BAC/DC DESKTOP ADAPTER 12V 30W Inventus Power |
4,880 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030012B-10BAC/DC DESKTOP ADAPTER 12V 30W Inventus Power |
4,766 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030015A-10BAC/DC DESKTOP ADAPTER 15V 30W Inventus Power |
4,193 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 15V | 2A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
FWE030015B-10BAC/DC DESKTOP ADAPTER 15V 30W Inventus Power |
1,667 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 15V | 2A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030024A-10BAC/DC DESKTOP ADAPTER 24V 30W Inventus Power |
2,757 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 1.25A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030024B-10BAC/DC DESKTOP ADAPTER 24V 30W Inventus Power |
3,784 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 24V | 1.25A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|

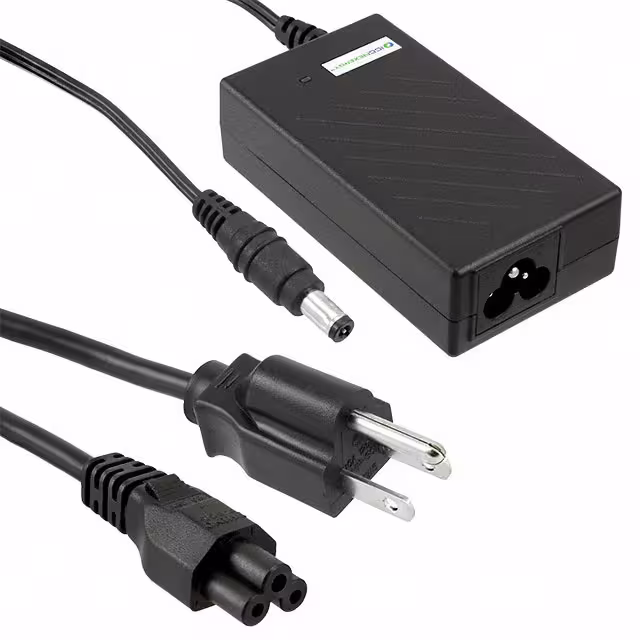

FWE050009A-10BAC/DC DESKTOP ADAPTER 9V 45W Inventus Power |
1,651 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 9V | 5A | 45 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
FWE050009B-10BAC/DC DESKTOP ADAPTER 9V 45W Inventus Power |
3,901 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 9V | 5A | 45 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
|
|
FWE050012B-10BAC/DC DESKTOP ADAPTER 12V 51W Inventus Power |
1,551 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 12V | 4.25A | 51 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus |
