| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDA15F-5-SAC/DC CONVERTER 5V 15W |
4,457 |
|
规格书 |
LDA (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 1.97" W x 0.83" H (125.0mm x 50.0mm x 21.0mm) |
|
|
LDA15F-5-SNAC/DC CONVERTER 5V 15W |
2,615 |
|
规格书 |
LDA (15W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.71" L x 2.24" W x 1.26" H (145.0mm x 57.0mm x 32.0mm) |
|
|
LDA15F-5-YD5.3AC/DC CONVERTER 5V 15W |
2,707 |
|
规格书 |
LDA (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 1.97" W x 0.83" H (125.0mm x 50.0mm x 21.0mm) |
|
|
LDA300W-12AC/DC CONVERTER 12V 324W |
4,691 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 12V | - | - | - | - | - | 27 A | - | - | - | - | - | 324W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-12-TAC/DC CONVERTER 12V 324W |
2,336 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 12V | - | - | - | - | - | 27 A | - | - | - | - | - | 324W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-15AC/DC CONVERTER 15V 330W |
4,604 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 15V | - | - | - | - | - | 22 A | - | - | - | - | - | 330W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-15-TAC/DC CONVERTER 15V 330W |
3,014 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 15V | - | - | - | - | - | 22 A | - | - | - | - | - | 330W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-24-JAC/DC CONVERTER 24V 336W |
4,257 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|

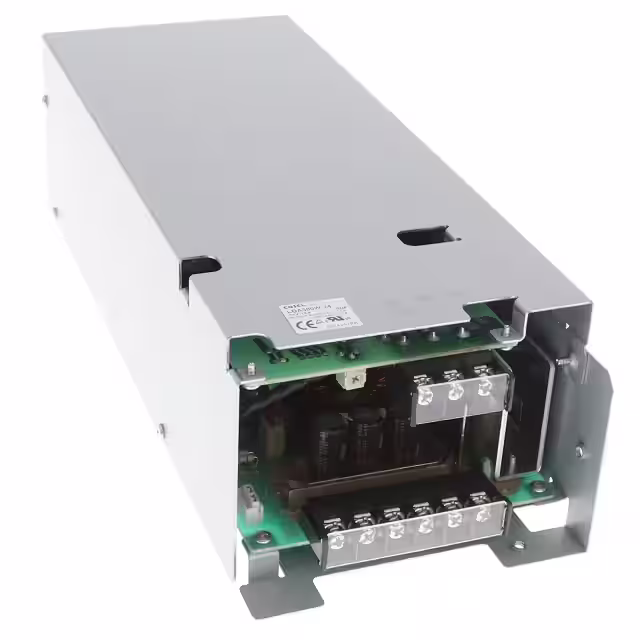

LDA300W-24-SNFAC/DC CONVERTER 24V 336W |
3,244 |
|
规格书 |
LDA (300W) | Box | Obsolete | Enclosed | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 12.32" L x 4.63" W x 3.39" H (313.0mm x 117.5mm x 86.0mm) |
|
|
LDA300W-24-STAC/DC CONVERTER 24V 336W |
2,451 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-24-TAC/DC CONVERTER 24V 336W |
1,524 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-30AC/DC CONVERTER 30V 300W |
3,265 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 30V | - | - | - | - | - | 10 A | - | - | - | - | - | 300W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-48AC/DC CONVERTER 48V 302W |
2,754 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 302W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-48-RAC/DC CONVERTER 48V 302W |
2,976 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 302W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-48-STAC/DC CONVERTER 48V 302W |
1,619 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 302W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA300W-9AC/DC CONVERTER 9V 306W |
2,168 |
|
规格书 |
LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 9V | - | - | - | - | - | 34 A | - | - | - | - | - | 306W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
LDA30F-12AC/DC CONVERTER 12V 30W |
4,983 |
|
规格书 |
LDA (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.0mm x 26.0mm) |
|
|
LDA30F-12-CMAC/DC CONVERTER 12V 30W |
1,409 |
|
规格书 |
LDA (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.0mm x 26.0mm) |
|
|
LDA30F-12-GAC/DC CONVERTER 12V 30W |
3,100 |
|
规格书 |
LDA (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.0mm x 26.0mm) |
|
|
LDA30F-12-MAC/DC CONVERTER 12V 30W |
2,272 |
|
规格书 |
LDA (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.0mm x 26.0mm) |
