购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDA100W-5AC/DC CONVERTER 5V 100W |
3,653 |
|
规格书 |
LDA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) |
|
|
LDA10F-12AC/DC CONVERTER 12V 11W |
3,305 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-12-GAC/DC CONVERTER 12V 11W |
4,567 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-12-GYAC/DC CONVERTER 12V 11W |
3,921 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-12-YAC/DC CONVERTER 12V 11W |
4,906 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-15AC/DC CONVERTER 15V 11W |
3,765 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-15-SNAC/DC CONVERTER 15V 11W |
3,108 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-15-SNYAC/DC CONVERTER 15V 11W |
3,245 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-24AC/DC CONVERTER 24V 12W |
1,904 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-24-CAC/DC CONVERTER 24V 12W |
2,784 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-24-CYAC/DC CONVERTER 24V 12W |
3,209 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-24-SNAC/DC CONVERTER 24V 12W |
2,692 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-24-SNYAC/DC CONVERTER 24V 12W |
2,835 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-24-YAC/DC CONVERTER 24V 12W |
1,099 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-3-SNAC/DC CONVERTER 3V 6W |
3,992 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 3V | - | - | - | - | - | 2 A | - | - | - | - | - | 6W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|

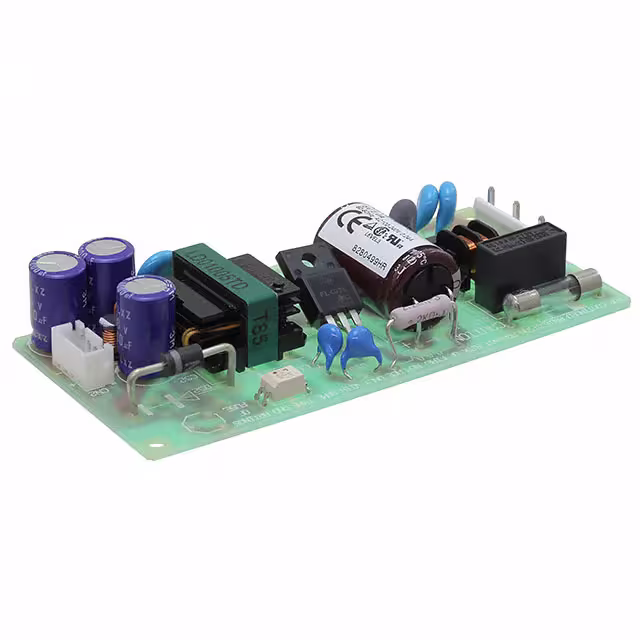

LDA10F-5AC/DC CONVERTER 5V 10W |
3,663 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-5-CYAC/DC CONVERTER 5V 10W |
1,337 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-5-SNCAC/DC CONVERTER 5V 10W |
2,698 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-5-SNCYAC/DC CONVERTER 5V 10W |
4,481 |
|
规格书 |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-5-VAC/DC CONVERTER 5V 10W |
1,312 |
|
规格书 |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
