购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDL3000PS200AC/DC CONVERTER 200V 3000W XP Power |
1,435 |
|
规格书 |
HDL3000 (3000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 200V | - | - | - | - | - | 15 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | -20°C ~ 60°C | Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.87" L x 6.69" W x 2.52" H (301.5mm x 169.9mm x 64.0mm) |
|
HPT5K0TS060-LAC/DC CONVERTER 60V 5000W XP Power |
2,763 |
|
规格书 |
HPT5K0-L (5000W) | Box | Active | Enclosed | 1 | 180 ~ 528 VAC (3 Phase) | 60V | - | - | - | - | - | 83.3 A | - | - | - | - | - | 5000W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 13.25" L x 10.00" W x 2.50" H (336.6mm x 254.0mm x 63.5mm) |
|
HPL5K0TS100AC/DC CONVERTER 100V 5000W XP Power |
3,798 |
|
规格书 |
HPL5K0 (5000W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC (3 Phase) | 100V | - | - | - | - | - | 50 A | - | - | - | - | - | 5000W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | I2C Interface, PFC, PMBus™, Programmable Voltage, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm) |
|
VCB60US48AC/DC CONVERTER 48V 60W XP Power |
3,138 |
|
规格书 |
VCB60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) |
|

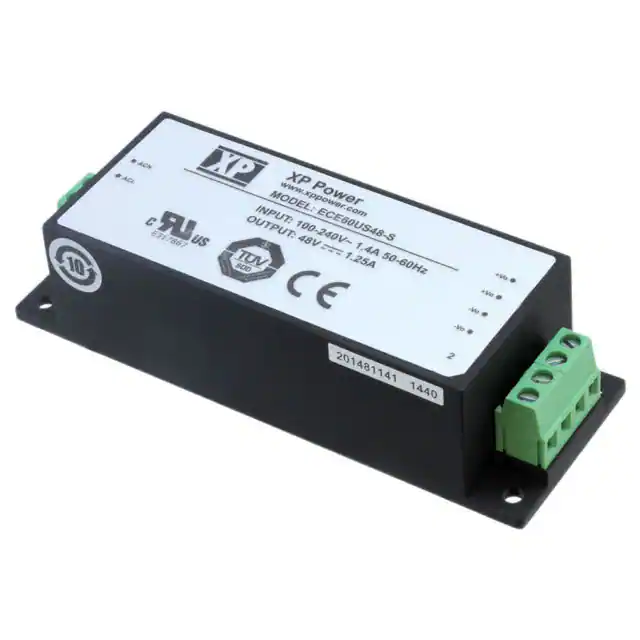

ECE60US48-SAC/DC CONVERTER 48V 60W XP Power |
3,240 |
|
规格书 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
SHP1000PS36AC/DC CONVERTER 36V 1000W XP Power |
2,456 |
|
规格书 |
SHP (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 34 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) |
|
HPA1K5PS24AC/DC CONVERTER 24V 1500W XP Power |
4,566 |
|
规格书 |
HPA1K5 (1500W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC | 24V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 1500W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm) |
|

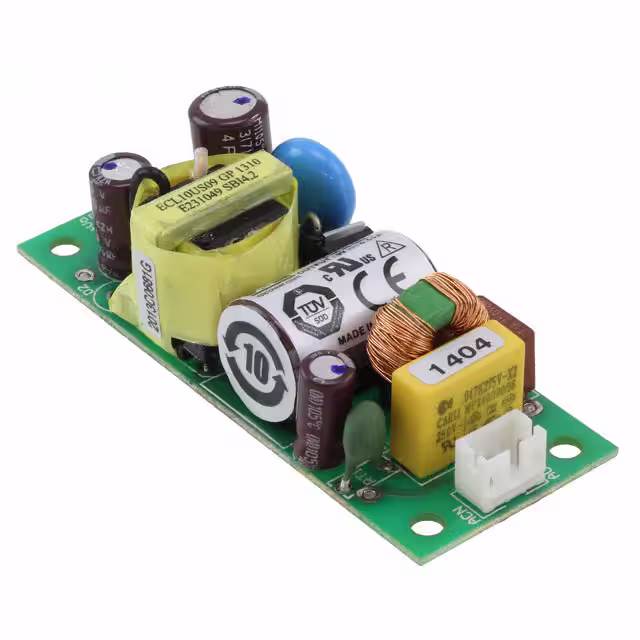

ECL05US09-TAC/DC CONVERTER 9V 5W XP Power |
4,404 |
|
规格书 |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 550 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECL15US09-TAC/DC CONVERTER 9V 15W XP Power |
3,426 |
|
规格书 |
ECL (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
|
EML15US36-TAC/DC CONVERTER 36V 15W XP Power |
2,146 |
|
规格书 |
EML15 (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 420 mA | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
