购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCE80PS36AC/DC CONVERTER 36V 80W XP Power |
2,536 |
|
规格书 |
LCE80 (80W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 36V | - | - | - | - | - | 2.22 A | - | - | - | - | - | 80W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
|
LCE80PS20AC/DC CONVERTER 20V 80W XP Power |
2,537 |
|
规格书 |
LCE80 (80W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 20V | - | - | - | - | - | 4 A | - | - | - | - | - | 80W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
ECS60US05AC/DC CONVERTER 5V 60W XP Power |
4,634 |
|
规格书 |
ECS (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|
ECL30UD03-TAC/DC CONVERTER 5V 12V 30W XP Power |
1,043 |
|
规格书 |
ECL (30W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 3 A | 1.3 A | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
|
ECL30UT02-TAC/DC CONVERTER 5V +/-12V 30W XP Power |
1,904 |
|
规格书 |
ECL (30W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 3 A | 630 mA | 630 mA | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECE60US05-SAC/DC CONVERTER 5V 50W XP Power |
3,363 |
|
规格书 |
ECE60 (60W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
SMP350PS15AC/DC CONVERTER 15V 330W XP Power |
2,087 |
|
规格书 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 22 A | - | - | - | - | - | 330W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) |
|
ECH450PS19AC/DC CONVERTER 19V 247W XP Power |
2,467 |
|
规格书 |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 13 A | - | - | - | - | - | 247W (450W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
|
CCH600PS48AC/DC CONVERTER 48V 603W XP Power |
4,120 |
|
规格书 |
CCH600 (600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 603W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|

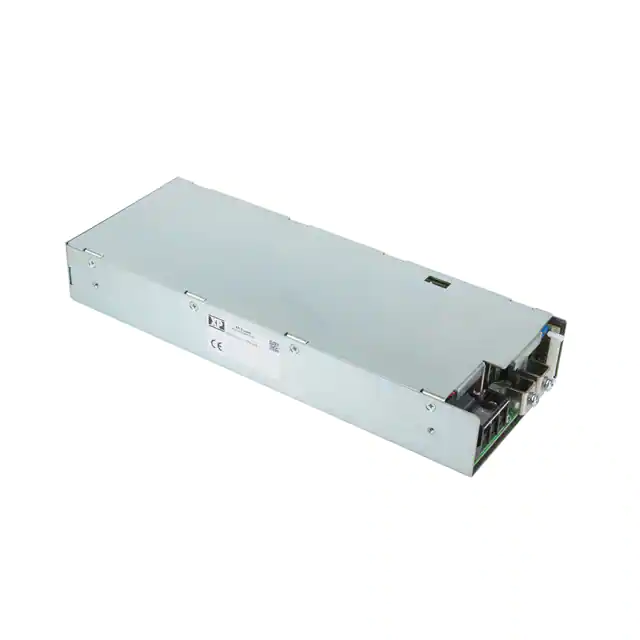

HPA1K5PS48AC/DC CONVERTER 48V 1500W XP Power |
2,550 |
|
规格书 |
HPA1K5 (1500W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC | 48V | - | - | - | - | - | 31.25 A | - | - | - | - | - | 1500W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm) |
