购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZWS240BP-36AC/DC CONVERTER 36V 240W TDK-Lambda |
2,742 |
|
规格书 |
ZWS-BP (240W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 240W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 3.74" W x 1.65" H (222.0mm x 95.0mm x 42.0mm) |
|
ZWS300BAF-36AC/DC CONVERTER 36V 300W TDK-Lambda |
2,052 |
|
规格书 |
ZWS300BAF (300W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 300W (336W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) |
|

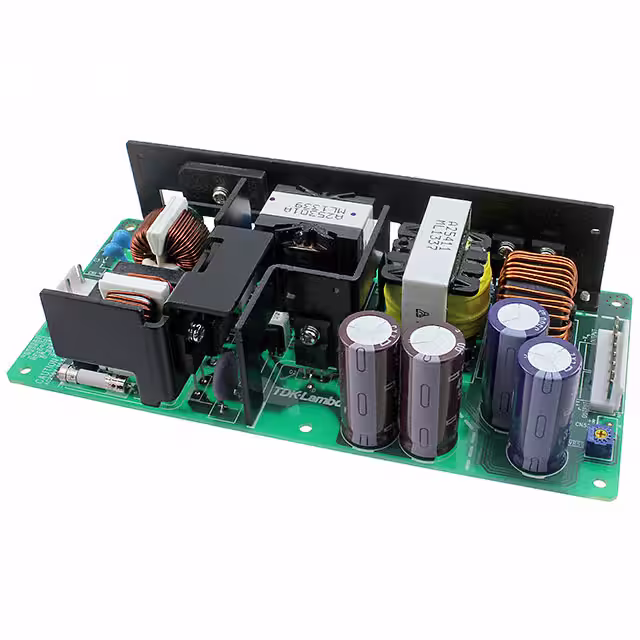

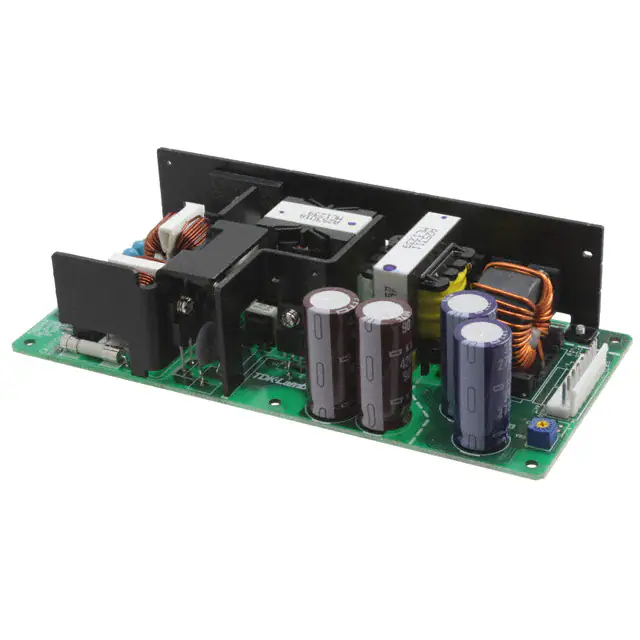

ZWS300BAF-24AC/DC CONVERTER 24V 300W TDK-Lambda |
3,708 |
|
规格书 |
ZWS300BAF (300W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W (336W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) |
|
ZWS300BAF-15AC/DC CONVERTER 15V 300W TDK-Lambda |
2,916 |
|
规格书 |
ZWS300BAF (300W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 20 A | - | - | - | - | - | 300W (336W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) |
|
CUS400M-12/FX5AC/DC CONVERTER 12V 250W TDK-Lambda |
4,372 |
|
规格书 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 2.66" H (142.0mm x 90.0mm x 67.5mm) |
|
NVM100026AC/DC CONVERTER 24V 180W TDK-Lambda |
2,458 |
|
规格书 |
NVM175 (180W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W | Medical | 4.5 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 5.00" L x 3.00" W x 1.02" H (127.0mm x 76.0mm x 26.0mm) |
|
|
CUS400M-24/FX5AC/DC CONVERTER 24V 250W TDK-Lambda |
1,435 |
|
规格书 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.42 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 2.66" H (142.0mm x 90.0mm x 67.5mm) |
|
CUS600M-36/EFAC/DC CONVERTER 36V 400W TDK-Lambda |
4,899 |
|
规格书 |
CUS600M (600W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 11.1 A | - | - | - | - | - | 400W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.18" L x 3.35" W x 1.67" H (157.0mm x 85.0mm x 42.5mm) |
|
CUS350MP-1000-36/TAC/DC CONVERTER 36V 349W TDK-Lambda |
2,540 |
|
规格书 |
CUS350MP (350W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 9.7 A | - | - | - | - | - | 349W (497W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 7.20" L x 3.46" W x 1.73" H (183.0mm x 88.0mm x 44.0mm) |
|
|
CUS350MP-1000-24/TAAC/DC CONVERTER 24V 350W TDK-Lambda |
1,710 |
|
规格书 |
CUS350MP (350W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W (499W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 7.20" L x 3.46" W x 1.73" H (183.0mm x 88.0mm x 44.0mm) |
