购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

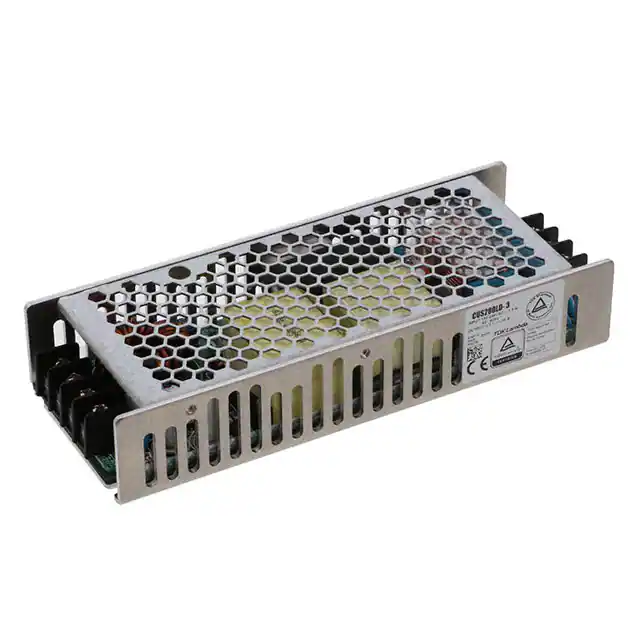

CUS200LD-3AC/DC CONVERTER 3.3V 79W TDK-Lambda |
2,484 |
|
规格书 |
CUS200LD (79-153W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 24 A | - | - | - | - | - | 79W (99W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 2.44" W x 1.22" H (160.0mm x 62.0mm x 31.0mm) |
|
CUT75-5FF/AAC/DC CONVERTER 5V +/-15V 75W TDK-Lambda |
2,514 |
|
规格书 |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
|
ZWS150BAF-48AC/DC CONVERTER 48V 150W TDK-Lambda |
3,178 |
|
规格书 |
ZWS150BAF (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) |
|
CUS150M-12/FAC/DC CONVERTER 12V 150W TDK-Lambda |
4,870 |
|
规格书 |
CUS150M (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.57" L x 2.52" W x 2.00" H (116.0mm x 64.0mm x 50.7mm) |
|
HWS50A-24/HDAC/DC CONVERTER 24V 53W TDK-Lambda |
1,043 |
|
规格书 |
HWS/HD (50W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.72" L x 3.23" W x 1.04" H (120.0mm x 82.0mm x 26.5mm) |
|
|
HWS50A-15/HDAC/DC CONVERTER 15V 53W TDK-Lambda |
1,681 |
|
规格书 |
HWS/HD (50W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 53W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.72" L x 3.23" W x 1.04" H (120.0mm x 82.0mm x 26.5mm) |
|
|
HWS50A-5/HDAC/DC CONVERTER 5V 50W TDK-Lambda |
1,065 |
|
规格书 |
HWS/HD (50W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.72" L x 3.23" W x 1.04" H (120.0mm x 82.0mm x 26.5mm) |
|
CUS250M-24AC/DC CONVERTER 24V 250W TDK-Lambda |
3,282 |
|
规格书 |
CUS250M (250W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.56" H (101.6mm x 50.8mm x 39.5mm) |
|
|
CUS250M-12AC/DC CONVERTER 12V 250W TDK-Lambda |
2,410 |
|
规格书 |
CUS250M (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.56" H (101.6mm x 50.8mm x 39.5mm) |
|
RWS300B-36/RAC/DC CONVERTER 36V 300W TDK-Lambda |
1,859 |
|
规格书 |
RWS-B (300W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Universal Input | Chassis Mount | 6.70" L x 4.02" W x 1.61" H (170.0mm x 102.0mm x 41.0mm) |
