购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZWS75AF-24AC/DC CONVERTER 24V 75W TDK-Lambda |
1,451 |
|
规格书 |
ZWS-AF (75W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) |
|
|
ZWS75AF-48AC/DC CONVERTER 48V 75W TDK-Lambda |
4,269 |
|
规格书 |
ZWS-AF (75W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) |
|
|
ZWS75AF-5AC/DC CONVERTER 5V 75W TDK-Lambda |
3,990 |
|
规格书 |
ZWS-AF (75W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) |
|

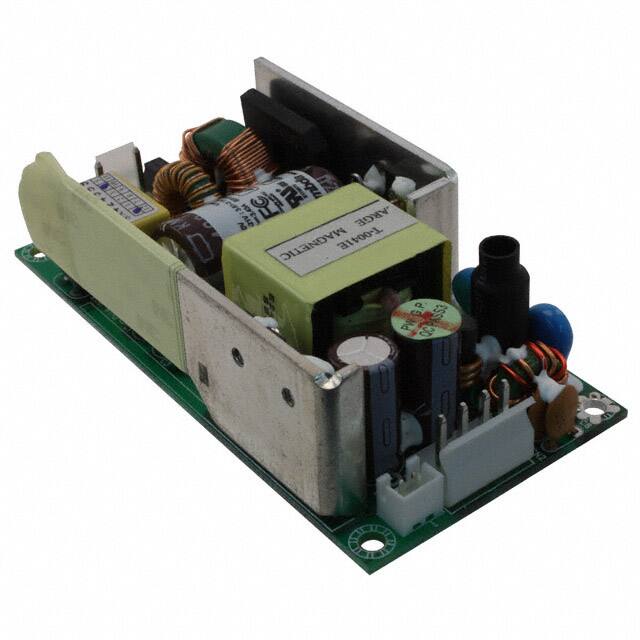

CSS65-12AC/DC CONVERTER 12V 65W TDK-Lambda |
4,569 |
|
规格书 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
|
CSS65-15AC/DC CONVERTER 15V 65W TDK-Lambda |
2,357 |
|
规格书 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
|
CSS65-19AC/DC CONVERTER 19V 65W TDK-Lambda |
1,078 |
|
规格书 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 3.43 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
|
CSS65-36AC/DC CONVERTER 36V 65W TDK-Lambda |
1,322 |
|
规格书 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.81 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
|
CSS65-48AC/DC CONVERTER 48V 65W TDK-Lambda |
2,378 |
|
规格书 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
|
CSS65-5AC/DC CONVERTER 5V 65W TDK-Lambda |
2,921 |
|
规格书 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|

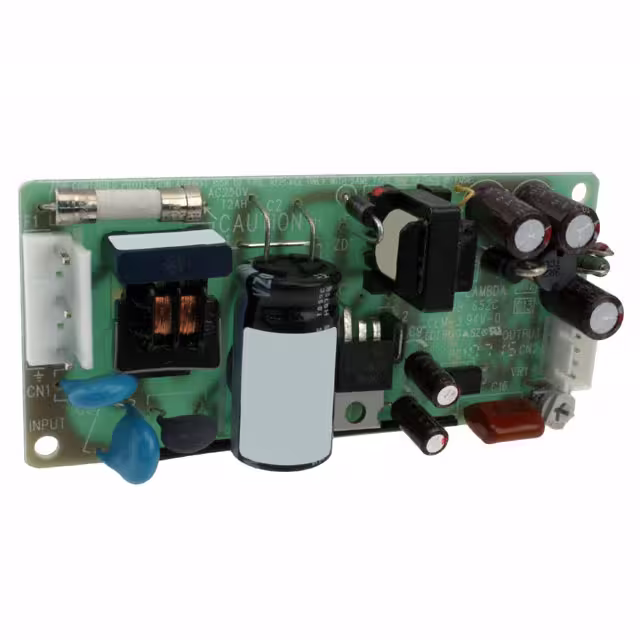

ZWS5-3/JAC/DC CONVERTER 3.3V 5W TDK-Lambda |
2,243 |
|
规格书 |
ZWS (5W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 3.86" L x 1.77" W x 0.83" H (98.0mm x 44.9mm x 21.0mm) |
