购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

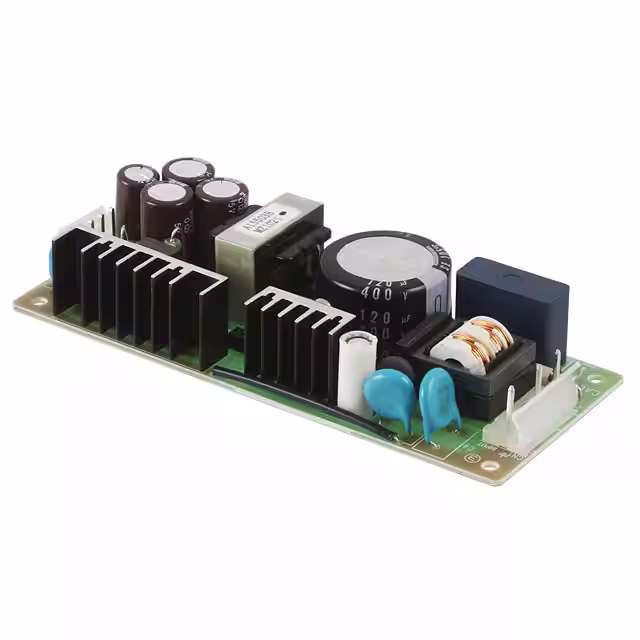

ZWS30-3AC/DC CONVERTER 3.3V 30W TDK-Lambda |
1,913 |
|
规格书 |
ZWS (30W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.1mm x 25.9mm) |
|
|
ZWS30-36AC/DC CONVERTER 36V 30W TDK-Lambda |
2,626 |
|
规格书 |
ZWS (30W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 900 mA | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.1mm x 25.9mm) |
|
ZWS50-12AC/DC CONVERTER 12V 50W TDK-Lambda |
2,393 |
|
规格书 |
ZWS (50W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 1.02" H (195.0mm x 55.1mm x 25.9mm) |
|
|
ZWS50-15AC/DC CONVERTER 15V 50W TDK-Lambda |
3,085 |
|
规格书 |
ZWS (50W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 1.02" H (195.0mm x 55.1mm x 25.9mm) |
|
|
ZWS50-24AC/DC CONVERTER 24V 50W TDK-Lambda |
3,246 |
|
规格书 |
ZWS (50W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 1.02" H (195.0mm x 55.1mm x 25.9mm) |
|
|
ZWS50-5AC/DC CONVERTER 5V 50W TDK-Lambda |
1,977 |
|
规格书 |
ZWS (50W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 1.02" H (195.0mm x 55.1mm x 25.9mm) |
|

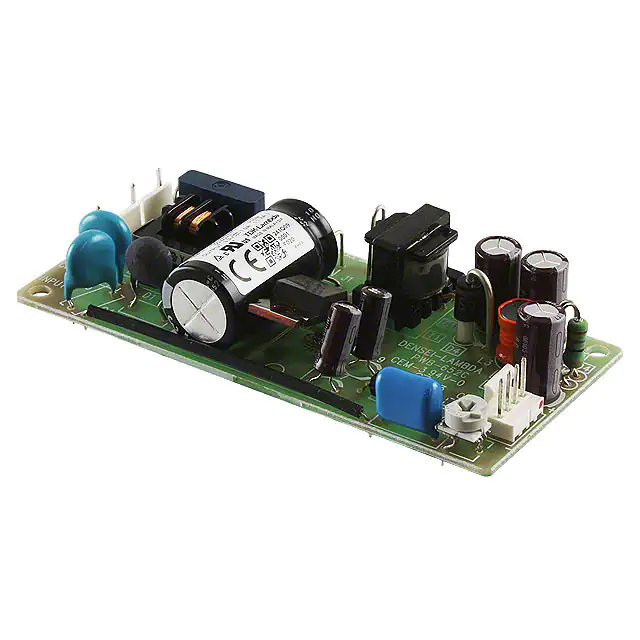

ZWS5-24AC/DC CONVERTER 24V 5W TDK-Lambda |
3,149 |
|
规格书 |
ZWS (5W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 220 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 3.86" L x 1.77" W x 0.83" H (98.0mm x 44.9mm x 21.0mm) |
|
|
ZWS5-3AC/DC CONVERTER 3.3V 5W TDK-Lambda |
4,813 |
|
规格书 |
ZWS (5W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 3.86" L x 1.77" W x 0.83" H (98.0mm x 44.9mm x 21.0mm) |
|
|
ZWS5-5AC/DC CONVERTER 5V 5W TDK-Lambda |
1,620 |
|
规格书 |
ZWS (5W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 3.86" L x 1.77" W x 0.83" H (98.0mm x 44.9mm x 21.0mm) |
|
ZWS75AF-12AC/DC CONVERTER 12V 75W TDK-Lambda |
4,662 |
|
规格书 |
ZWS-AF (75W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) |
