购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

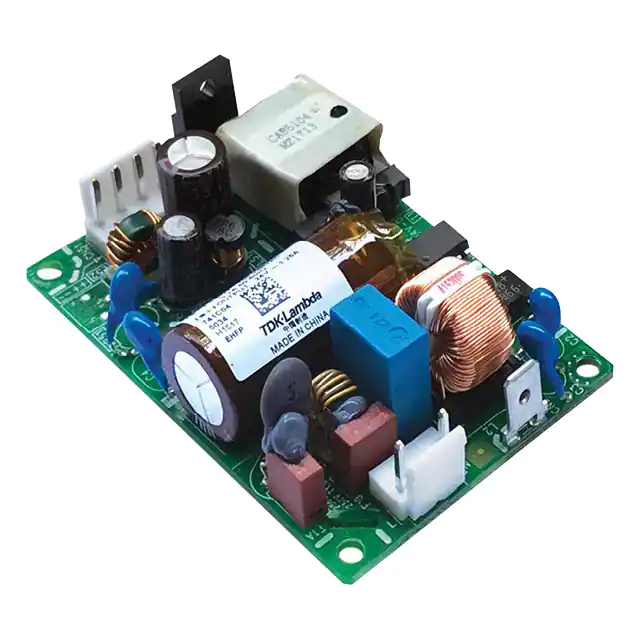

CUS30M-12/AAC/DC CONVERTER 12V 30W TDK-Lambda |
253 |
|
规格书 |
CUS30M (30W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.48" L x 2.52" W x 1.40" H (88.4mm x 64.0mm x 35.5mm) |
|
ZPSA60-36AC/DC CONVERTER 36V 60W TDK-Lambda |
151 |
|
规格书 |
ZPSA60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) |
|
ZWS15B-5AC/DC CONVERTER 5V 15W TDK-Lambda |
2,056 |
|
规格书 |
ZWS15B (15W) | Tray | Active | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) |
|

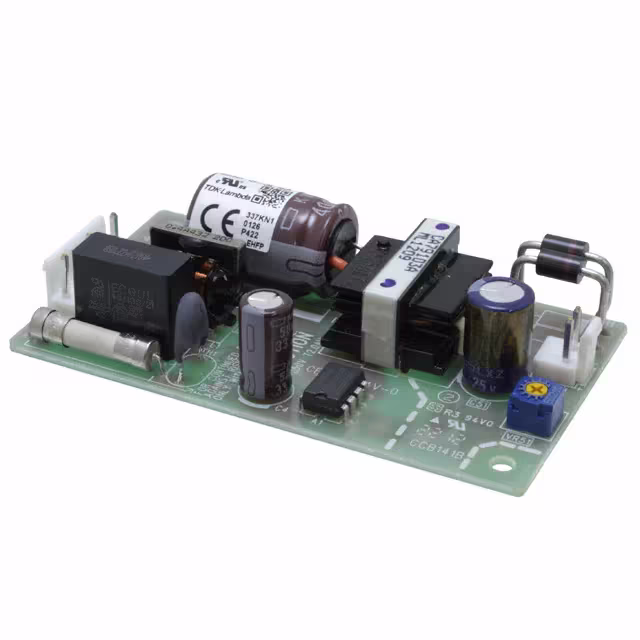

ZWS15B-12AC/DC CONVERTER 12V 15W TDK-Lambda |
602 |
|
规格书 |
ZWS15B (15W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) |
|

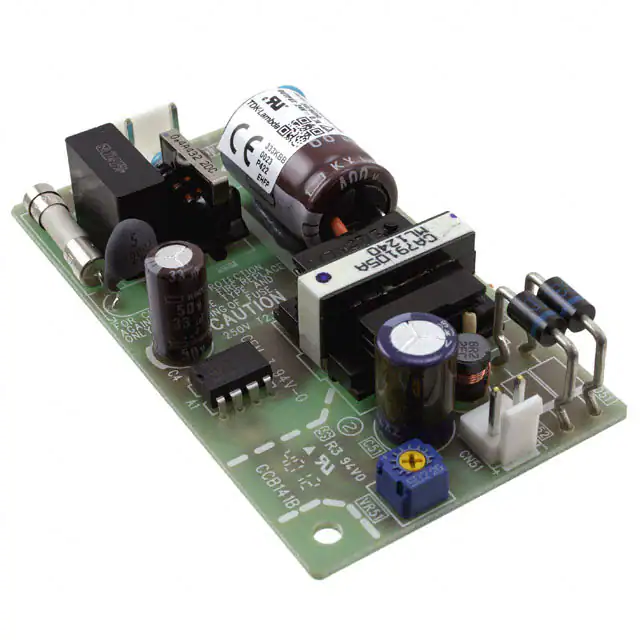

ZWS15B-24AC/DC CONVERTER 24V 15W TDK-Lambda |
125 |
|
规格书 |
ZWS15B (15W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) |
|

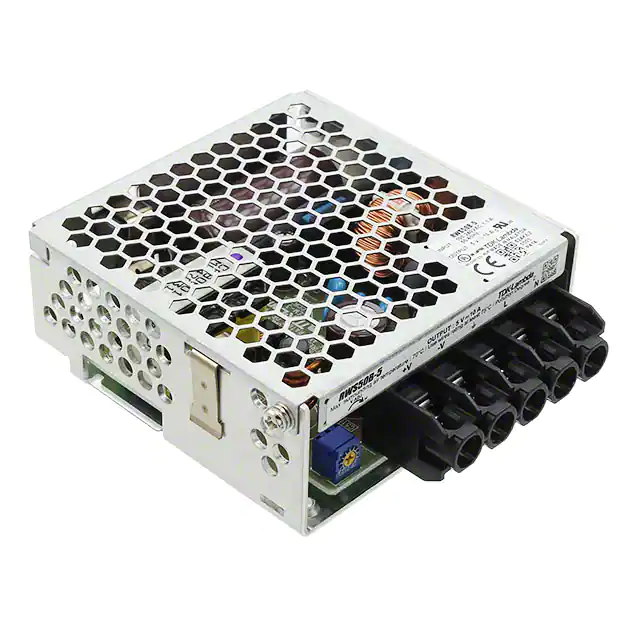

RWS50B-5AC/DC CONVERTER 5V 50W TDK-Lambda |
306 |
|
规格书 |
RWS-B (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.20" L x 3.23" W x 1.34" H (81.5mm x 82.0mm x 34.0mm) |
|
RWS50B-12AC/DC CONVERTER 12V 50W TDK-Lambda |
261 |
|
规格书 |
RWS-B (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.20" L x 3.23" W x 1.34" H (81.5mm x 82.0mm x 34.0mm) |
|

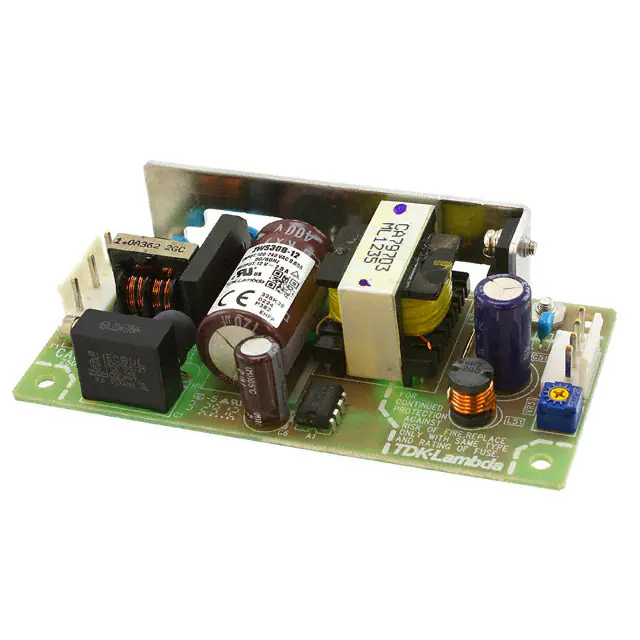

ZWS30B-12AC/DC CONVERTER 12V 30W TDK-Lambda |
403 |
|
规格书 |
ZWS30B (30W) | Tray | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.1mm x 25.9mm) |
|
CUT35-522AC/DC CONVERTER 5V +/-12V 35W TDK-Lambda |
108 |
|
规格书 |
CUT35 (35W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 850 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.06" H (101.6mm x 50.8mm x 27.0mm) |
|
HWS15A-3/AAC/DC CONVERTER 3.3V 15W TDK-Lambda |
206 |
|
规格书 |
HWS-A (15W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.15" L x 1.24" W x 3.23" H (80.0mm x 31.5mm x 82.0mm) |
