购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS200-48AC/DC CONVERTER 48V 200W TDK-Lambda |
825 |
|
规格书 |
LS (200W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) |
|
ZWS50BAF-24AC/DC CONVERTER 24V 50W TDK-Lambda |
180 |
|
规格书 |
ZWS50BAF (50W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.20" L x 1.97" W x 1.02" H (132.0mm x 50.0mm x 26.0mm) |
|
CSS150-12AC/DC CONVERTER 12V 100W TDK-Lambda |
2,830 |
|
规格书 |
CSS150 (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W (150W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) |
|
CUS150M-24/BAC/DC CONVERTER 24V 120W TDK-Lambda |
250 |
|
规格书 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Baseplate, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) |
|
CUS150M-24/AAC/DC CONVERTER 24V 150W TDK-Lambda |
286 |
|
规格书 |
CUS150M (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (150W Forced Air) | ITE (Commercial), Medical | - | -20°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.57" H (116.0mm x 64.0mm x 39.7mm) |
|
|
CUS150M-18/AAC/DC CONVERTER 18V 150W TDK-Lambda |
1,293 |
|
规格书 |
CUS150M (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 150W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.57" H (116.0mm x 64.0mm x 39.7mm) |
|
HWS50A-15/AAC/DC CONVERTER 15V 50W TDK-Lambda |
794 |
|
规格书 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) |
|
CUT75-522AC/DC CONVERTER 5V +/-12V 75W TDK-Lambda |
2,589 |
|
规格书 |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
|

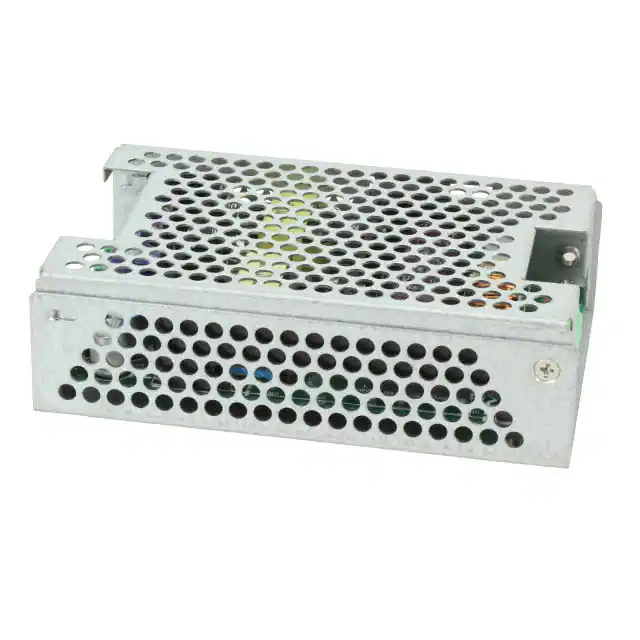

CUT75-5FF/TAAC/DC CONVERTER 5V +/-15V 75W TDK-Lambda |
1,241 |
|
规格书 |
CUT75 (75W) | Bulk | Active | Enclosed | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
|
|
CUT75-522/TAAC/DC CONVERTER 5V +/-12V 75W TDK-Lambda |
1,450 |
|
规格书 |
CUT75 (75W) | Bulk | Active | Enclosed | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
