| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
FSP300-57FCBAC/DC CNVRTR 3.3V 5V +/-12V 413W |
1,733 |
|
规格书 |
FSP300-57FCB (300W) | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 12 A | 14 A | 25 A | 300 mA | - | - | 413W | ITE (Commercial) | - | 50°C | Standby Output, Universal Input | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|
CUS200LD-12AC/DC CONVERTER 12V 120W |
3,989 |
|
规格书 |
CUS200LD (79-153W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 2.44" W x 1.22" H (160.0mm x 62.0mm x 31.0mm) |
|
S8FS-G05024CAC/DC CONVERTER 24V 50W |
3,607 |
|
规格书 |
S8FS-G (50W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) |
|
SE-600-48AC/DC CONVERTER 48V 600W |
3,371 |
|
规格书 |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) |
|
|
SE-600-24AC/DC CONVERTER 24V 600W |
200 |
|
规格书 |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) |
|

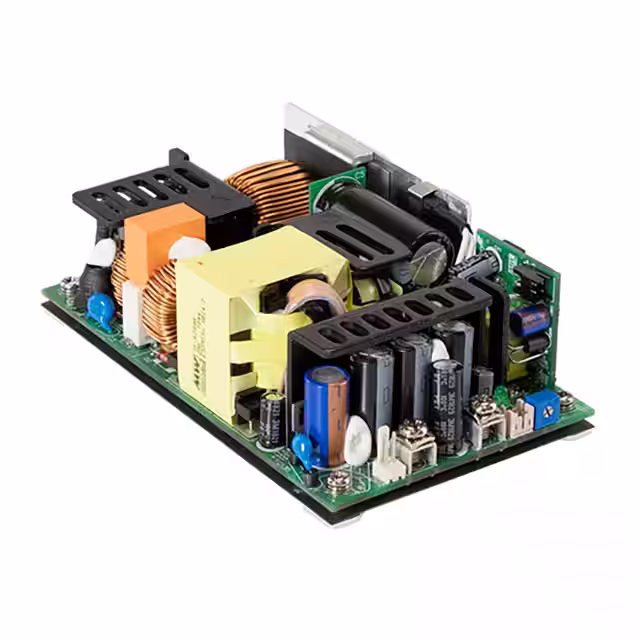

RPS-500-24AC/DC CONVERTER 24V 322W |
4,604 |
|
规格书 |
RPS-500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 322W (500W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) |
|
|
SE-600-36AC/DC CONVERTER 36V 598W |
1,363 |
|
规格书 |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 36V | - | - | - | - | - | 16.6 A | - | - | - | - | - | 598W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) |
|
HAD15-0.4-AGAC/DC CONVERTER +/-15V 12W |
152 |
|
规格书 |
Linear B | Bulk | Active | Linear | 2 | 100, 120, 220, 230, 240 VAC | 15V | -15V | - | - | - | - | 400 mA | 400 mA | - | - | - | - | 12W | ITE (Commercial) | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) |
|
HWS50A-12/AAC/DC CONVERTER 12V 50W |
696 |
|
规格书 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) |
|
HWS50A-24/AAC/DC CONVERTER 24V 50W |
615 |
|
规格书 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) |
|
HWS50A-5/AAC/DC CONVERTER 5V 50W |
4,246 |
|
规格书 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.24" W x 3.23" H (119.9mm x 31.5mm x 82.0mm) |
|
UHP-500-36AC/DC CONVERTER 36V 500W |
124 |
|
规格书 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 13.9 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|

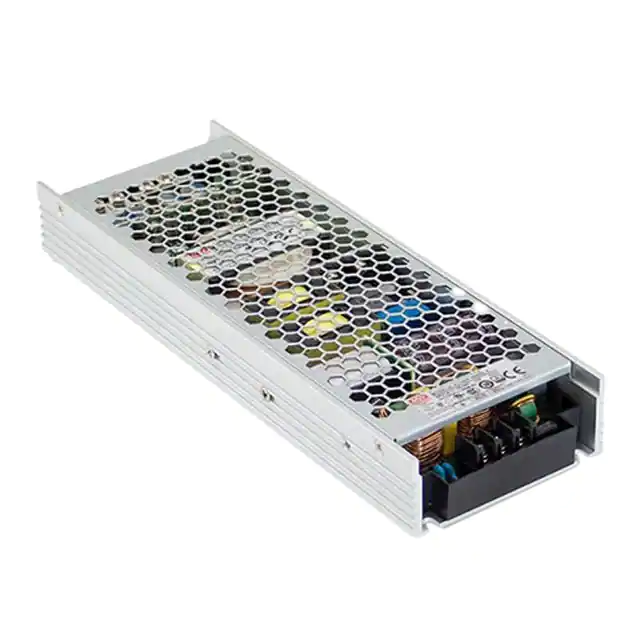

UHP-500-24AC/DC CONVERTER 24V 502W |
104 |
|
规格书 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 20.9 A | - | - | - | - | - | 502W | Household Appliances, ITE (Commercial) | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
UHP-500-48AC/DC CONVERTER 48V 502W |
4,429 |
|
规格书 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 10.45 A | - | - | - | - | - | 502W | Household Appliances, ITE (Commercial) | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
NGB250S24KAC/DC CONVERTER 24V 175W |
2,667 |
|
规格书 |
NGB250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | 4.5 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.40" H (101.6mm x 50.8mm x 35.6mm) |
|
FSP400-50UCBAC/DC CNVT 3.3V 5V +/-12V -5V |
4,254 |
|
规格书 |
FSP400-50UCB (400W) | Box | Active | Enclosed | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | -5V | - | 14 A | 16 A | 33 A | 300 mA | 100 mA | - | 526W | ITE (Commercial) | - | 0°C ~ 50°C | Standby Output, Universal Input | Chassis Mount | 7.48" L x 3.94" W x 1.59" H (190.0mm x 100.0mm x 40.5mm) |
|
RSP-500-5AC/DC CONVERTER 5V 450W |
226 |
|
规格书 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 90 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) |
|
|
RSP-500-27AC/DC CONVERTER 27V 502W |
2,565 |
|
规格书 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 18.6 A | - | - | - | - | - | 502W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) |
|
|
RSP-500-12AC/DC CONVERTER 12V 500W |
2,860 |
|
规格书 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 41.7 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) |
|
|
RSP-500-15AC/DC CONVERTER 15V 501W |
4,948 |
|
规格书 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 33.4 A | - | - | - | - | - | 501W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) |
