购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS200-15AC/DC CONVERTER 15V 200W |
142 |
|
规格书 |
LS (200W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) |
|
|
LS200-12AC/DC CONVERTER 12V 200W |
4,605 |
|
规格书 |
LS (200W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) |
|
LPS105-MAC/DC CONVERTER 24V 100W |
354 |
|
规格书 |
LPS100-M (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) |
|

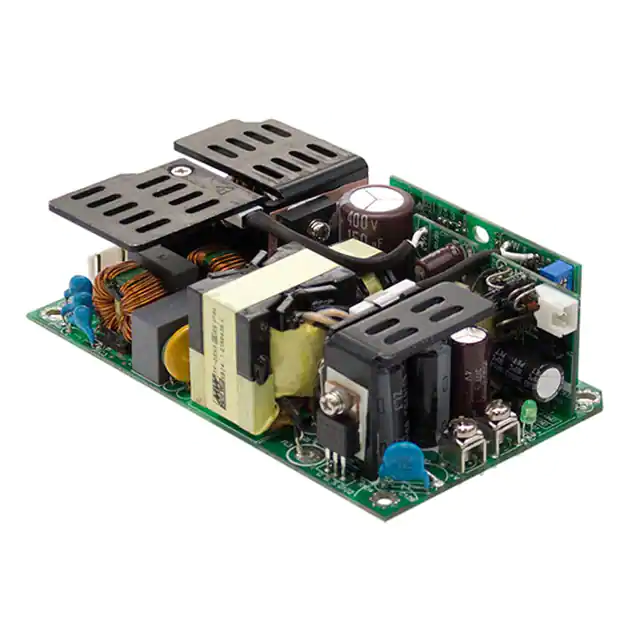

RPS-300-12AC/DC CONVERTER 12V 200W |
365 |
|
规格书 |
RPS-300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 200W (300W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.37" H (127.0mm x 76.2mm x 34.8mm) |
|

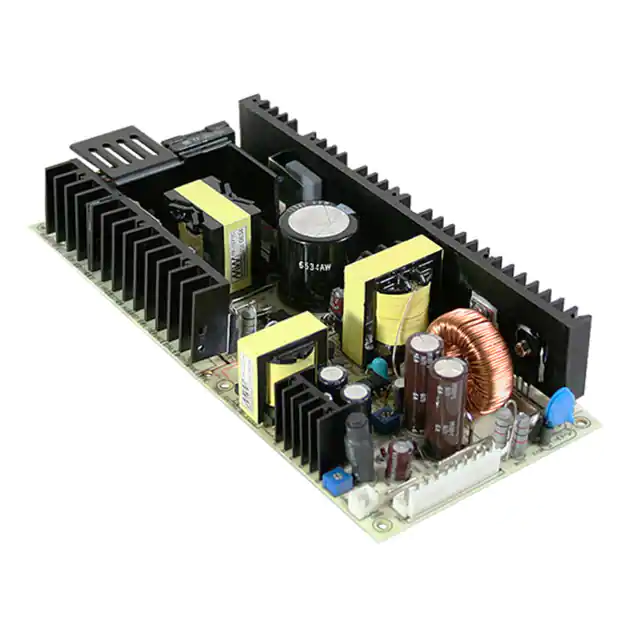

PID-250BAC/DC CONVERTER 24V 5V 251W |
275 |
|
规格书 |
PID-250 (250W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | 5V | - | - | - | - | 9.4 A | 5 A | - | - | - | - | 251W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.74" L x 3.74" W x 1.57" H (222.0mm x 95.0mm x 40.0mm) |
|
|
RPS-300-24AC/DC CONVERTER 24V 200W |
268 |
|
规格书 |
RPS-300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W (300W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.37" H (127.0mm x 76.2mm x 34.8mm) |
|
RAC150-24SG/OFAC/DC CONVERTER 24V 125W |
2,436 |
|
规格书 |
POWERLINE RAC150-G (150W) | Box | Active | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 125W (150W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|

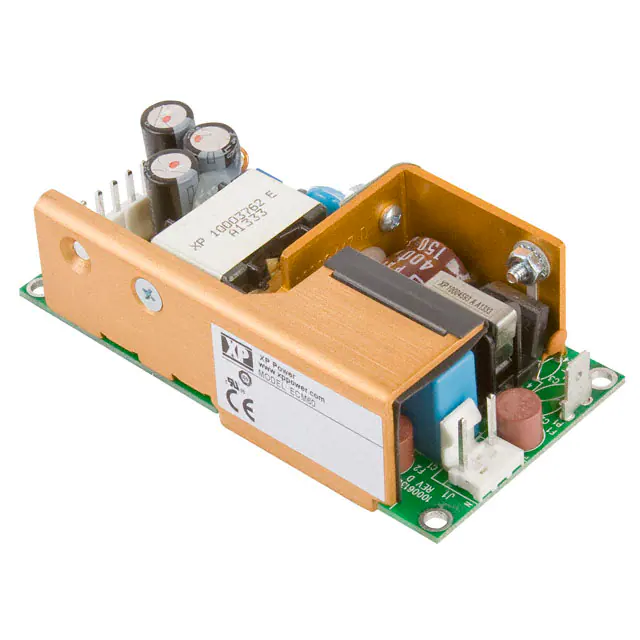

ECM60UT31AC/DC CONVERTER 5V +/-12V 60W |
418 |
|
规格书 |
ECM (60W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 500 mA | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|

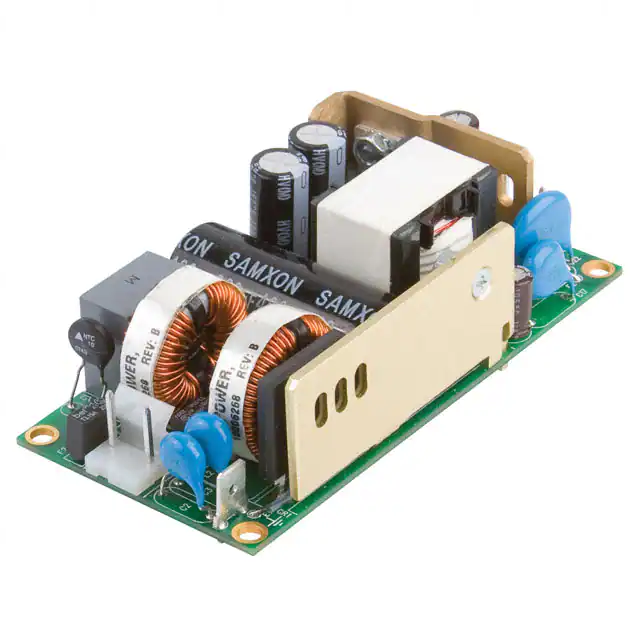

ECS100US12AC/DC CONVERTER 12V 80W |
5,185 |
|
规格书 |
ECS (100W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
ECS100US24AC/DC CONVERTER 24V 80W |
1,779 |
|
规格书 |
ECS (100W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
ECS100US15AC/DC CONVERTER 15V 80W |
1,594 |
|
规格书 |
ECS (100W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
ECS100US28AC/DC CONVERTER 28V 80W |
659 |
|
规格书 |
ECS (100W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
ECS100US48AC/DC CONVERTER 48V 80W |
213 |
|
规格书 |
ECS (100W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
ECS100US18AC/DC CONVERTER 18V 80W |
107 |
|
规格书 |
ECS (100W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 18V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
LS200-5AC/DC CONVERTER 5V 200W |
3,277 |
|
规格书 |
LS (200W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) |
|
OFM1005128AC/DC CONVERTER 24V 100W |
2,932 |
|
规格书 |
OFM100 (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.02" L x 2.01" W x 1.26" H (102.0mm x 51.0mm x 32.0mm) |
|

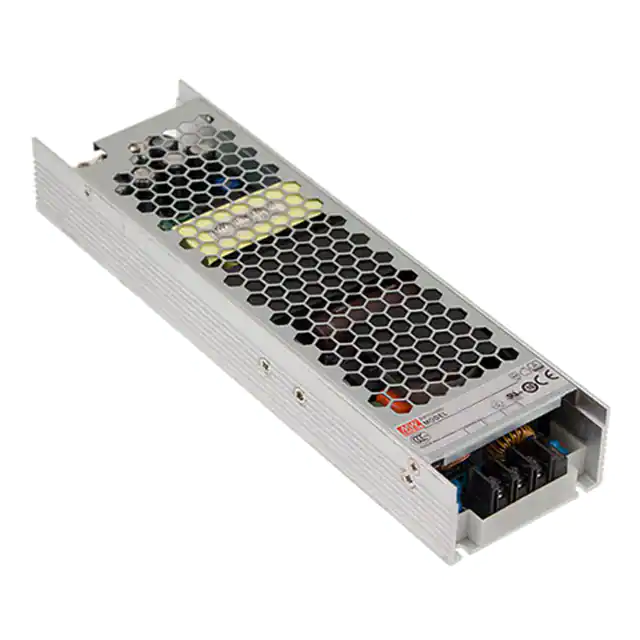

UHP-350-12AC/DC CONVERTER 12V 350W |
1,759 |
|
规格书 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) |
|
|
UHP-350-24AC/DC CONVERTER 24V 350W |
243 |
|
规格书 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) |
|
|
UHP-350-48AC/DC CONVERTER 48V 350W |
2,895 |
|
规格书 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) |
|
ADS-15524AC/DC CONVERTER 24V 5V 154W |
842 |
|
规格书 |
ADS-155 (155W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 124 ~ 370 VDC | 24V | 5V | - | - | - | - | 5.8 A | 3 A | - | - | - | - | 154W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm) |
