购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS74US-480DSPD TYPE 1 550VAC MCOV 1 POLE |
5,644 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 550VAC | - | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
DS74US-600DSPD TYPE 1 840VAC MCOV 1 POLE |
2,883 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 840VAC | 20 kA | 75 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
2736490000SPD TYPE 2 300VAC MCOV 4 POLE |
3,485 |
|
规格书 |
- | Box | Active | Type 2 | Base + Module | 4 | 300VAC | 20 kA | 50 kA | 200 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
DS74US-277Y/GSPD TYPE 1 840VAC MCOV 1 POLE |
6,775 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 840VAC | 20 kA | 75 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
|
SP100-T2F-1203Y-TTSPD TYPE 2 150VAC MCOV 1 POLE |
5,421 |
|
规格书 |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-240SP-TTSPD TYPE 2 300VAC MCOV 1 POLE |
4,778 |
|
规格书 |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2773Y-TTSPD TYPE 2 320VAC MCOV 1 POLE |
5,631 |
|
规格书 |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-4803D-TTSPD TYPE 2 550VAC MCOV 1 POLE |
3,819 |
|
规格书 |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 550VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2403D-TTSPD TYPE 2 320VAC MCOV 1 POLE |
8,201 |
|
规格书 |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SPD2-PV750-MSPD TYP 1/TYP 2 1.5KV MCOV 1POLE |
3,552 |
|
- |
SPD2 PV | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.5kV | 20 kA | 40 kA | 65 kA | 4 kV | 4.8 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
2905465SPD TYPE 1/TYPE 2 350VAC MCOV |
7,156 |
|
规格书 |
FLT | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350VAC | 25 kA | 100 kA | 25 kA | 1.2 kV | 1.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|

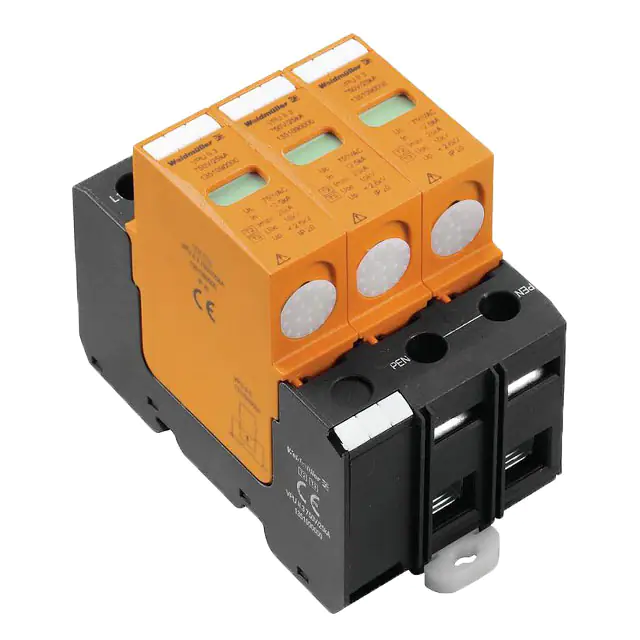

2025600000SPD TYPE 1 550VAC MCOV 1 POLE |
7,124 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 550VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
2024830000SPD TYPE 1 275VAC MCOV 1 POLE |
4,152 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|

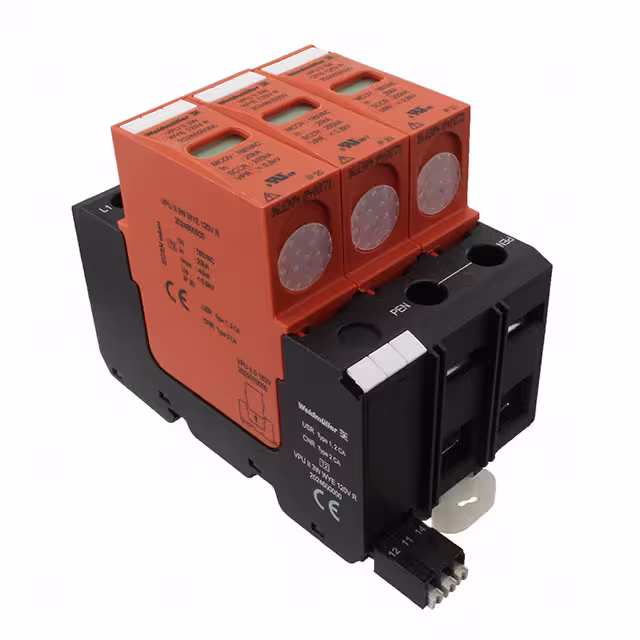

2024600000SPD TYPE 1 180VAC MCOV 1 POLE |
5,389 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 180VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|

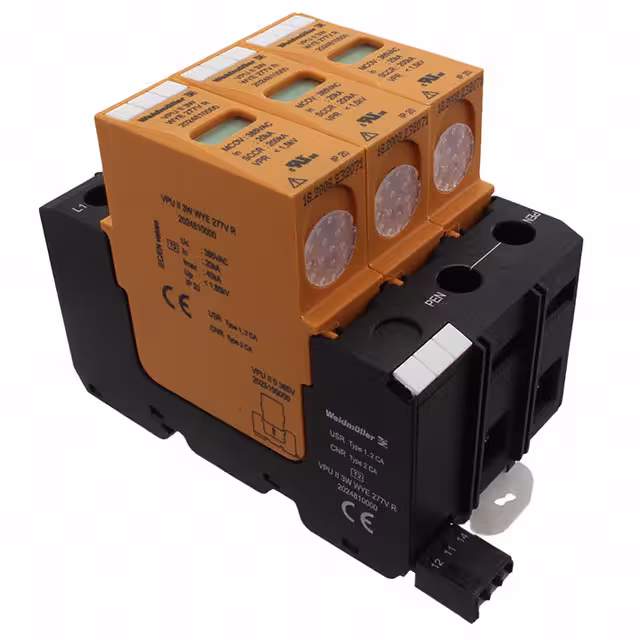

2024810000SPD TYPE 1 385VAC MCOV 1 POLE |
4,491 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
2910375SPD TYPE 2 385VAC MCOV 1 POLE |
4,287 |
|
规格书 |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 40 kA | 40 kA | 25 kA | 2.5 kV | 4 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
SP100-T2F-1201P-LCSPD TYPE 2 150VAC MCOV 1 POLE |
5,963 |
|
规格书 |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
BSPMA3240DLGRSPD TYPE 1/TYPE 4 550VAC MCOV |
6,952 |
|
规格书 |
BSPMA | Bulk | Active | Type 1, Type 4 | Base + Module | 3 | 550VAC | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -35°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CSA, UL |
|
|
15617.2SPD TYPE 1 255VAC MCOV 1 POLE |
6,874 |
|
规格书 |
CP DS | Box | Active | Type 1 | Module Only | 1 | 255VAC | 30 kA | 70 kA | - | 400 V | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

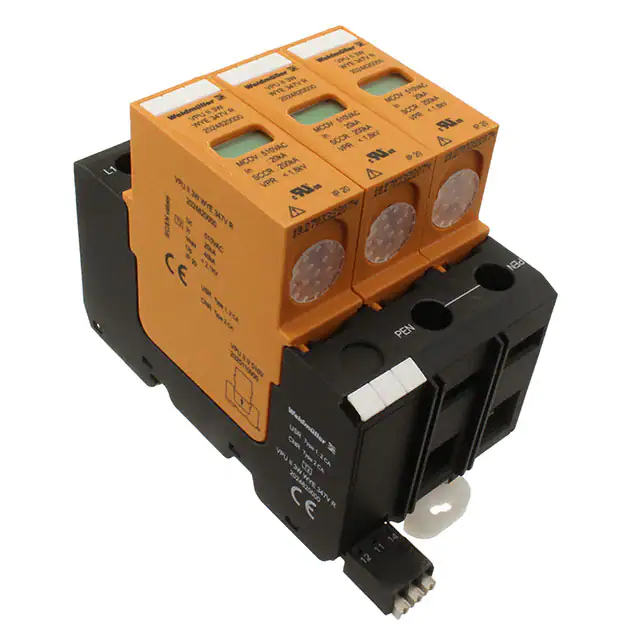

2024820000SPD TYPE 2 510VAC MCOV 1 POLE |
3,516 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 510VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | -40°C ~ 70°C | Remote Signaling Contacts | - | cURus |
