购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD2-350-4P0SPD TYP 1/TYP 2 350V MCOV 4 POLE |
2,777 |
|
规格书 |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
BSPM2240S3GRSPD TYPE 2 550VAC MCOV 2 POLE |
8,023 |
|
规格书 |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 2 | 550VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | - | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL |
|
|
BSPM2480S3GRSPD TYPE 2 770VAC MCOV 2 POLE |
5,784 |
|
规格书 |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 2 | 770VAC | 20 kA | 40 kA | 200 kA | 2.5 kV | - | - | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL |
|
|
2736480000SPD TYPE 2 300VAC MCOV 2 POLE |
2,852 |
|
规格书 |
- | Box | Active | Type 2 | Base + Module | 2 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
2906002SPD 28VDC MCOV 1 POLE |
2,909 |
|
规格书 |
PT | Bulk | Active | - | Module Only | 1 | 28VDC | 10 kA | 20 kA | - | - | 1 kV | -40°C ~ 85°C | - | Base Mount | - |
|
|
AGDN12040RSPD TYPE 1 150VAC MCOV 4 POLE |
3,988 |
|
规格书 |
- | Bulk | Active | Type 1 | Base + Module | 4 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN24040RSPD TYPE 1 300VAC MCOV 4 POLE |
9,213 |
|
规格书 |
- | Bulk | Active | Type 1 | Base + Module | 4 | 300VAC | 20 kA | - | 150 kA | 900 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN27740RSPD TYPE 1 350VAC MCOV 4 POLE |
8,104 |
|
规格书 |
- | Bulk | Active | Type 1 | Base + Module | 4 | 350VAC | 20 kA | - | 200 kA | 1 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
SPD2-350-3P1SPD TYP 1/TYP 2 350V MCOV 3 POLE |
2,881 |
|
规格书 |
SPD2 3P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
1260-3SMG-277SPD 350VAC MCOV 3 POLE |
4,092 |
|
规格书 |
1260 | Box | Active | - | Base + Module | 3 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-3SMG-127SPD 180VAC MCOV 3 POLE |
9,819 |
|
规格书 |
1260 | Box | Active | - | Base + Module | 3 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2800810SPD 37VAC/53VDC MCOV 1 POLE |
2,819 |
|
规格书 |
PT | Bulk | Active | - | Module Only | 1 | 37VAC, 53VDC | - | 20 kA | - | - | - | -40°C ~ 70°C | - | Base Mount | EAC |
|
|
2800802SPD 4VAC/6VDC MCOV 1 POLE |
6,640 |
|
规格书 |
PT | Bulk | Active | - | Module Only | 1 | 4VAC, 6VDC | - | - | - | - | - | -40°C ~ 70°C | - | Base Mount | - |
|
|
2800814SPD 37VAC/53VDC MCOV 1 POLE |
6,744 |
|
规格书 |
PT | Bulk | Active | - | Module Only | 1 | 37VAC, 53VDC | - | - | - | - | - | -40°C ~ 70°C | - | Base Mount | - |
|

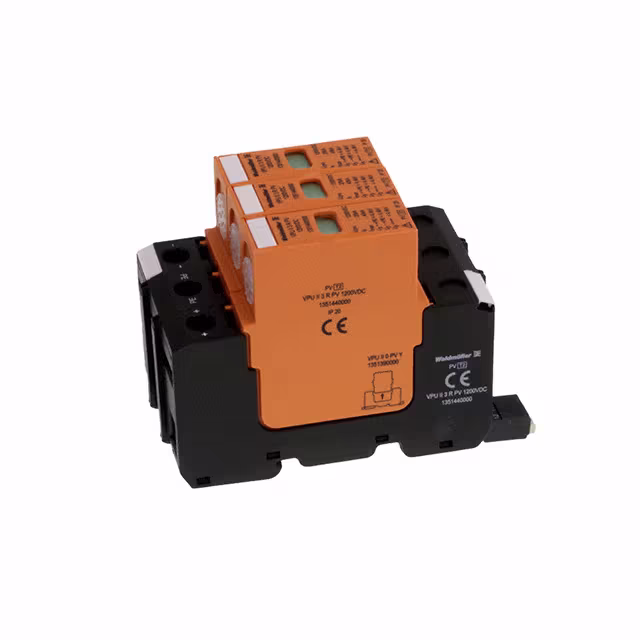

1351440000SPD TYPE 2 1.2KVDC MCOV 1 POLE |
3,799 |
|
规格书 |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 1.2kVDC | 20 kA | 40 kA | - | - | - | -40°C ~ 70°C | Remote Signaling Contacts | DIN Rail | CE, EAC |
|

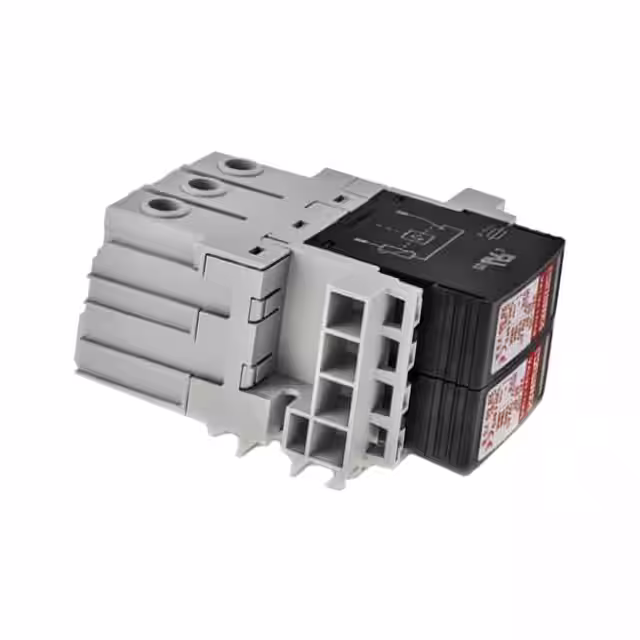

2909630SPD TYP2 75VAC/100VDC MCOV 1POLE |
4,763 |
|
规格书 |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 75VAC, 100VDC | 15 kA | 40 kA | 25 kA | - | 550 V | -40°C ~ 80°C | - | DIN Rail | - |
|
|
2801515SPD 21VAC/30VDC MCOV 1 POLE |
2,417 |
|
规格书 |
PT | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | - | - | - | - | - | -40°C ~ 70°C | - | DIN Rail | ATEX, CCC, cUL, cULus, UL |
|
|
SPD2-480-4P0SPD TYP 1/TYP 2 480V MCOV 4 POLE |
3,799 |
|
规格书 |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 480V | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
2025980000SPD TYPE 2 180VAC MCOV 1 POLE |
9,745 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 180VAC | 20 kA | 40 kA | 200 kA | 800 V | - | -40°C ~ 70°C | - | - | cURus |
|
|
1260-4S-400SPD 440VAC MCOV 4 POLE |
3,330 |
|
规格书 |
1260 | Box | Active | - | Base + Module | 4 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
