购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

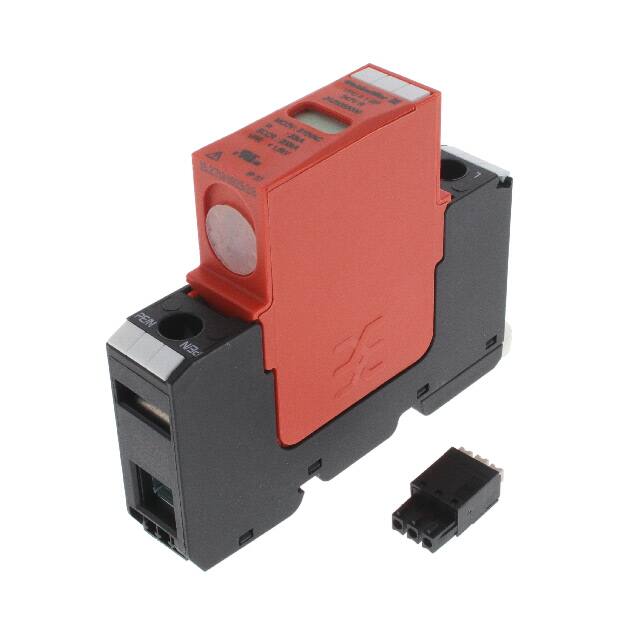

2025060000SPD TYPE 2 510VAC MCOV 1 POLE |
5,425 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 510VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | -40°C ~ 70°C | Remote Signaling Contacts | - | cURus |
|

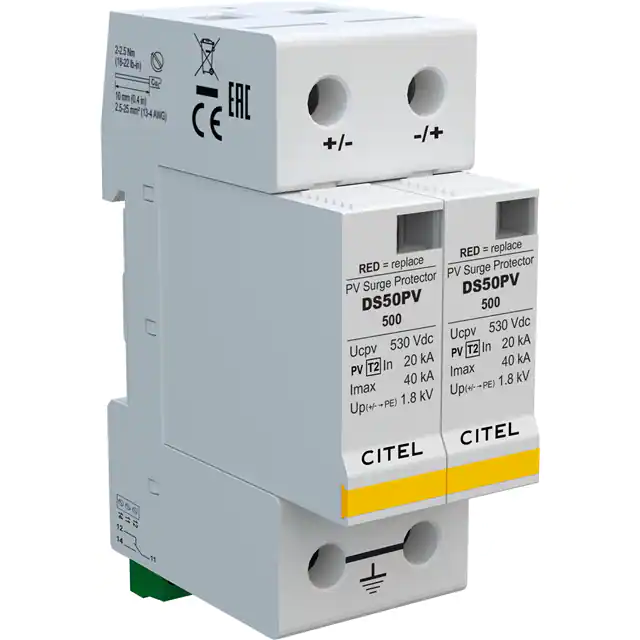

DS50PVS-500SPD TYPE 2/TYPE 4 530VDC MCOV |
6,106 |
|
- |
- | Active | Type 2, Type 4 | Base + Module | 2 | 530VDC | 20 kA | - | - | - | 1.8 kV | -40°C ~ 85°C | - | DIN Rail | CE, CSA, cURus | |
|
DS42S-120/GSPD TYPE 4 300VAC MCOV 1 POLE |
4,254 |
|
- |
- | Active | Type 4 | Base + Module | 1 | 300VAC | - | 40 kA | - | - | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | EAC, TUV, UR | |
|
DS42S-230/GSPD TYPE 4 480VAC MCOV 1 POLE |
8,955 |
|
- |
- | Active | Type 4 | Base + Module | 1 | 480VAC | - | 40 kA | - | - | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | EAC, TUV, UR | |
|
DS42S-230SPD TYPE 4 480VAC MCOV 1 POLE |
6,011 |
|
- |
- | Active | Type 4 | Base + Module | 1 | 480VAC | 20 kA | 80 kA | - | - | - | -35°C ~ 60°C | - | DIN Rail | EAC, TUV, UR | |
|
2800785SPD 4VAC/6VDC MCOV 1 POLE |
9,191 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 4VAC, 6VDC | 10 kA | 20 kA | - | - | 140 V | -40°C ~ 70°C | - | DIN Rail | UL |
|
|
2801512SPD 21VAC/30VDC MCOV 1 POLE |
9,921 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 10 kA | 20 kA | - | - | 1.5 kV | -40°C ~ 70°C | - | DIN Rail | ATEX, CCC, cUL, cULus, UL |
|
|
2801286SPD 4VAC/6VDC MCOV 1 POLE |
4,033 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 4VAC, 6VDC | 10 kA | 20 kA | - | - | 140 V | -40°C ~ 70°C | - | DIN Rail | UL |
|
|
2801290SPD 180VDC MCOV 1 POLE |
4,401 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 180VDC | 10 kA | 20 kA | - | - | 700 V | -40°C ~ 70°C | - | DIN Rail | cUL, UL |
|

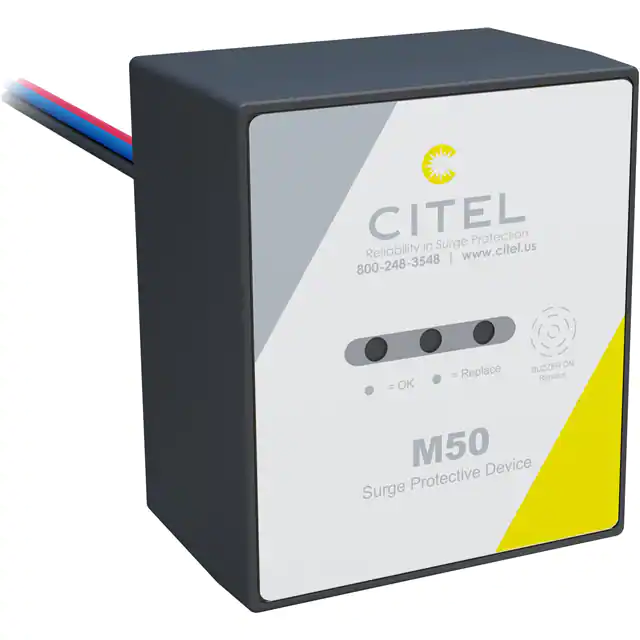

M50-480D-BSPD TYPE 1 560VAC MCOV 1 POLE |
7,909 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 560VAC | 20 kA | 50 kA | 150 kA | 2.5 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|

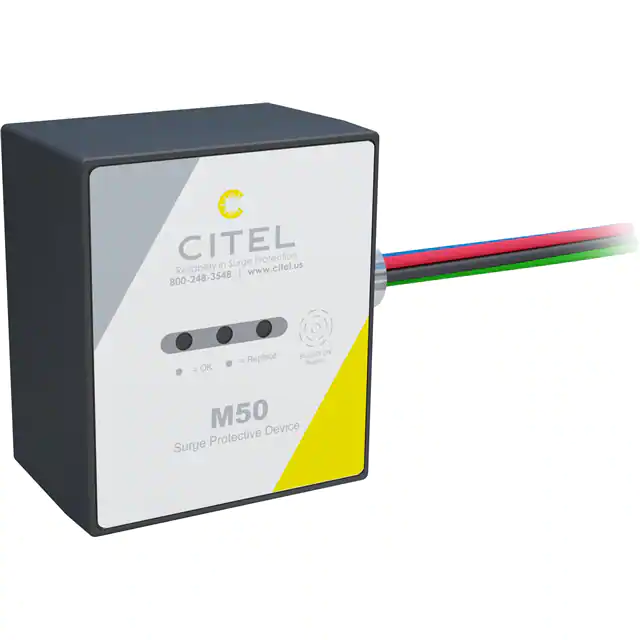

M50-480D-ASPD TYPE 1/TYPE 2 560VAC MCOV |
8,343 |
|
规格书 |
- | Active | Type 1, Type 2 | Module Only | 1 | 560VAC | 20 kA | 50 kA | 150 A | 2.5 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-120S-ASPD TYPE 1 140VAC MCOV 1 POLE |
7,990 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 140VAC | 20 kA | 50 kA | 150 kA | 1.2 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-120S-BSPD TYPE 1 140VAC MCOV 1 POLE |
4,918 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 140VAC | 20 kA | 50 kA | 150 kA | 1.2 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-120T-ASPD TYPE 1 280VAC MCOV 1 POLE |
6,623 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 280VAC | 20 kA | 50 kA | 150 kA | 1.2 kV | - | -35°C ~ 85°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-120Y-ASPD TYPE 1 280VAC MCOV 3 POLE |
8,361 |
|
规格书 |
- | Active | Type 1 | Module Only | 3 | 280VAC | - | - | - | - | - | -40°C ~ 85°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-277Y-BSPD TYPE 1/TYPE 2 560VAC MCOV |
3,936 |
|
规格书 |
- | Active | Type 1, Type 2 | Module Only | 1 | 560VAC | 20 kA | 50 kA | 150 kA | 2.5 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-277Y-ASPD TYPE 1 560VAC MCOV 1 POLE |
8,597 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 560VAC | 20 kA | 50 kA | 150 kA | 2.5 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-120T-BSPD TYPE 1 280VAC MCOV 1 POLE |
5,178 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 280VAC | 20 kA | 50 kA | 150 kA | 1.2 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
M50-120Y-BSPD TYPE 1 280VAC MCOV 1 POLE |
6,098 |
|
规格书 |
- | Active | Type 1 | Module Only | 1 | 280VAC | 20 kA | 50 kA | 150 kA | 1.2 kV | - | -35°C ~ 80°C | Visual Life Indicator | Chassis Mount | UL | |
|
|
BSPH31000YPVRSPD TYPE 2/TYPE 4 1.17KVDC MCOV |
4,957 |
|
- |
BSPH | Bulk | Obsolete | Type 2, Type 4 | Base + Module | 3 | 1.17kVDC | 12.5 kA | 40 kA | - | 1 kV | 4 kV | -40°C ~ 80°C | Remote Signaling Contacts | DIN Rail | CE, UL |
