购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSPG1255NPESPD TYPE 2 255VAC MCOV 1 POLE |
2,577 |
|
规格书 |
BSPG | Bulk | Obsolete | Type 2 | Base + Module | 1 | 255VAC | 20 kA | 40 kA | - | - | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, KEMA |
|
|
TSJ-5GBEPOE-LCDATA SURGE PROTECTOR, 5 GIGABIT |
5,331 |
|
- |
TSJ | Bag | Active | - | Module Only | 1 | - | - | - | - | - | - | -40°C ~ 75°C | - | DIN Rail | - |
|
|
HEPD25SPD TYPE 1 150V MCOV 1 POLE |
8,926 |
|
规格书 |
- | Box | Active | Type 1 | Module Only | 1 | 150V | 10 kA | - | - | - | - | -40°C ~ 65°C | - | Free Hanging | - |
|
|
HEPD25CSPD TYPE 2 150VAC MCOV 1 POLE |
2,637 |
|
规格书 |
- | Box | Active | Type 2 | Module Only | 1 | 150VAC | 10 kA | - | 22 kA | 600 V | - | - | - | Free Hanging | - |
|
|
HEPD25WSPD TYPE 1 150VAC MCOV 1 POLE |
8,409 |
|
规格书 |
- | Box | Active | Type 1 | Module Only | 1 | 150VAC | 10 kA | - | 22 kA | - | - | - | - | Free Hanging | - |
|
|
SDSA1175SPD 150V MCOV 1 POLE |
8,135 |
|
规格书 |
- | Box | Active | - | Module Only | 1 | 150V | 10 kA | 36 kA | 25 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA1175TSPD 150V MCOV 1 POLE |
5,448 |
|
规格书 |
- | Box | Active | - | Module Only | 1 | 150V | 10 kA | 36 kA | 25 kA | - | - | - | - | Panel Mount | - |
|
|
I2R-T2DC-500S-LCSPD TYPE 2 560VDC MCOV 1 POLE |
8,834 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 1 | 560VDC | 20 kA | - | 100 kA | 1.5 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|

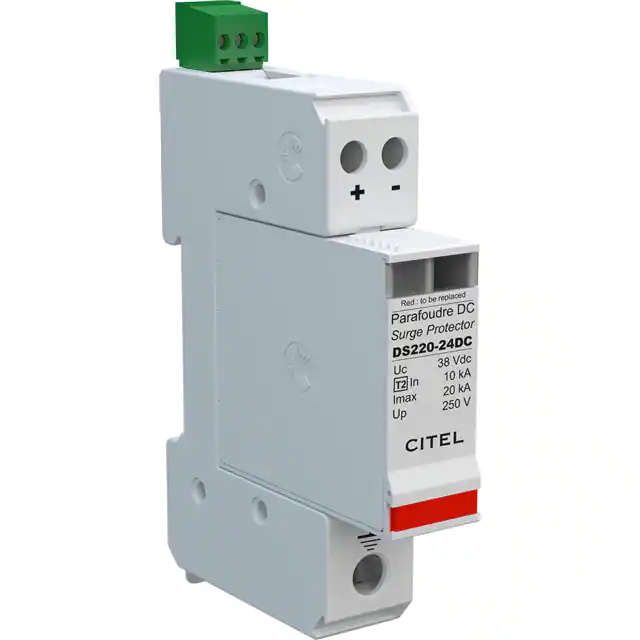

DS220S-24DCSPD TYPE 4 38VDC MCOV 2 POLE |
9,828 |
|
规格书 |
- | Active | Type 4 | Module Only | 2 | 38VDC | 10 kA | 20 kA | - | - | - | -35°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | UL | |
|
DS41S-230SPD TYPE 2 255VAC MCOV 1 POLE |
4,638 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 255VAC | 20 kA | 40 kA | 25 kA | - | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, EAC, TUV, UR | |
|
DS41S-480SPD TYPE 1 550VAC MCOV 1 POLE |
7,708 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 550VAC | - | - | 100 kA | 1.8 kV | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | - | |
|
DS41S-400SPD TYPE 2 440VAC MCOV 1 POLE |
6,624 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 440VAC | 20 kA | - | 25 kA | - | - | - | Remote Signaling Contacts | DIN Rail | CE, EAC, TUV, UL | |
|
DS41S-600AC Din Rail Protector, 600V |
7,996 |
|
- |
- | Active | - | Base + Module | 1 | - | 20 kA | 40 kA | - | - | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | - | |
|
|
BSPM1120S2GSPD TYPE 2 275VAC MCOV 1 POLE |
2,109 |
|
- |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 200 kA | 1 kV | - | - | Thermally Protected | DIN Rail | CE, UL |
|
|
2906806SPD 21VAC/30VDC MCOV 1 POLE |
8,557 |
|
规格书 |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 10 kA | - | - | 1.1 kV | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
SPD2-075-1P0SPD TYPE 1/TYP 2 75V MCOV 1 POLE |
2,457 |
|
规格书 |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75V | 20 kA | 50 kA | 100 kA | 330 V | 800 V | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
BPMA180ULSPD TYPE 2 360V MCOV 4 POLE |
8,616 |
|
规格书 |
BUSSMANN | Bulk | Active | Type 2 | Base + Module | 4 | 360V | 20 kA | 50 kA | 300 kA | 1.2 kV | - | -40°C ~ 90°C | Visual Life Indicator | DIN Rail | - |
|
|
2730560000SPD TYPE 2 350VAC MCOV 1 POLE |
9,711 |
|
规格书 |
- | Box | Active | Type 2 | Module Only | 1 | 350VAC | 20 kA | 50 kA | 200 kA | - | - | -40°C ~ 85°C | - | Base Mount | CE, cULus, VDE |
|
|
2800624SPD TYPE 2 1.17KVDC MCOV 1 POLE |
4,705 |
|
规格书 |
VAL-MS | Bulk | Active | Type 2 | Module Only | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 1.9 kV | -55°C ~ 70°C | - | Base Mount | CB, cUR, cURus, EAC, UR |
|
|
2800623SPD TYPE 2 800VDC MCOV 1 POLE |
8,395 |
|
规格书 |
VAL-MS | Bulk | Active | Type 2 | Module Only | 1 | 800VDC | 15 kA | 40 kA | 50 kA | 2 kV | 1.4 kV | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
