购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1220-20-I4-230M3SPD TYP 2/TYP 4 275V MCOV 1 POLE |
3,299 |
|
规格书 |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 275V | 50 kA | 20 kA | 200 kA | 800 V | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
|
LSP05240LLPSPD TYPE 2/TYPE 4 275VAC MCOV |
7,446 |
|
规格书 |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 275VAC | 5 kA | 10 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
BSP3-208/240SPD 275VAC/350VDC MCOV 3 POLE |
9,332 |
|
规格书 |
BSP3 | Box | Active | - | Module Only | 3 | 275VAC, 350VDC | 10 kA | 10 kA | - | - | - | - | - | Free Hanging | cURus, UL |
|
|
LSP3-20-480SPD TYPE 4 550VAC MCOV 1 POLE |
6,324 |
|
- |
- | Bulk | Active | Type 4 | Module Only | 1 | 550VAC | 10 kA | 20 kA | - | - | - | 85°C | Visual Life Indicator | Free Hanging | cURus |
|
LSP05120PMSPD TYPE 2/TYPE 4 150VAC MCOV |
9,622 |
|
规格书 |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 150VAC | 5 kA | 10 kA | - | - | 800 V | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP05480LLPMSPD TYPE 2/TYPE 4 510VAC MCOV |
3,140 |
|
规格书 |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 510VAC | 5 kA | 10 kA | - | - | 1.9 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP3-20L-UNVSPD TYPE 4 385VAC MCOV 1 POLE |
8,835 |
|
- |
- | Bulk | Active | Type 4 | Module Only | 1 | 385VAC | 10 kA | 20 kA | - | - | - | 85°C | Visual Life Indicator | Free Hanging | cURus |
|

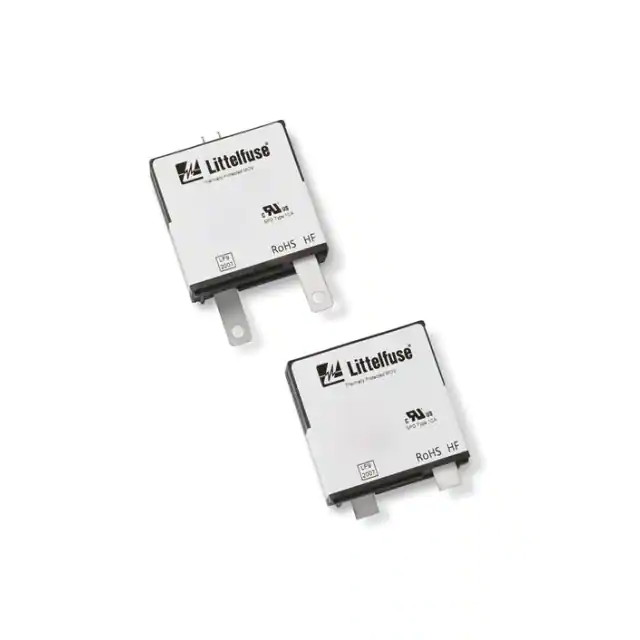

LST1505VL1NT4SPD TYP 1/TYP 2/TYP4 150VAC MCOV |
8,756 |
|
规格书 |
LST | Box | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
|
LST1805VL1NT4SPD TYP 1/TYP 2/TYP4 180VAC MCOV |
7,276 |
|
规格书 |
LST | Box | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 180VAC | 20 kA | - | 200 kA | 800 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
|
1220-20-I5-230M4SPD TYP 2/TYP 4 275V MCOV 1 POLE |
8,113 |
|
规格书 |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 275V | 20 kA | 75 kA | 200 kA | 800 V | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
|
|
1220-20-I3-600M3SPD TYP 2/TYP 4 690V MCOV 1 POLE |
8,738 |
|
规格书 |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 690V | 40 kA | 20 kA | 200 kA | 2 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
|
|
LST3205VL1NT4SPD TYP 1/TYP 2/TYP4 320VAC MCOV |
9,351 |
|
规格书 |
LST | Box | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 320VAC | 20 kA | - | 200 kA | 1 kV | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
LST1805VL2NT1SPD TYP 1/TYP 2/TYP4 180VAC MCOV |
2,541 |
|
规格书 |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 180VAC | 20 kA | - | 200 kA | 800 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
|
LSP10240PX3316SPD TYPE 2 275VAC MCOV 1 POLE |
6,652 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP10240PX3333SPD TYPE 2 275VAC MCOV 1 POLE |
7,636 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP10277PX3316SPD TYPE 2 320VAC MCOV 1 POLE |
8,225 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP10277PX3333SPD TYPE 2 320VAC MCOV 1 POLE |
8,219 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP10240SX3316SPD TYPE 2 275VAC MCOV 1 POLE |
6,419 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP10240SX3333SPD TYPE 2 275VAC MCOV 1 POLE |
5,441 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
LSP10277SX3316SPD TYPE 2 320VAC MCOV 1 POLE |
5,945 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
