购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSP10240PSPD TYPE 2 275VAC MCOV 1 POLE |
110 |
|
规格书 |
LSP | Tray | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
BSP3-277SPD 320VAC/420VDC MCOV 3 POLE |
155 |
|
规格书 |
BSP3 | Box | Active | - | Module Only | 3 | 320VAC, 420VDC | 10 kA | 10 kA | - | - | - | - | - | Free Hanging | cURus, UL |
|

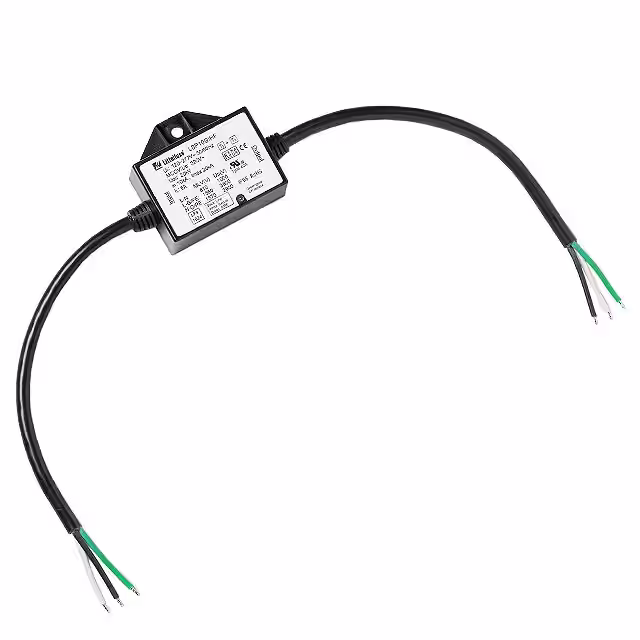

LSP10GIHP277SSPD TYPE 2/TYPE 3 320VAC MCOV |
497 |
|
规格书 |
LSP | Bulk | Active | Type 2, Type 3 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 3.8 kV | -45°C ~ 75°C | Thermally Protected | Screw | cURus, KEMA-KEUR, UL |
|
1320-S-110SPD TYPE 2/TYPE 4 150VDC MCOV |
1,132 |
|
规格书 |
1320 | Bulk | Active | Type 2, Type 4 | Base + Module | 2 | 150VDC | 20 kA | 40 kA | - | - | 500 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, CSA, UR |
|
2907916SPD TYPE 3 34VAC MCOV 1 POLE |
1,932 |
|
规格书 |
PLT-SEC | Bulk | Active | Type 3 | Base + Module | 1 | 34VAC | 1 kA | 4 kA | 10 kA | - | 600 V | -40°C ~ 80°C | - | DIN Rail | cUL, EAC, UL |
|
LSP10GI277SSPD TYPE 2 320VAC MCOV 1 POLE |
377 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -40°C ~ 85°C | Thermally Protected | Screw | UL |
|

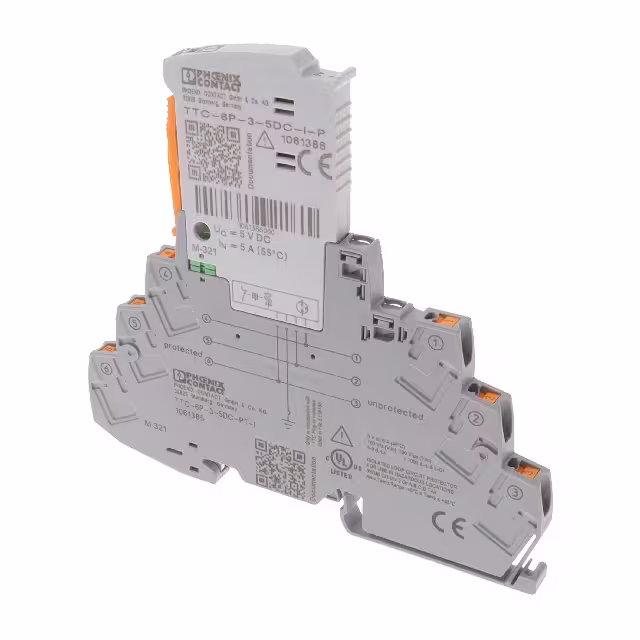

1061385SPD 3VAC/5VDC MCOV 1 POLE |
135 |
|
规格书 |
- | Bulk | Active | - | Base + Module | 1 | 3VAC, 5VDC | 5 kA | 10 kA | - | - | 900 V | -40°C ~ 85°C | - | DIN Rail | cUL, UL |
|

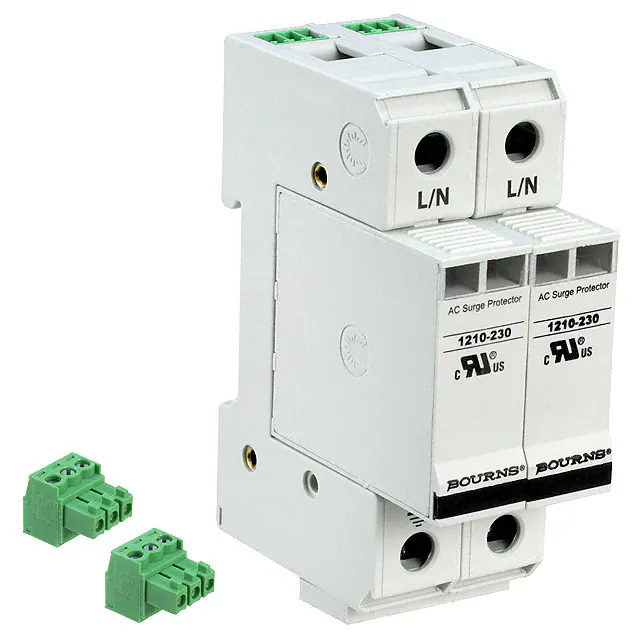

1210-2S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
2,859 |
|
规格书 |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 2 | 275VAC | 20 kA | 100 kA | 100 kA | 900 V | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|

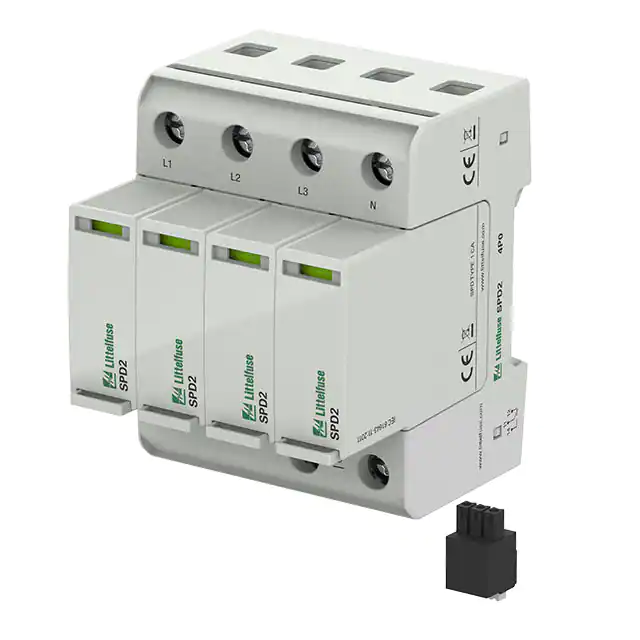

SPD2-550-4P0-RSPD TYPE 1/TYPE 2 550VAC MCOV |
128 |
|
规格书 |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 550VAC | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|

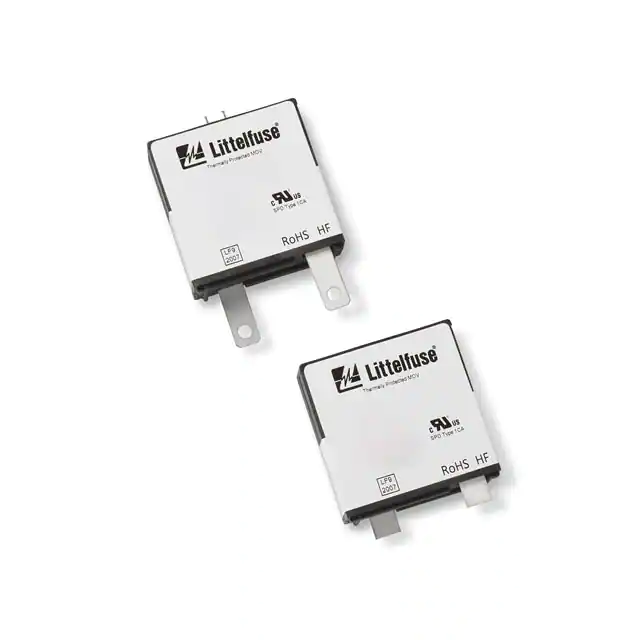

LST1505VL2NT1SPD TYP 1/TYP 2/TYP4 150VAC MCOV |
125 |
|
规格书 |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
|
LST2755VL2NT1SPD TYP 1/TYP 2/TYP4 275VAC MCOV |
776 |
|
规格书 |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 275VAC | 20 kA | - | 200 kA | 900 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
|
LST1507VL2NT1SPD TYP 1/TYP 2/TYP4 150VAC MCOV |
130 |
|
规格书 |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
LSP05G480SSPD TYPE 2 510VAC MCOV 1 POLE |
150 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 510VAC | 5 kA | 10 kA | - | - | - | -45°C ~ 85°C | Thermally Protected | - | cURus, IEC, IECEE, UL |
|
|
LSP05G347SSPD TYPE 2 420VAC MCOV 1 POLE |
145 |
|
规格书 |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 420VAC | 5 kA | 10 kA | - | - | - | -45°C ~ 85°C | Thermally Protected | - | cURus, IEC, IECEE, UL |
|
|
1220-20-I4-120M2SPD TYPE 1/TYPE 4 150VAC MCOV |
1,191 |
|
规格书 |
1220 | Box | Active | Type 1, Type 4 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 200 kA | 600 V | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
|
|
ICL-16LSPD 264VAC MCOV 1 POLE |
4,415 |
|
规格书 |
ICL | Box | Active | - | Module Only | 1 | 264VAC | - | - | - | - | - | -30°C ~ 70°C | Thermally Protected | DIN Rail | CE, EAC |
|
|
1250A-1S-120SPD TYP 2/TYP 4 150V MCOV 1 POLE |
101 |
|
规格书 |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 1 | 150V | 20 kA | 50 kA | 200 kA | 700 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1250A-1S-230SPD TYP 2/TYP 4 275V MCOV 1 POLE |
100 |
|
规格书 |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 1 | 275V | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1250A-1S-400SPD TYP 2/TYP 4 420V MCOV 1 POLE |
2,617 |
|
规格书 |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 1 | 420V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2520-4L2-24SPD 33VDC MCOV 1 POLE |
1,558 |
|
规格书 |
2520 | Box | Active | - | Base + Module | 1 | 33VDC | 10 kA | 20 kA | - | - | 55 V | -40°C ~ 85°C | - | DIN Rail | - |
