购物车浪涌保护设备（SPDs）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 形式 | 极数 | 电压 - 连续工作（最大值）（MCOV） | 电流 - 放电（标称值）（8/20µS） | 电流 - 放电（最大值）（8/20µS） | 工作温度 | 电压 - 保护额定值（VPR） | 电压 - 保护水平（VP）（2416） | 工作温度 | 特性 | 安装类型 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1270-4S-400SPD TYPE 1/TYPE 2 440VAC MCOV |
3,259 |
|
规格书 |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 440VAC | 25 kA | 65 kA | 50 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2736350000SPD TYPE 2 300VAC MCOV 1 POLE |
4,515 |
|
规格书 |
- | Bulk | Active | Type 2 | - | 1 | 300VAC | 40 kA | 65 kA | 150 kA | 1 kV | 1.5 kV | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
1430-PV-1000-YSPD TYPE 1/TYPE 2 1.12KVDC MCOV |
2,112 |
|
规格书 |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 1.12kVDC | 25 kA | 80 kA | 25 kA | - | 3.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-800-YSPD TYPE 1/TYPE 2 920VDC MCOV |
4,905 |
|
规格书 |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 920VDC | 25 kA | 80 kA | 25 kA | - | 3 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1250A-2S-600SPD TYP 2/TYP 4 690V MCOV 2 POLE |
4,014 |
|
规格书 |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 690V | 20 kA | 40 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

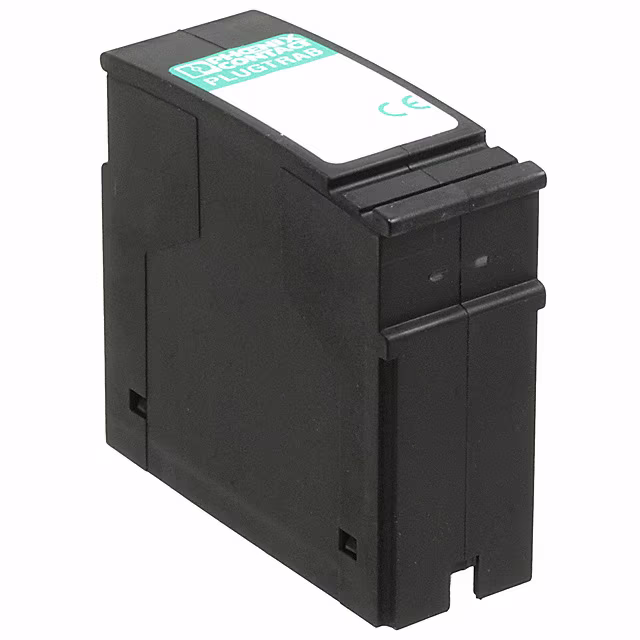

2856058SPD 28VAC/40VDC MCOV 1 POLE |
1,206 |
|
规格书 |
- | Bulk | Active | - | Base + Module | 1 | 28VAC, 40VDC | 10 kA | 10 kA | - | - | 80 V | -40°C ~ 85°C | - | DIN Rail | CCC, cUL, EAC, UKCA, UL |
|
|
2905641SPD TYPE 1/TYPE 2 1.5KVDC MCOV |
4,381 |
|
规格书 |
VAL | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1.5kVDC | 20 kA | 40 kA | - | - | 4.5 kV | -40°C ~ 80°C | - | DIN Rail | CB |
|
|
1430-PV-1500-YSPD TYPE 1/TYPE 2 1.5KVDC MCOV |
4,735 |
|
规格书 |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 1.5kVDC | 25 kA | 80 kA | 25 kA | - | 4.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
SPDN-D120-1PSPD TYPE 1 180V MCOV 1 POLE |
3,625 |
|
规格书 |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 180V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-D240-1PSPD TYPE 1 350V MCOV 1 POLE |
3,982 |
|
规格书 |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 50 kA | 200 kA | 2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
1260-2NSMG-230SPD 275VAC MCOV 1 POLE |
4,526 |
|
规格书 |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-3S-400SPD TYP 2/TYP 4 420V MCOV 3 POLE |
2,462 |
|
规格书 |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 3 | 420V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1420A-PV-1500-YSPD TYPE 2/TYPE 4 1.5KV MCOV |
2,595 |
|
规格书 |
1420A | Box | Active | Type 2, Type 4 | Base + Module | - | 1.5kV | 20 kA | 50 kA | 50 kA | 4 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2800786SPD 10VAC/15VDC MCOV 1 POLE |
4,034 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 145 V | -40°C ~ 70°C | - | DIN Rail | UL |
|

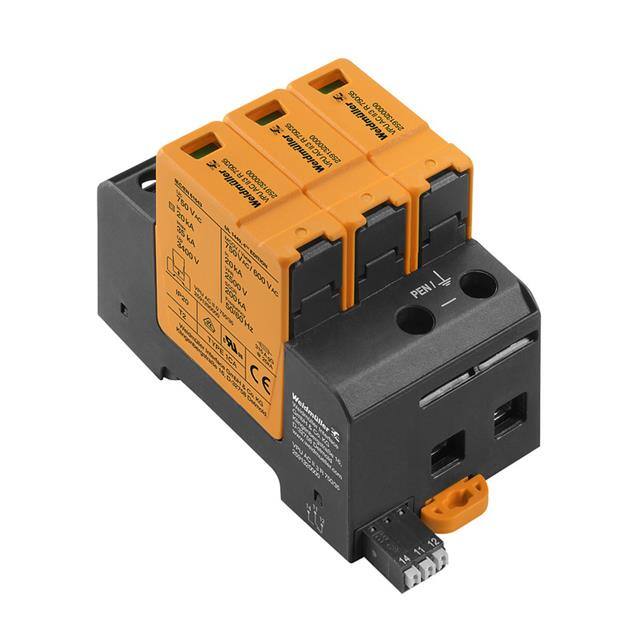

2591320000SPD TYPE 1 750VAC MCOV 3 POLE |
3,223 |
|
规格书 |
VPU | Bulk | Active | Type 1 | Base + Module | 3 | 750VAC | 20 kA | 35 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, EAC, VDE |
|
|
1270-4S-480SPD TYPE 1/TYPE 2 600VAC MCOV |
4,861 |
|
规格书 |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 600VAC | 25 kA | 65 kA | 50 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2800995SPD 10VAC/15VDC MCOV 1 POLE |
4,908 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 900 V | -40°C ~ 70°C | - | DIN Rail | UL |
|
|
2801288SPD 10VAC/15VDC MCOV 1 POLE |
3,016 |
|
规格书 |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 145 V | -40°C ~ 70°C | - | DIN Rail | EAC, UL |
|
|
1270-4NS-230SPD TYPE 1/TYPE 2 275VAC MCOV |
1,530 |
|
规格书 |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 275VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
SPDN-D240-2SSPD TYPE 1 350V MCOV 1 POLE |
4,412 |
|
规格书 |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 50 kA | 200 kA | 2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
