| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP3T2B3M64QEHSWITCH TOGGLE SPDT 5A 120V |
1,304 |
|
规格书 |
100 | Tray | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP33B1M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,667 |
|
规格书 |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ADP45B1M1QTSWITCH TOGGLE DPDT 5A 125V |
4,424 |
|
规格书 |
34A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 21.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ASP48T7M2QTSWITCH TOGGLE SPDT 5A 125V |
1,117 |
|
规格书 |
34A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
1531A2L12SWITCH TOGGLE SPST 10A 125V |
3,317 |
|
规格书 |
1500 | Tray | Obsolete | Panel Mount | SPST | On-Off | 10A (AC), 5A (DC) | 125 V | 12 V | Standard Round | 15.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
4146A22SWITCH TOGGLE DPDT 6A 125V |
4,232 |
|
- |
4100 | Tray | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Flatted | 13.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
A13JW/3SWITCH TOGGLE SPDT 0.4VA 28V |
2,209 |
|
规格书 |
A | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
M2011S2D1G01SWITCH TOGGLE SPST 0.4VA 28V |
1,350 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011S2D3G03SWITCH TOGGLE SPST 0.4VA 28V |
3,124 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011S2S1A01SWITCH TOGGLE SPST 6A 125V |
2,569 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011SD3W01-BASWITCH TOGGLE SPST 6A 125V |
2,475 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Cap | -30°C ~ 85°C |
|
|
M2011SD3W01-CBSWITCH TOGGLE SPST 6A 125V |
3,668 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | White Cap | -30°C ~ 85°C |
|
|
M2011SD3W01-CCSWITCH TOGGLE SPST 6A 125V |
1,916 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Red Cap | -30°C ~ 85°C |
|

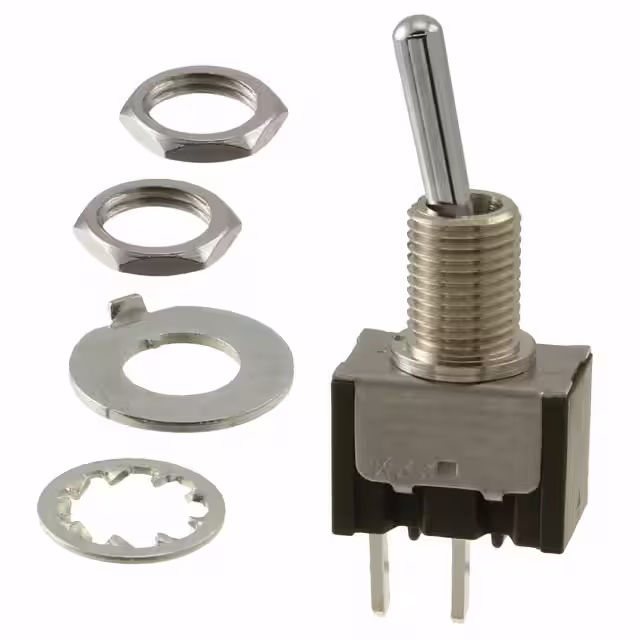

M2011SS1W02SWITCH TOGGLE SPST 6A 125V |
1,578 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011SS1W02-BESWITCH TOGGLE SPST 6A 125V |
1,142 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Yellow Cap | -30°C ~ 85°C |
|
|
M2011SS1W02-BGSWITCH TOGGLE SPST 6A 125V |
3,975 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Blue Cap | -30°C ~ 85°C |
|
|
M2011SS4W01SWITCH TOGGLE SPST 6A 125V |
3,449 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012E2A2W13SWITCH TOGGLE SPDT 6A 125V |
4,320 |
|
规格书 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 8.28mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012E4S2W13SWITCH TOGGLE SPDT 6A 125V |
2,256 |
|
规格书 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 21.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012ED1A01SWITCH TOGGLE SPDT 6A 125V |
1,319 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
