购物车拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012SA2W40SWITCH TOGGLE SPDT 6A 125V |
2,595 |
|
规格书 |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SD8ZQESWITCH TOGGLE SPDT 5A 120V |
168 |
|
规格书 |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3920BAAAASWITCH TOGGLE SPDT 20A 250V |
184 |
|
规格书 |
3900 | - | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
34ASP11B4V3RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,666 |
|
规格书 |
34A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
TA2-1G-DC-1-OSWITCH TOGGLE SPDT 20A 125V |
409 |
|
规格书 |
TA2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
4-1825137-8SWITCH TOGGLE SPDT 5A 120V |
1,545 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flatted | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

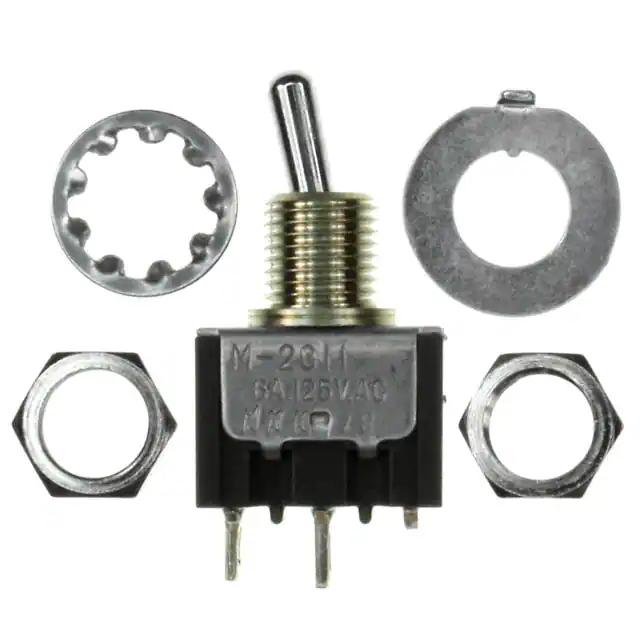

M2011S2A1W01SWITCH TOGGLE SPST 6A 125V |
3,729 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T7B13M1QEHSWITCH TOGGLE DPDT 5A 120V |
413 |
|
规格书 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825138-6SWITCH TOGGLE DPDT 0.4VA 20V |
1,009 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals, Splashproof Bushing Seal | -30°C ~ 85°C |
|
|
5-1825136-4SWITCH TOGGLE SPDT 5A 120V |
4,858 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
3-1825138-7SWITCH TOGGLE DPDT 5A 120V |
4,265 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1F-DC-6-OSWITCH TOGGLE SPDT 20A 125V |
482 |
|
规格书 |
TA2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
M2015SS1W03SWITCH TOGGLE SPDT 6A 125V |
1,749 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012S2A1W01SWITCH TOGGLE SPDT 6A 125V |
185 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825136-6SWITCH TOGGLE SPDT 0.4VA 20V |
2,950 |
|
规格书 |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 12.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1G-DC-6-OSWITCH TOGGLE SPDT 20A 125V |
390 |
|
规格书 |
TA2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
|
34ASP55B3W3RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,507 |
|
规格书 |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 23.10mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

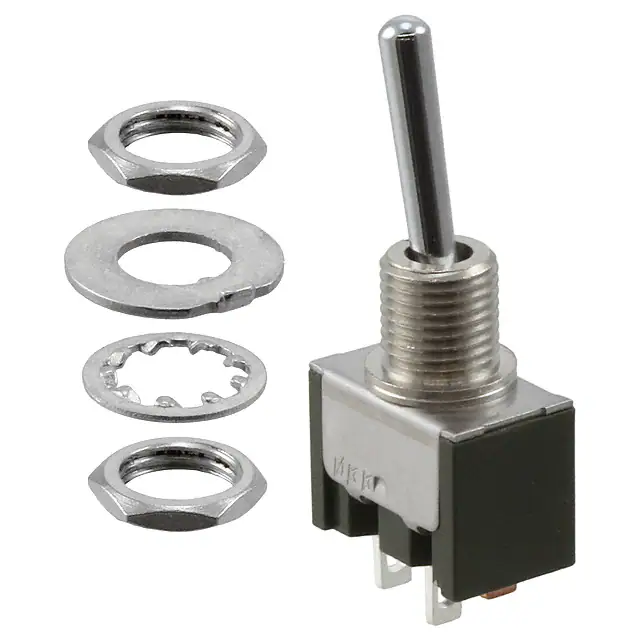

M2011SA1W01SWITCH TOGGLE SPST 6A 125V |
151 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1W30SWITCH TOGGLE SPDT 6A 125V |
4,682 |
|
规格书 |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825138-1SWITCH TOGGLE DPDT 0.4VA 20V |
4,891 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.51mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
