| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7108SYZBESWITCH TOGGLE SPDT 0.4VA 20V |
211 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

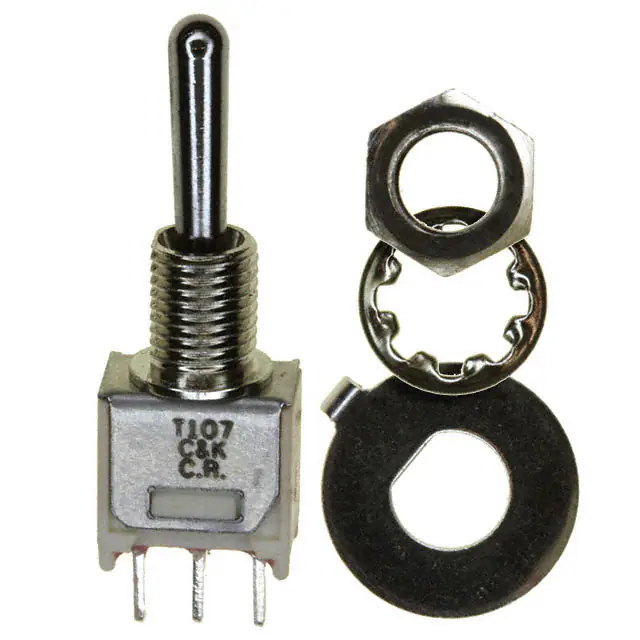

T107SHCQESWITCH TOGGLE SPDT 2A 120V |
1,664 |
|
规格书 |
T | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

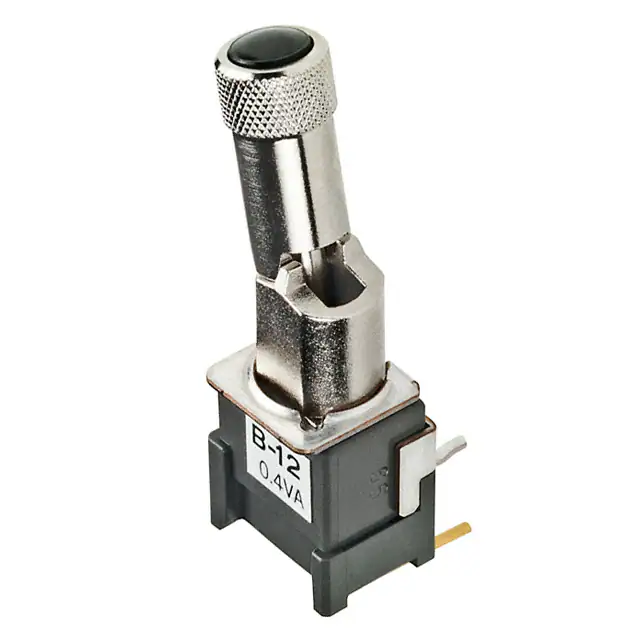

B12LHSWITCH TOGGLE SPDT 0.4VA 28V |
431 |
|
规格书 |
B | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 12.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

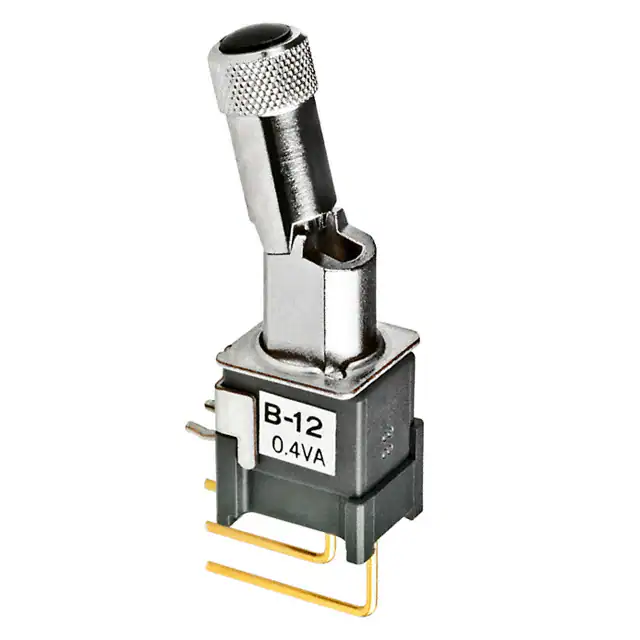

B12LVSWITCH TOGGLE SPDT 0.4VA 28V |
415 |
|
规格书 |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 12.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B13LBSWITCH TOGGLE SPDT 0.4VA 28V |
102 |
|
规格书 |
B | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 12.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3920BASWITCH TOGGLE SPDT 16A 125V |
211 |
|
规格书 |
3900 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
G13JPCFSWITCH TOGGLE SPDT 0.4VA 28V |
138 |
|
规格书 |
G | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
CA201-73SWITCH TOGGLE SPST 20A 125V |
110 |
|
规格书 |
C | Box | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
A24JPSWITCH TOGGLE SP3T 0.4VA 28V |
163 |
|
规格书 |
A | Tray | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

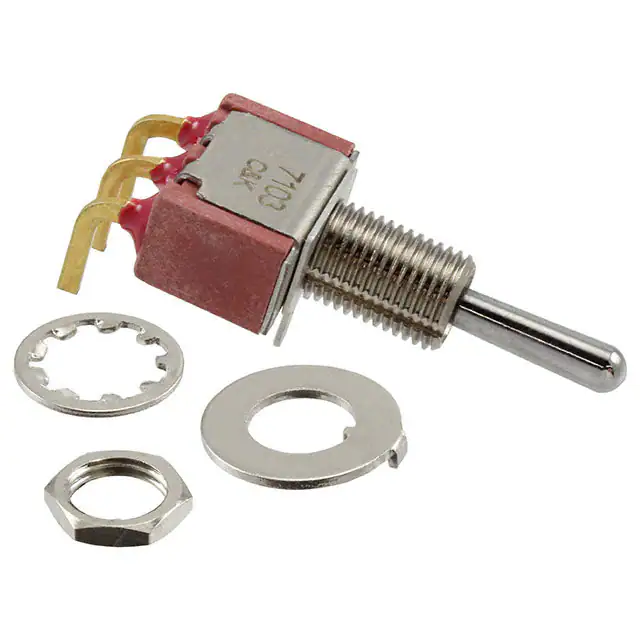

7103SYABESWITCH TOGGLE SPDT 0.4VA 20V |
110 |
|
规格书 |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SHZQESWITCH TOGGLE SPDT 5A 120V |
149 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5246CDBSWITCH TOGGLE DPDT 0.4VA 20V |
126 |
|
规格书 |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

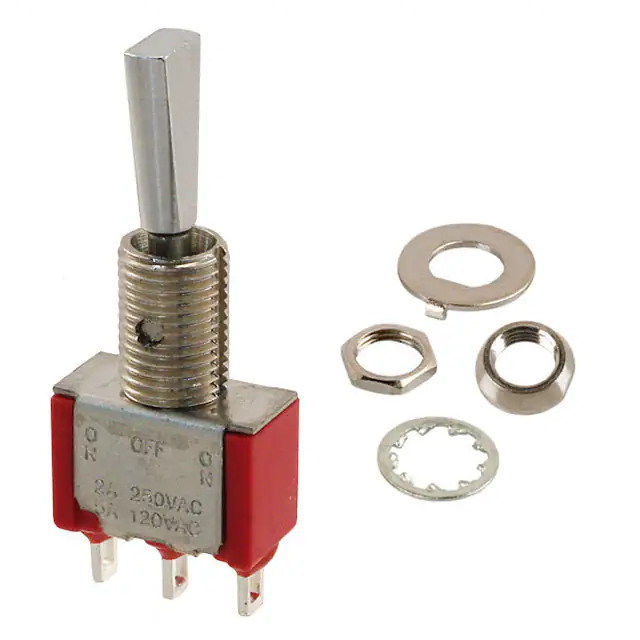

7107P3YZQESWITCH TOGGLE SPDT 5A 120V |
390 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SYW3BESWITCH TOGGLE SPDT 0.4VA 20V |
114 |
|
规格书 |
7000 | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

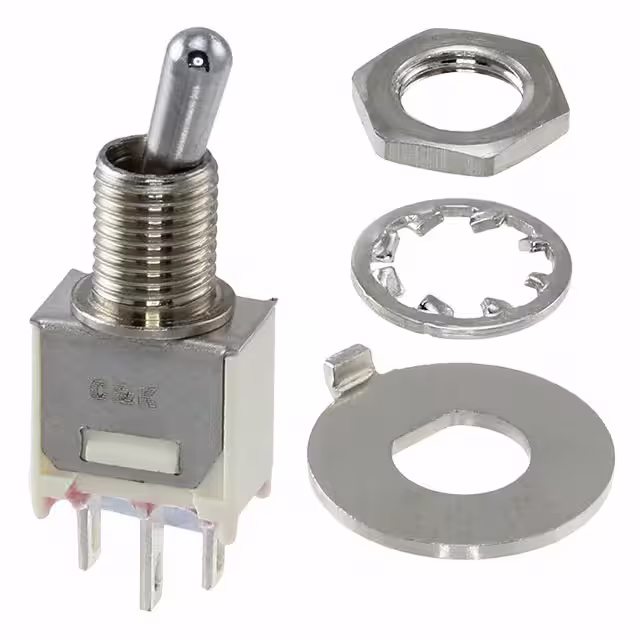

T101MHZQESWITCH TOGGLE SPDT 3A 120V |
1,019 |
|
规格书 |
T | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E105SD1CBESWITCH TOGGLE SPDT 0.4VA 20V |
273 |
|
规格书 |
E | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SHZQESWITCH TOGGLE SPDT 5A 120V |
105 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET07MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
175 |
|
规格书 |
ET | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B13A1PSWITCH TOGGLE SPDT 0.4VA 28V |
127 |
|
规格书 |
B | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 8.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.00mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

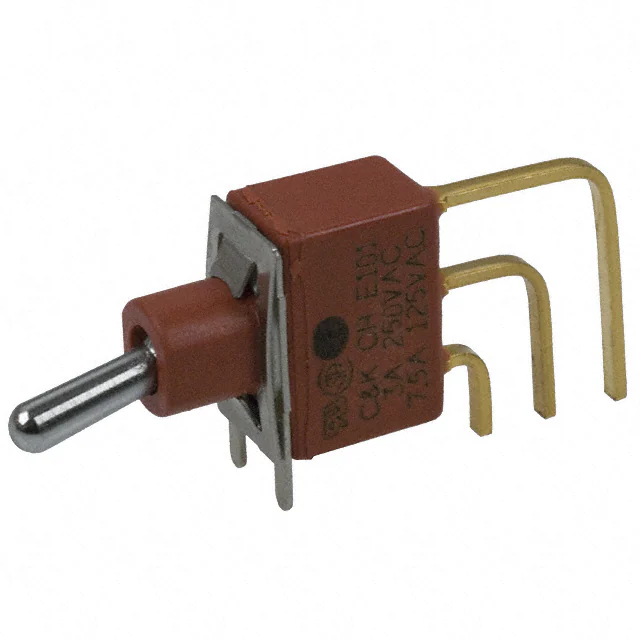

E101MD1AV2GESWITCH TOGGLE SPDT 7.5A 125V |
717 |
|
规格书 |
E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
