| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

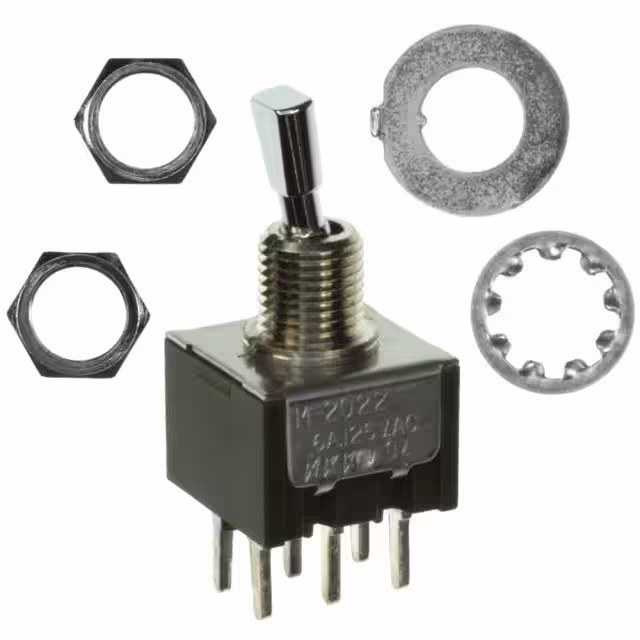

M2022E2A1W03SWITCH TOGGLE DPDT 6A 125V |
2,647 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 6.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS447H101HRSWITCH TOGGLE SPDT 16A 277V |
3,968 |
|
规格书 |
GTS447 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 16A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
34BWDP11B1M2RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,898 |
|
规格书 |
34B | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B2VS2QESWITCH TOGGLE DPDT 5A 120V |
1,585 |
|
规格书 |
100 | Tray | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T2B5M6RESWITCH TOGGLE SPDT 0.4VA 20V |
2,234 |
|
规格书 |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T2B5M6REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,417 |
|
规格书 |
200 | Tray | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2T15S4A5G03SWITCH TOGGLE SPDT 0.4VA 28V |
3,380 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
200MDP1T2B1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
3,652 |
|
规格书 |
200 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T2B3M7QESWITCH TOGGLE SPDT 3A 120V |
3,120 |
|
规格书 |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T5B1M7QEHSWITCH TOGGLE DPDT 3A 120V |
3,646 |
|
规格书 |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.88mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B1M51CESWITCH TOGGLE DPDT 5A 120V |
3,870 |
|
规格书 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

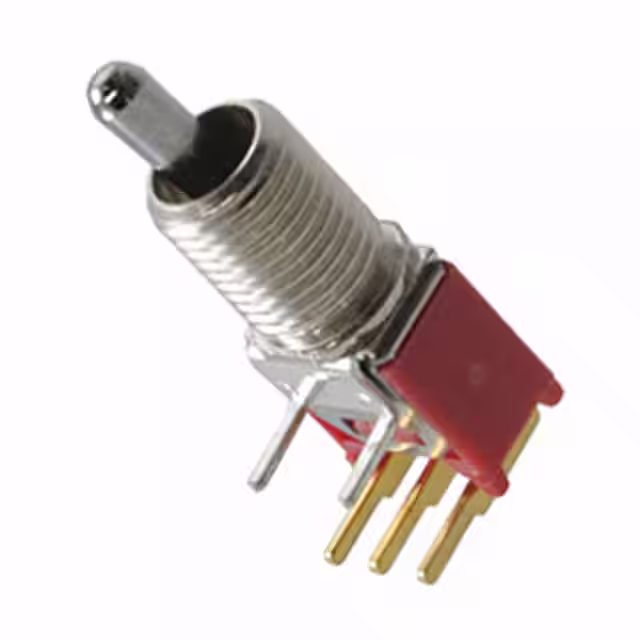

200MSP1T3B5M6RESWITCH TOGGLE SPDT 0.4VA 20V |
3,414 |
|
规格书 |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 4.68mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1571923-4SWITCH TOGGLE SPDT 6A 125V |
4,459 |
|
规格书 |
MTB Green | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 15.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
A101SYWQSWITCH TOGGLE SPDT 5A 120V |
3,055 |
|
规格书 |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
100DP4T7B13M2QESWITCH TOGGLE DPDT 5A 120V |
4,898 |
|
规格书 |
100 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B11M7QESWITCH TOGGLE DPDT 5A 120V |
2,327 |
|
规格书 |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

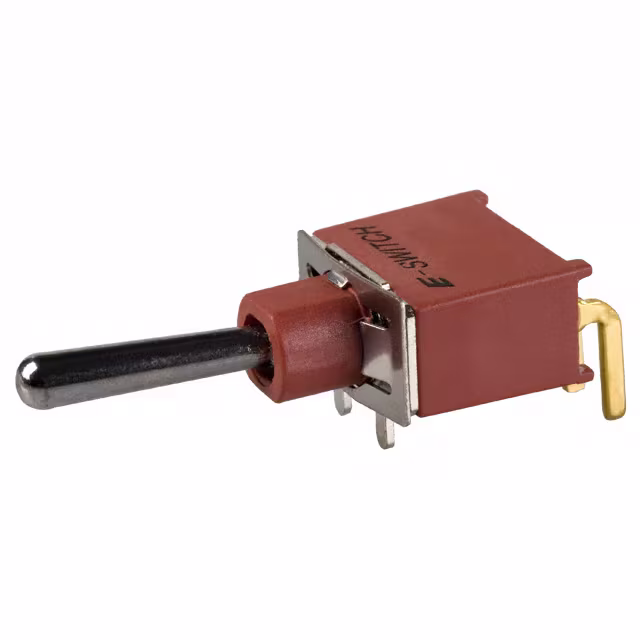

100AWSP1T1B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
3,940 |
|
规格书 |
100A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T1B2M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,718 |
|
规格书 |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825138-6SWITCH TOGGLE DPDT 5A 120V |
1,770 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T6B11M3RESWITCH TOGGLE SPDT 0.4VA 20V |
4,698 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
