BOM
购物车拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
646HSWITCH TOGGLE DPDT 15A 250V |
213 |
|
规格书 |
600H | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

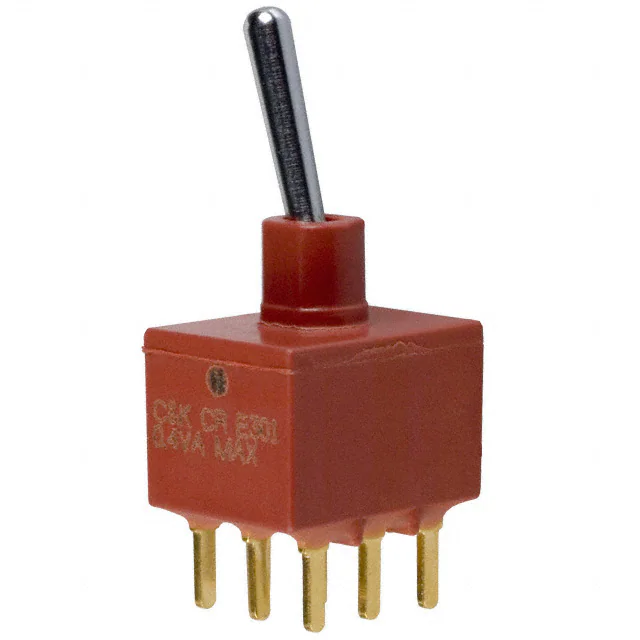

E301SD1CBESWITCH TOGGLE 3PDT 0.4VA 20V |
168 |
|
规格书 |
E | Tray | Active | Through Hole | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2NT91-2SWITCH TOGGLE DPST 15A 125V |
1,019 |
|
规格书 |
NT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
7203P3Y9V7GESWITCH TOGGLE DPDT 5A 120V |
984 |
|
规格书 |
7000 | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

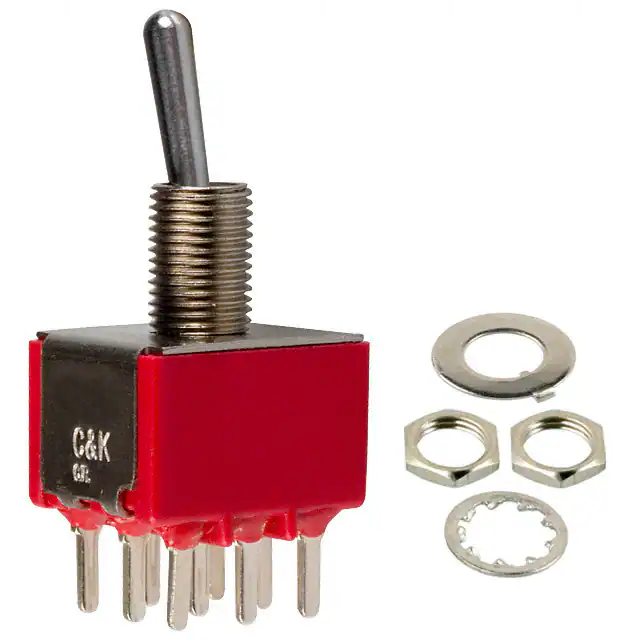

7301SYCQESWITCH TOGGLE 3PDT 5A 120V |
184 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S339TSWITCH TOGGLE DPDT 15A 125V |
129 |
|
规格书 |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
MTL106DSWITCH TOGGLE SPDT 6A 125V |
151 |
|
规格书 |
MTL Green | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
55018SWITCH TOGGLE DPDT 25A 12V |
316 |
|
规格书 |
- | Bulk | Active | Panel Mount | DPDT | On-On | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
WT18TSWITCH TOGGLE SPDT 10A 125V |
3,831 |
|
规格书 |
WT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
644H/2SWITCH TOGGLE DPDT 10A 250V |
268 |
|
规格书 |
600H | Bulk | Active | Panel Mount | DPDT | On-On-On | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Jumper needed to achieve triple throw | -20°C ~ 55°C |
|
LT-2561-601-012SWITCH TOGGLE DPDT 15A 125V |
375 |
|
规格书 |
LT | Box | Active | Panel Mount | DPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
.jpg)
|
S42SWITCH TOGGLE 4PDT 20A 125V |
327 |
|
规格书 |
S | Bulk | Active | Panel Mount | 4PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
11136ASWITCH TOGGLE SPDT 4A 125V |
353 |
|
规格书 |
11000 | Bulk | Active | Panel Mount | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
MNL12TCFW01SWITCH TOGGLE |
177 |
|
规格书 |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -10°C ~ 55°C |
|
55020-04SWITCH TOGGLE SPST-NO 25A 12V |
119 |
|
规格书 |
- | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
HM254-73SWITCH TOGGLE 3PDT 15A 125V |
123 |
|
规格书 |
H | Box | Active | Panel Mount | 3PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

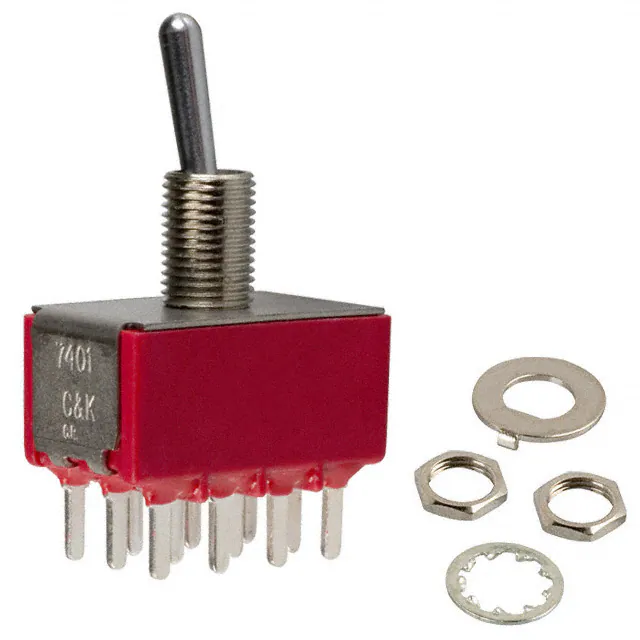

7401SYCQESWITCH TOGGLE 4PDT 5A 120V |
104 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S1AWBSWITCH TOGGLE SPST 15A 125V |
3,928 |
|
规格书 |
S | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP68 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 70°C |
|
S43FSWITCH TOGGLE 4PDT 20A 125V |
307 |
|
规格书 |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
3636NF/2SWITCH TOGGLE SPDT 6A 125V |
274 |
|
规格书 |
3600NF | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
