| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GK51-73SWITCH TOGGLE DPST 15A 125V |
2,059 |
|
规格书 |
G | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
631H/2SWITCH TOGGLE SPST 15A 250V |
280 |
|
规格书 |
600H | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
7103MD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
243 |
|
规格书 |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

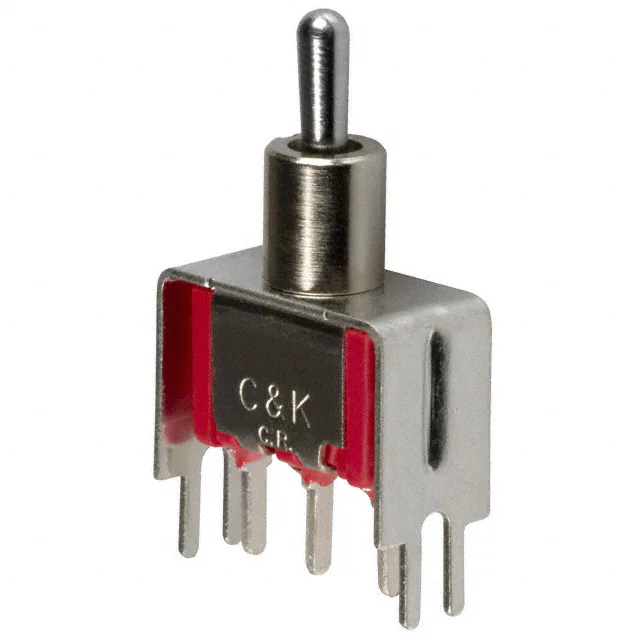

7101MD9V3QESWITCH TOGGLE SPDT 5A 120V |
106 |
|
规格书 |
7000 | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3950BASWITCH TOGGLE DPST 20A 125V |
1,861 |
|
规格书 |
3900 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|

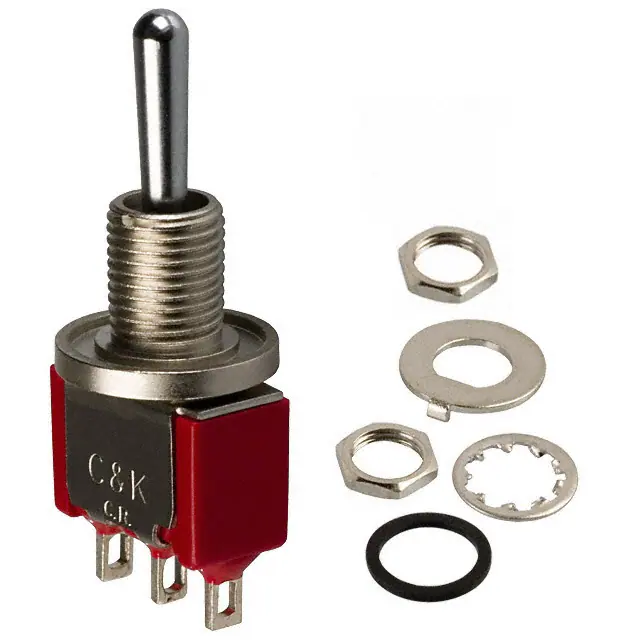

7101SCWZQESWITCH TOGGLE SPDT 5A 120V |
142 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MCWCQESWITCH TOGGLE SPDT 5A 120V |
111 |
|
规格书 |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2GM50-73SWITCH TOGGLE DPDT 15A 125V |
261 |
|
规格书 |
G | Box | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
C3901BASWITCH TOGGLE SPST-NO 16A 125V |
841 |
|
规格书 |
3900 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
7107SYZQESWITCH TOGGLE SPDT 5A 120V |
1,132 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MD9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
152 |
|
规格书 |
7000 | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

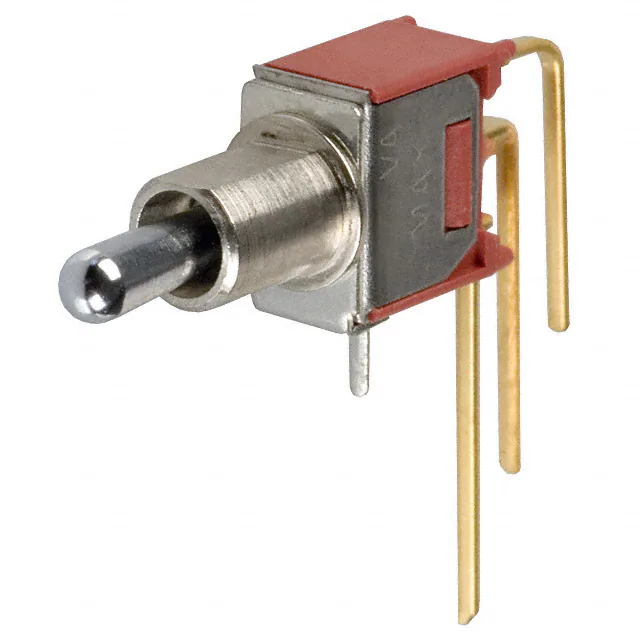

T101MH9AVBESWITCH TOGGLE SPDT 0.4VA 20V |
703 |
|
规格书 |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN11LL3W03SWITCH TOGGLE |
216 |
|
规格书 |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
7107SYCQESWITCH TOGGLE SPDT 5A 120V |
180 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
636H/2SWITCH TOGGLE SPDT 15A 250V |
166 |
|
规格书 |
600H | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
E105MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
160 |
|
规格书 |
E | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S32SWITCH TOGGLE 3PDT 20A 125V |
2,041 |
|
规格书 |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7101P3YZBESWITCH TOGGLE SPDT 0.4VA 20V |
209 |
|
规格书 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S331SWITCH TOGGLE DPST 20A 125V |
569 |
|
规格书 |
S300 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
639H/2SWITCH TOGGLE SPDT 10A 250V |
290 |
|
规格书 |
600H | Bulk | Active | Panel Mount | SPDT | On-Off-On | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
