购物车拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2NT91-5SWITCH TOGGLE DPDT 10A 125V |
3,197 |
|
规格书 |
NT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
AML25FBF2AA02GXSWITCH TOGGLE SPDT 3A 125V |
3,031 |
|
规格书 |
AML25 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
62NT1-1-NHSWITCH TOGGLE DPDT 15A 125V |
4,563 |
|
- |
NT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
61NT1-8-NHSWITCH TOGGLE SPDT 10A 125V |
4,722 |
|
规格书 |
NT | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
2MT2-1SWITCH TOGGLE DPDT 100MA 28V |
4,923 |
|
规格书 |
MT | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 100mA (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
M2047B2B1W01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
1,033 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2047B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
4,037 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2047B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
4,085 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2047B2B1W01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
3,314 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
649H/23VSWITCH TOGGLE DPDT 10A 250V |
4,057 |
|
规格书 |
600H | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 250 V | - | Locking Lever | 20.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
|

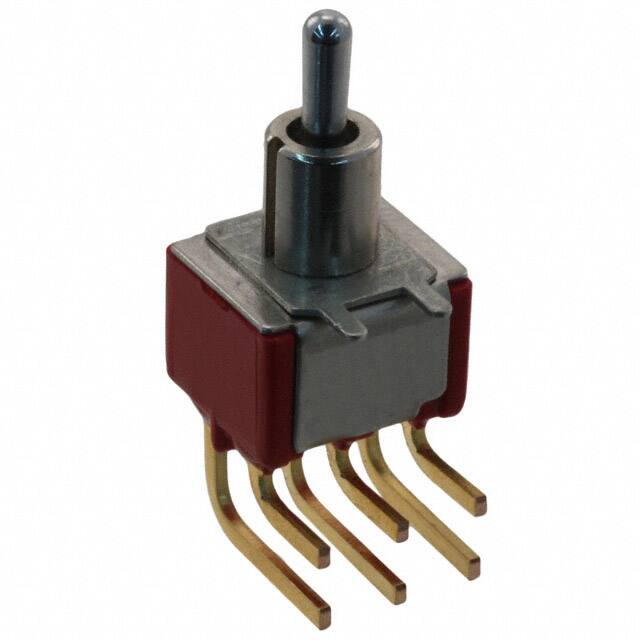

M83731/16-311SWITCH TOGGLE SPDT 5A 115V |
1,447 |
|
规格书 |
M83731 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
2TL1-51SWITCH TOGGLE DPDT 10A 125V |
3,469 |
|
规格书 |
TL | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TL1-3SWITCH TOGGLE SPDT 15A 125V |
4,002 |
|
规格书 |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TL1-2SWITCH TOGGLE SPST 15A 125V |
4,604 |
|
规格书 |
TL | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1NT1-8FSWITCH TOGGLE SPDT 10A 125V |
2,017 |
|
规格书 |
NT | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
1TL5-2SWITCH TOGGLE SPST 15A 125V |
3,271 |
|
规格书 |
TL | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
32NT91-70SWITCH TOGGLE DPDT 10A 125V |
1,305 |
|
规格书 |
NT | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
32NT91-2SWITCH TOGGLE DPST 15A 125V |
3,711 |
|
规格书 |
NT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

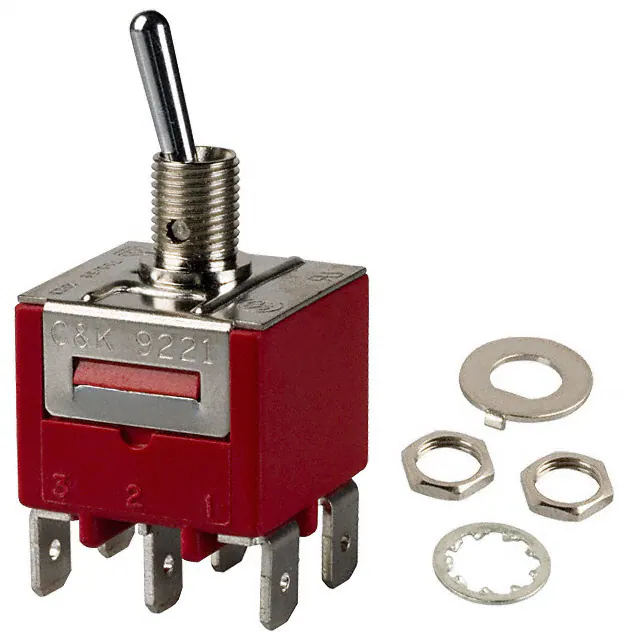

9221SH3Z4QDSWITCH TOGGLE DPDT 10A 125V |
1,272 |
|
规格书 |
9000 | Bulk | Active | Panel Mount | DPDT | On-On | 10A (AC/DC) | 125 V | 28 V | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
AML25GBF2AA01GRSWITCH TOGGLE SPDT 3A 125V |
1,640 |
|
规格书 |
AML25 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
