| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2024SS1G01/CULMINIATURE TOGGLE/MULTI-FUNCTION |
3,413 |
|
- |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2025B2B1W01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
4,754 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
5637AGSWITCH TOGGLE SPDT 6A 125V |
3,497 |
|
规格书 |
5000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Matte Black Finish | -40°C ~ 85°C |
|
|
M2015B2B1W01-AT4181SWITCH TOGGLE SPDT 6A 125V |
4,479 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2023B2B1W06-AT401ABUSHING MOUNT MINIATURE TOGGLE |
4,277 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2022SS2G30SWITCH TOGGLE DPDT 0.4VA 28V |
3,075 |
|
规格书 |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2015B2B1W03-AT4181BUSHING MOUNT MINIATURE TOGGLE |
4,309 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
S301T/UCSWITCH TOGGLE SPST 15A 125V |
4,941 |
|
规格书 |
S300 | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
M2023SS1G01-CBSWITCH TOGGLE DPDT 0.4VA 28V |
3,393 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | White Cap | -30°C ~ 85°C |
|
|
M2028LL1W01-ASWITCH TOGGLE DPDT 6A 125V |
2,428 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|

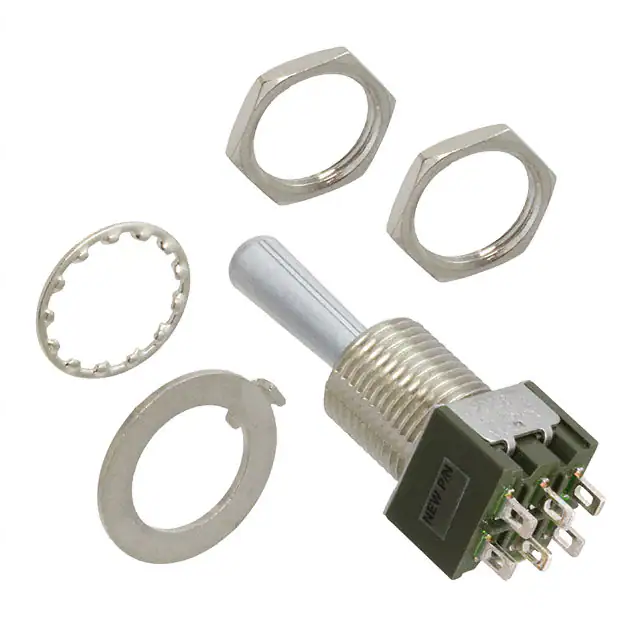

M2026B2B1W01SWITCH TOGGLE SP3T 6A 125V |
2,478 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

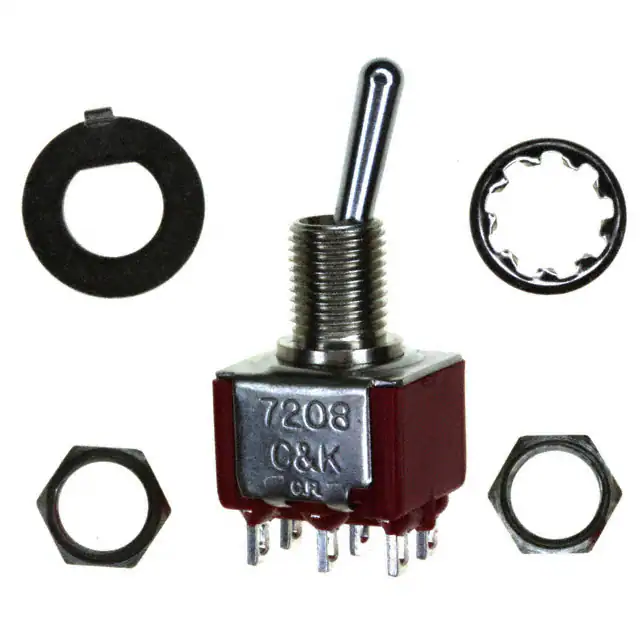

7208SHZQESWITCH TOGGLE DPDT 5A 120V |
3,044 |
|
规格书 |
7000 | Tray | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

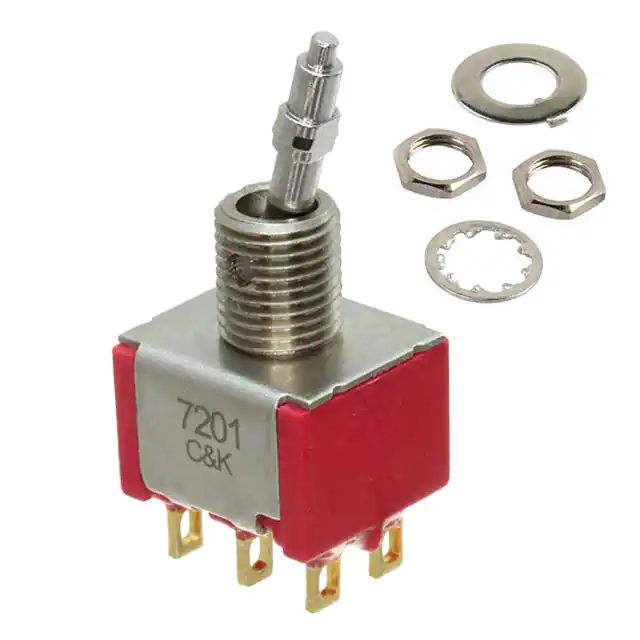

7201L40DZGESWITCH TOGGLE DPDT 5A 120V |
2,336 |
|
规格书 |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Lever for Cap | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SY246CD7SWITCH TOGGLE DPDT 0.4VA 20V |
4,567 |
|
规格书 |
S | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
M2029B2B1W01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
4,355 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2023Q2S1W01SWITCH TOGGLE DPDT 6A 125V |
2,401 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2012ZSWITCH TOGGLE SPDT 10A 125V |
1,304 |
|
规格书 |
P | Bulk | Obsolete | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 6.35mm Dia | M6 x 0.75 | - | White Cap | -10°C ~ 85°C |
|
P2023BZSWITCH TOGGLE DPDT 10A 125V |
2,826 |
|
规格书 |
P | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|
|
M2024BB1W03-AT402SSWITCH TOGGLE SP3T 6A 125V |
2,317 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2023B2B1W06-AT4181BUSHING MOUNT MINIATURE TOGGLE |
1,894 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
