购物车拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMD1T5B2M2RESWITCH TOGGLE DPDT 0.4VA 20V |
408 |
|
规格书 |
- | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
1-1825137-6SWITCH TOGGLE SPDT 5A 120V |
648 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP4T7B13M1QESWITCH TOGGLE SPDT 5A 120V |
231 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B4M7QESWITCH TOGGLE DPDT 5A 120V |
240 |
|
规格书 |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

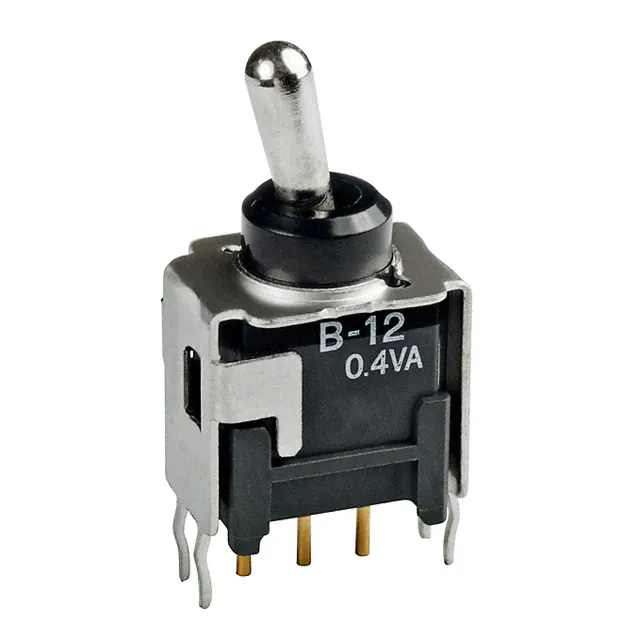

B12JBSWITCH TOGGLE SPDT 0.4VA 28V |
1,417 |
|
规格书 |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825138-5SWITCH TOGGLE DPDT 5A 120V |
169 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825137-0SWITCH TOGGLE SPDT 5A 120V |
560 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS448K101AHRSWITCH TOGGLE DPDT 12A 250V |
2,325 |
|
规格书 |
GTS448 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 12A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
1825139-9SWITCH TOGGLE DPDT 5A 120V |
477 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS447A101HRSWITCH TOGGLE SPST 20A 277V |
4,017 |
|
规格书 |
GTS447 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
ST14DD00SWITCH TOGGLE SPDT 20A 125V |
6,403 |
|
规格书 |
ST1 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
3-1825136-7SWITCH TOGGLE SPDT 5A 120V |
323 |
|
规格书 |
Gemini A | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMS1T5B2M7RESWITCH TOGGLE SPDT 0.4VA 20V |
155 |
|
规格书 |
- | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.48mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
ATE2D-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
990 |
|
规格书 |
ATE | Tray | Active | Through Hole | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
ATE2E-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
464 |
|
规格书 |
ATE | Tray | Active | Through Hole | DPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
GTS447C101HRSWITCH TOGGLE SPDT 20A 277V |
903 |
|
规格书 |
GTS447 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
100DP8T6B11M2QEHSWITCH TOGGLE SP3T 5A 120V |
714 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
GTS447N101HRSWITCH TOGGLE SPST-NO 16A 277V |
1,377 |
|
规格书 |
GTS447 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 16A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|

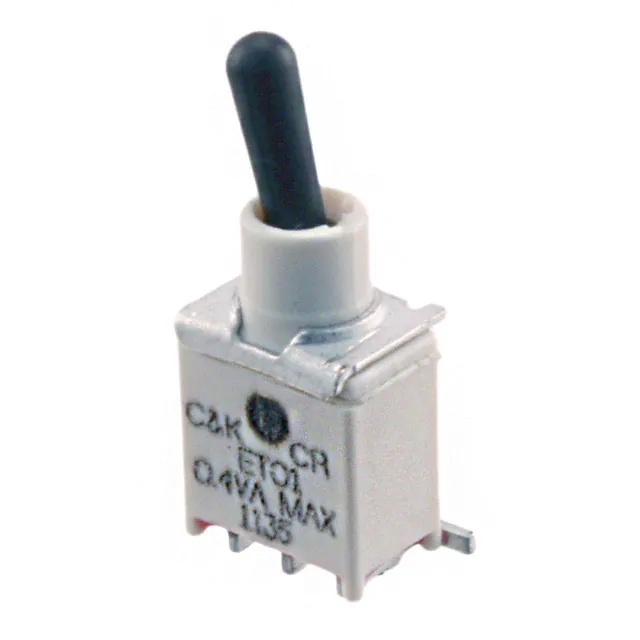

ET01M3D1SAPESWITCH TOGGLE SPDT 0.4VA 20V |
684 |
|
规格书 |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Black Antistatic Actuator | -30°C ~ 85°C |
|
2M1-SP1-T1-B1-M2QESWITCH TOGGLE SPDT 5A 125V |
1,286 |
|
规格书 |
2M | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
