| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B60-075-VEHEATSINK FOR TO-247 TO-264 |
2,059 |
|
规格书 |
B60 | Box | Obsolete | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.950" (74.93mm) | 2.530" (64.26mm) | - | 1.610" (40.89mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
ATS-H1-29-C1-R0HEATSINK 70X70X20MM XCUT |
4,316 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 7.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-134-C3-R0HEATSINK 70X70X15MM XCUT T412 |
2,403 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

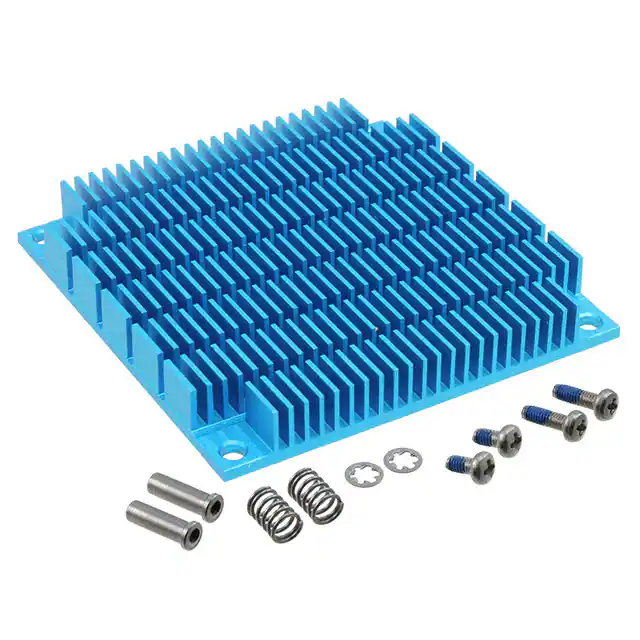

ATS-H1-26-C3-R0HEATSINK 70X70X10MM XCUT T412 |
2,067 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 14.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

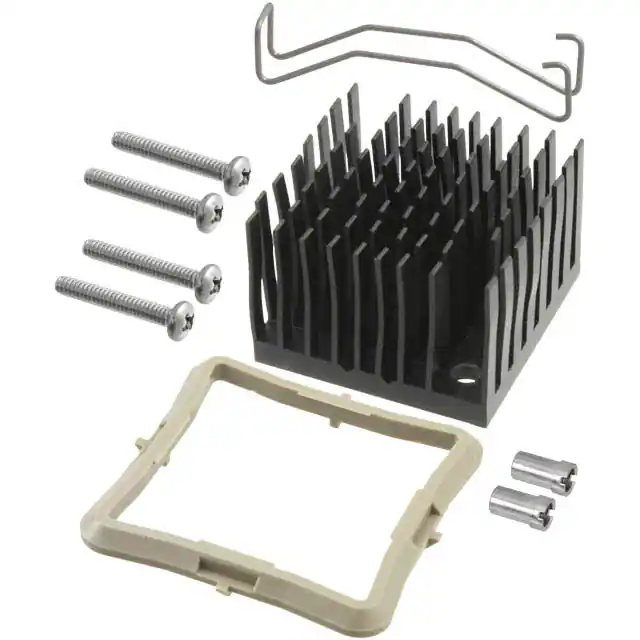

ATS-61350W-C1-R0MAXIGRIP FANSINK 35X35X24.5MM |
2,129 |
|
规格书 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.965" (24.50mm) | - | 1.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
4-1542003-025MM HS ASSY ULTEM CL |
3,442 |
|
规格书 |
- | Box | Obsolete | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.442" (11.23mm) | - | 5.99°C/W @ 200 LFM | 13.20°C/W | Aluminum | Black Anodized |
|
|
HSB45-383818HEAT SINK, BGA, 38.1 X 38.1 X 18 |
1,826 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.496" (38.00mm) | 1.496" (38.00mm) | - | 0.709" (18.00mm) | 7.5W @ 75°C | 2.90°C/W @ 200 LFM | 10.05°C/W | Copper | Clean Finished |
|
SKV38538514-CUCOPPER HEATSINK 38.5X37.6X14MM |
1,802 |
|
规格书 |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Rectangular, Fins | 1.480" (37.59mm) | 1.516" (38.50mm) | - | 0.551" (14.00mm) | - | 2.60°C/W @ 200 LFM | 15.90°C/W | Copper | - |
|
|
6110B-CNE42-MTGTHM,6110B-CNE42-MTG |
2,531 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
533501B12552GSTD,533501B12552G |
2,253 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

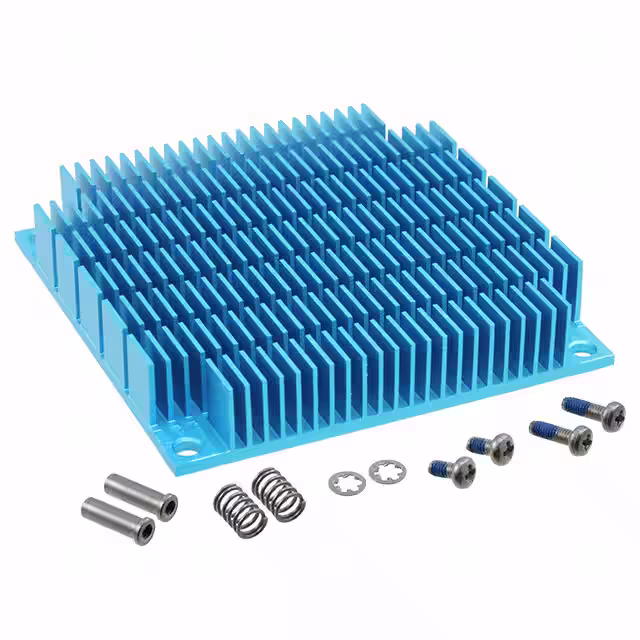

ATS-H1-27-C3-R0HEATSINK 70X70X12.7MM XCUT T412 |
2,671 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
1-1542005-121MM HS ASSY ULTEM CL |
1,597 |
|
规格书 |
- | Tray | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.375" (9.53mm) | - | 7.22°C/W @ 200 LFM | 13.40°C/W | Aluminum | Black Anodized |
|

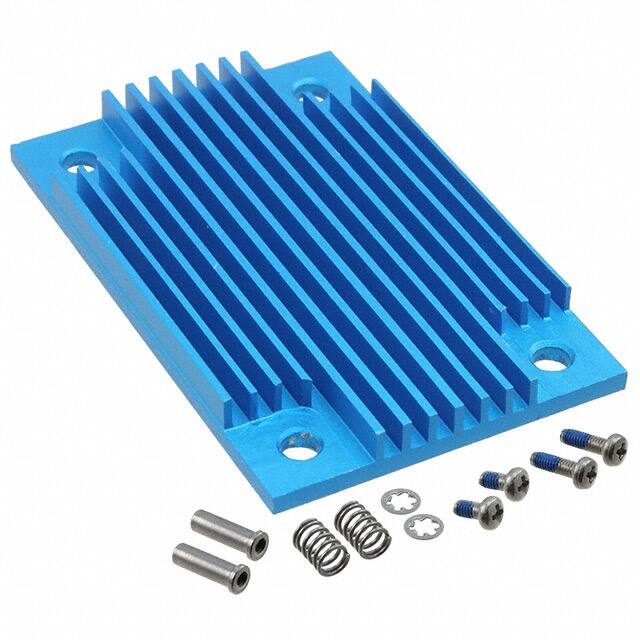

ATS-H1-31-C1-R0HEATSINK 57.9X36.83X5.84MM |
2,972 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.230" (5.84mm) | - | 25.23°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
2263RBOARD LEVEL HEAT SINK |
1,069 |
|
规格书 |
- | Bulk | Active | Top Mount | TO-5 | Bolt On | Cylindrical | - | - | 0.318" (8.07mm) ID, 0.750" (19.05mm) OD | 0.437" (11.10mm) | 1.6W @ 60°C | 10.00°C/W @ 600 LFM | - | Aluminum | Red Anodized |
|
|
ATS-H1-135-C3-R0HEATSINK 70X70X20MM XCUT T412 |
3,432 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 3.04°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

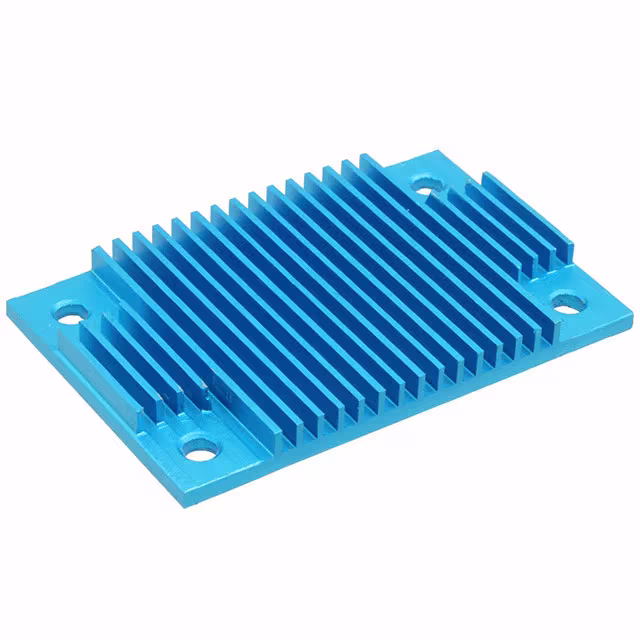

ATS-H1-35-C1-R0HEATSINK 36.83X57.6X5.84MM |
4,950 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
569000B00000GHEATSINK LED 10W BLK W/FINS |
1,457 |
|
规格书 |
- | Bulk | Active | Board Level | LED | Thermal Tape, Adhesive (Not Included) | Square | 1.830" (46.48mm) | 1.830" (46.48mm) | - | 1.310" (33.27mm) | 12.0W @ 60°C | 1.50°C/W @ 500 LFM | 5.50°C/W | Aluminum | Black Anodized |
|

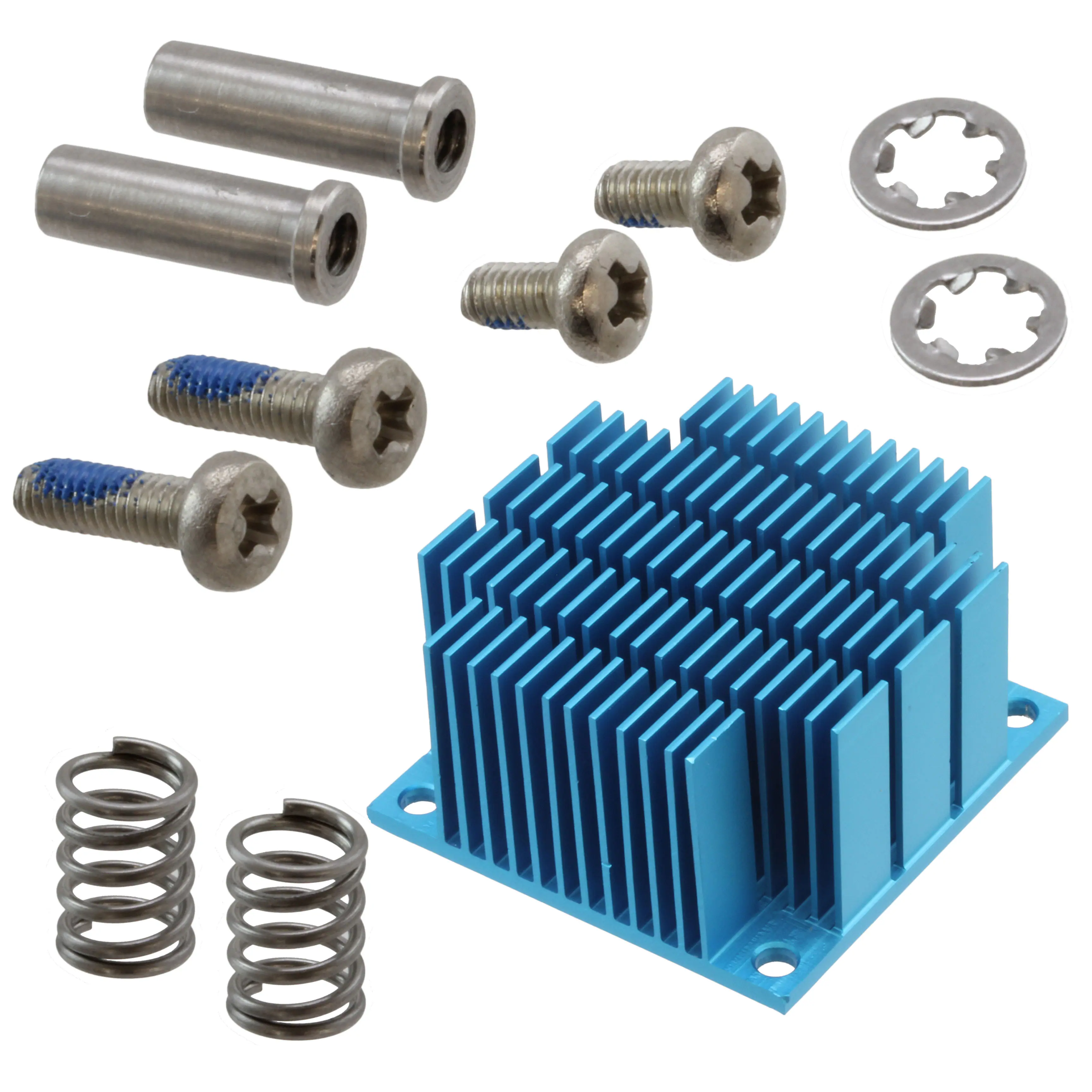

ATS-H1-72-C2-R0HEATSINK 45X45X35MM L-TAB T766 |
3,435 |
|
规格书 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
1542236-4SALEABLE PACKAGED VERSION. |
3,805 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6-1542001-7HS ASSY A-TEMP CLIP |
3,721 |
|
规格书 |
- | Box | Obsolete | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.357" (9.07mm) | - | 6.32°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
